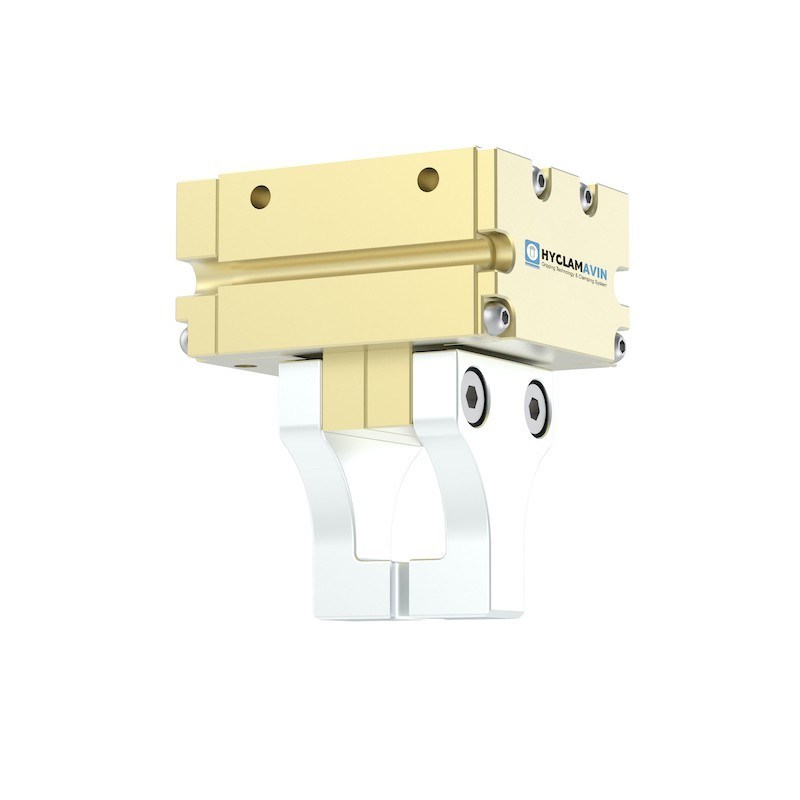

2 Jaw Pneumatic Gripper, Ecnomical TYPE TSC

2 Jaw Pneumatic Gripper, Ecnomical TYPE TSC
2 Jaw Pneumatic Gripper, Ecnomical TYPE TSC

Large Image :  2 Jaw Pneumatic Gripper, Ecnomical TYPE TSC

Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: unknown
Contact Now
Detailed Product Description
Model: TSC-25 Stroke Per Jaw [mm]: 2.5
Closing/ Opening Force[N]: 16/16 Weight [kg]: 0.05
Recommended Workpiece Weight[kg]: 0.08 Closing/ Opening Time[s]: 0.03/0.03
Repeat Accuracy [mm]: 0.02 Protection Class IP: 30
Model: TSC-40 Stroke Per Jaw [mm]: 4
Closing/ Opening Force[N]: 50/50 Weight [kg]: 0.14
Recommended Workpiece Weight[kg]: 0.25 Closing/ Opening Time[s]: 0.05/0.05
Model: TSC-75 Stroke Per Jaw [mm]: 7.5
Closing/ Opening Force[N]: 110/110 Weight [kg]: 0.20
Recommended Workpiece Weight[kg]: 0.55 Closing/ Opening Time[s]: 0.06/0.06
Model: TSC-100 Stroke Per Jaw [mm]: 10
Closing/ Opening Force[N]: 170/170 Weight [kg]: 0.33
Recommended Workpiece Weight[kg]: 0.85 Closing/ Opening Time[s]: 0.09/0.09
Model: TSC-120 Stroke Per Jaw [mm]: 12
Closing/ Opening Force[N]: 240/240 Weight [kg]: 0.53
Recommended Workpiece Weight[kg]: 1.2 Closing/ Opening Time[s]: 0.10/0.10
Model: TSC-150 Stroke Per Jaw [mm]: 15
Closing/ Opening Force[N]: 370/370 Weight [kg]: 0.92
Recommended Workpiece Weight[kg]: 1.85 Closing/ Opening Time[s]: 0.11/0.11

2 Jaw Pneumatic Gripper, Ecnomical TYPE TSC 0

2-Jaw Pneumatic Gripper (Economical Type)

This 2-jaw pneumatic gripper is designed for efficient and reliable part handling in various automation applications. Its lightweight yet robust construction ensures high performance and longevity.

Key Benefits:

  • Lightweight and Strong: Made of high-strength aluminum alloy.
  • Versatile: Available in six specifications for diverse applications.
  • Cost-Effective: High price-performance ratio.
  • Easy Integration: Features a magnetic switch interface.

Target Industries: Automation, Robotics, Manufacturing, Assembly Lines.

Typical Applications: Small part handling, pick and place operations.

Product Attributes

FOB Unit: piece
FOB Price: 0

Technical Specifications

Model Stroke per jaw [mm] Closing/ opening force[N] Weight [kg]
TSC-25 2.5 16/16 0.05
TSC-40 4 50/50 0.14
TSC-75 7.5 110/110 0.20
TSC-100 10 170/170 0.33
TSC-120 12 240/240 0.53
TSC-150 15 370/370 0.92
