Product Details:
Payment & Shipping Terms:
|
| Jaw Type: | 2-Jaw | Weight: | 0.5kg |
|---|---|---|---|
| Application: | Industrial Automation | Gripper Type: | Parallel |
| Mounting Type: | Direct Mount | Warranty: | 1 Year |
| Operating Pressure: | 0.5-0.7MPa | Maximum Jaw Opening: | 100mm |
| Actuation: | Pneumatic | Operating Temperature: | 0-80°C |
| Gripping Force: | 100N | Material: | Aluminum Alloy |
| Economical: | Yes | ||
| Highlight: | Robots Two Jaw Parallel Pneumatic Gripper,Industrial Two Jaw Parallel Pneumatic Gripper,Parallel Pneumatic Gripper Magnetic Switch |
||

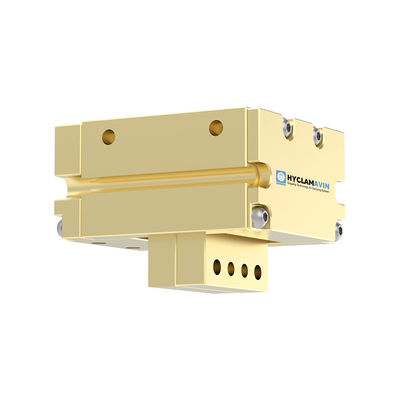

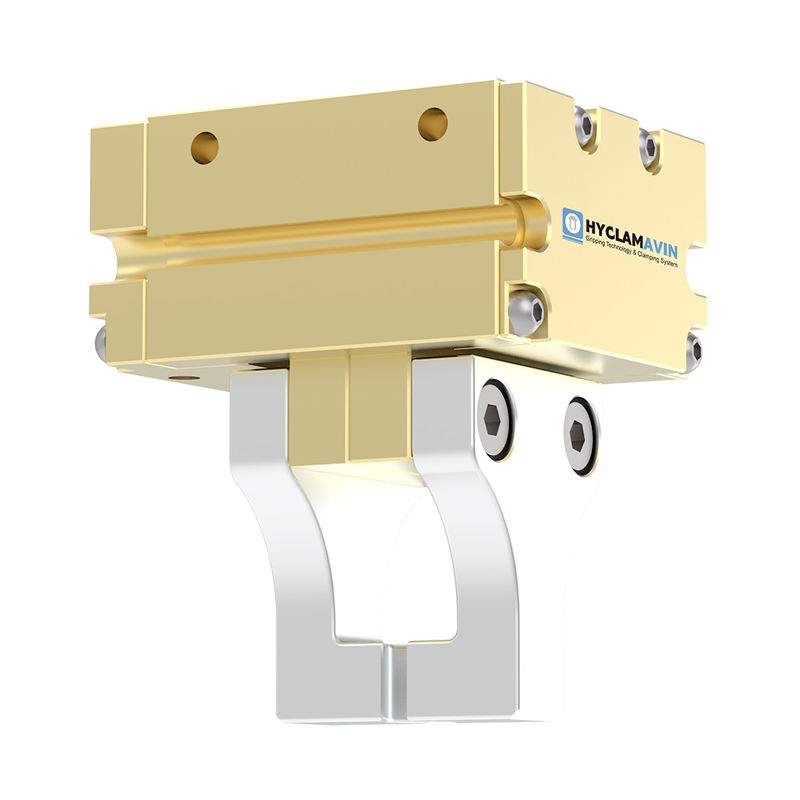

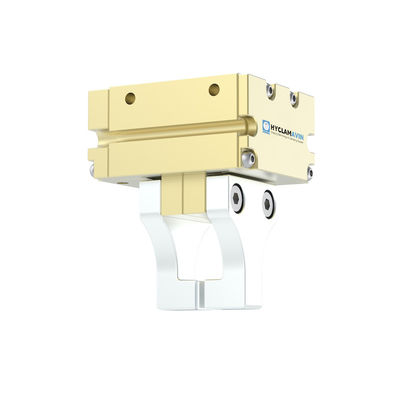

2-Jaw Pneumatic Parallel Economical Gripper TSC
TSC 2-Jaw Pneumatic Parallel Economical Gripper for Industrial Robots Lightweight and Strong Magnetic Switch Interface Multiple Installation Options Customizable Design Affordable
Product Information
Excellent performance

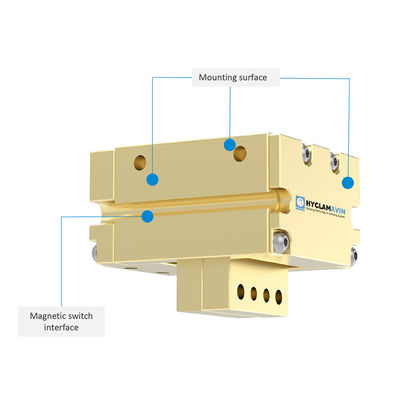

1. The TSC grippers feature a magnetic switch interface and provide various installation methods.
● Made of high-strength aluminum alloy, the body is both lightweight and durable
● Available in six specifications, it is highly suitable for handling small parts
● Offers excellent price-performance value
● Magnetic switch interface
● Flexible installation on three sides
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protecti on class IP |
| TSC-25 | 2.5 | 16/16 | 0.05 | 0.08 | 0.03/0.03 | 0.02 | 30 |
| TSC-40 | 4 | 50/50 | 0.14 | 0.25 | 0.05/0.05 | 0.02 | 30 |
| TSC-75 | 7.5 | 110/110 | 0.20 | 0.55 | 0.06/0.06 | 0.02 | 30 |
| TSC-100 | 10 | 170/170 | 0.33 | 0.85 | 0.09/0.09 | 0.02 | 30 |
| TSC-120 | 12 | 240/240 | 0.53 | 1.2 | 0.10/0.10 | 0.02 | 30 |
| TSC-150 | 15 | 370/370 | 0.92 | 1.85 | 0.11/0.11 | 0.02 | 30 |
Recommended accessories
