| Repeat Accuracy: | 0.02mm | Number Of Jaws: | 2 |
|---|---|---|---|
| Gripping Force: | High | Jaw Type: | Parallel |
| Special Features: | Economical | Actuation Type: | Pneumatic |
| Gripping Stroke: | Long | Minimum Jaw Opening: | 10mm |
| Application: | Industrial | Operating Pressure: | 0.5-0.7MPa |
| Operating Temperature: | 0-80°C | Warranty: | 1 Year |
| Material: | Steel | Weight: | 1.5kg |
| Highlight: | Pneumatic Parallel Two Jaw Gripper,Two Jaw Gripper TSC,TSC Pneumatic Parallel Gripper |
||

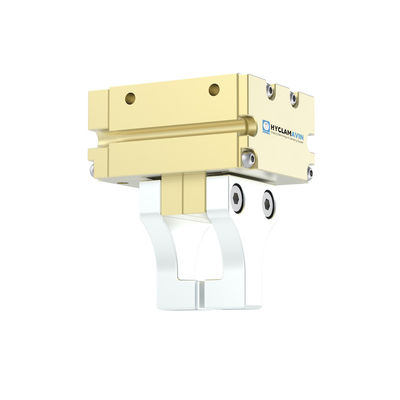

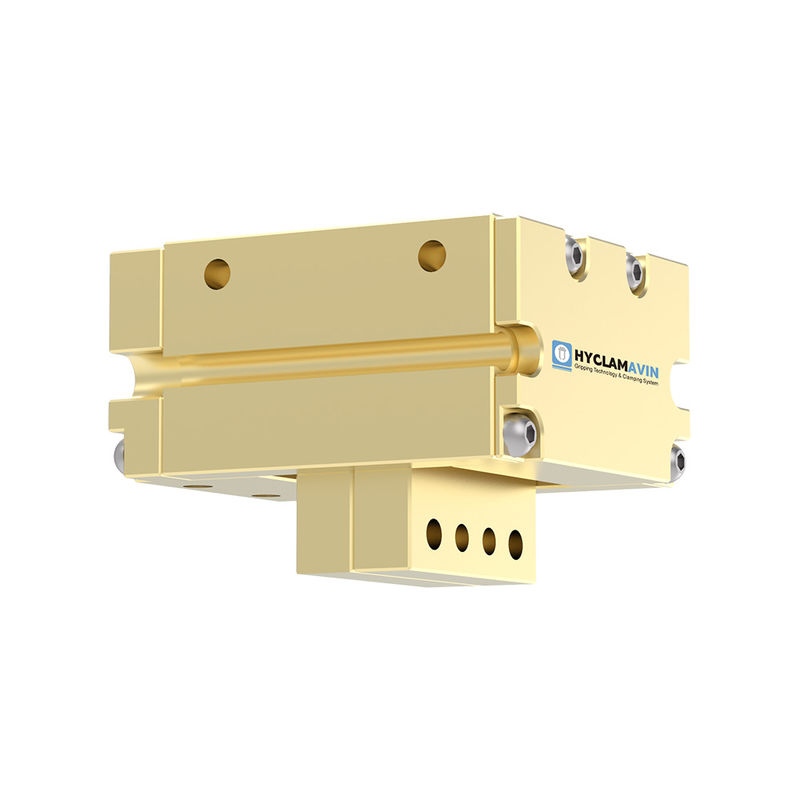

2-Jaw Pneumatic Parallel Economical Gripper TSC
2-Jaw Pneumatic Parallel Economical Gripper TSC Gripping Solution for Small Parts Handlin
Product Information
Excellent performance

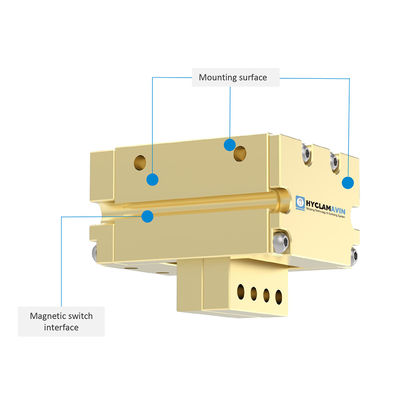

1. The TSC grippers have magnetic switch interface and multiple installation methods.
● The body is made of high strength aluminum alloy, which is lighter and stronger
● With six specifications, it is widely used for taking and placing of small parts
● With high price-performance ratio
● Magnetic switch interface
● Can be installed on three sides, flexible using
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protecti on class IP |
| TSC-25 | 2.5 | 16/16 | 0.05 | 0.08 | 0.03/0.03 | 0.02 | 30 |
| TSC-40 | 4 | 50/50 | 0.14 | 0.25 | 0.05/0.05 | 0.02 | 30 |
| TSC-75 | 7.5 | 110/110 | 0.20 | 0.55 | 0.06/0.06 | 0.02 | 30 |
| TSC-100 | 10 | 170/170 | 0.33 | 0.85 | 0.09/0.09 | 0.02 | 30 |
| TSC-120 | 12 | 240/240 | 0.53 | 1.2 | 0.10/0.10 | 0.02 | 30 |
| TSC-150 | 15 | 370/370 | 0.92 | 1.85 | 0.11/0.11 | 0.02 | 30 |
Recommended accessories
