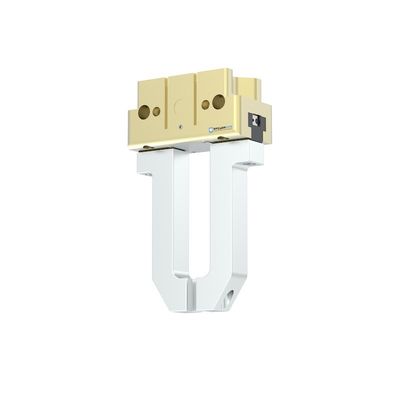

2 Jaw Parallel Grippers, T-slot Guidance TWT

2 Jaw Parallel Grippers, T-slot Guidance TWT
2 Jaw Parallel Grippers, T-slot Guidance TWT 2 Jaw Parallel Grippers, T-slot Guidance TWT

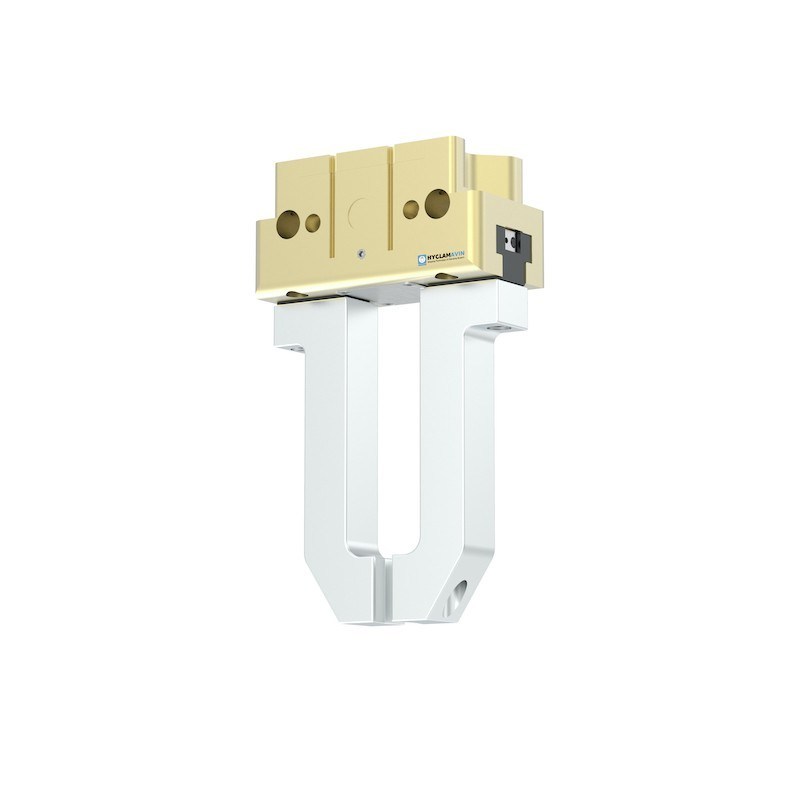

Large Image :  2 Jaw Parallel Grippers, T-slot Guidance TWT

Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: unknown
Contact Now
Detailed Product Description
Model: TWT-40A-1 Stroke Per Jaw [mm]: 2.5
Closing/ Opening Force[N]: 130/140 Weight [kg]: 0.08
Recommended Workpiece Weight[kg]: 0.65 Closing/ Opening Time[s]: 0.02/0.02
Repeat Accuracy [mm]: 0.01 Protecti On Class IP: 40
Model: TWT-40A-1-AS Closing/ Opening Force[N]: 170/-
Min. Spring Force[N]: 40 Weight [kg]: 0.1
Closing/ Opening Time[s]: 0.02/0.03 Model: TWT-40A-1-IS
Closing/ Opening Force[N]: -/190 Min. Spring Force[N]: 50
Closing/ Opening Time[s]: 0.03/0.02 Model: TWT-50A-1
Stroke Per Jaw [mm]: 4 Closing/ Opening Force[N]: 160/180
Weight [kg]: 0.15 Recommended Workpiece Weight[kg]: 0.8
Model: TWT-50A-1-AS Closing/ Opening Force[N]: 205/-
Min. Spring Force[N]: 45 Weight [kg]: 0.21
Model: TWT-50A-1-IS Closing/ Opening Force[N]: -/225
Model: TWT-50A-2 Stroke Per Jaw [mm]: 2
Closing/ Opening Force[N]: 330/370 Recommended Workpiece Weight[kg]: 1.65
Model: TWT-50A-2-AS Closing/ Opening Force[N]: 425/-
Min. Spring Force[N]: 95 Model: TWT-50A-2-IS
Closing/ Opening Force[N]: -/465 Model: TWT-64A-1
Stroke Per Jaw [mm]: 6 Closing/ Opening Force[N]: 270/300
Weight [kg]: 0.27 Recommended Workpiece Weight[kg]: 1.35
Closing/ Opening Time[s]: 0.03/0.03 Model: TWT-64A-1-AS
Closing/ Opening Force[N]: 360/- Min. Spring Force[N]: 90
Weight [kg]: 0.37 Closing/ Opening Time[s]: 0.02/0.04
Model: TWT-64A-1-IS Closing/ Opening Force[N]: -/390
Closing/ Opening Time[s]: 0.04/0.02 Model: TWT-64A-2
Stroke Per Jaw [mm]: 3 Closing/ Opening Force[N]: 560/620
Recommended Workpiece Weight[kg]: 2.8 Model: TWT-64A-2-AS
Closing/ Opening Force[N]: 750/- Min. Spring Force[N]: 190
Model: TWT-64A-2-IS Closing/ Opening Force[N]: -/810
Model: TWT-80A-1 Stroke Per Jaw [mm]: 8
Closing/ Opening Force[N]: 360/430 Weight [kg]: 0.5
Recommended Workpiece Weight[kg]: 1.8 Closing/ Opening Time[s]: 0.04/0.04
Model: TWT-80A-1-AS Closing/ Opening Force[N]: 515/-
Min. Spring Force[N]: 155 Weight [kg]: 0.6
Closing/ Opening Time[s]: 0.03/0.05 Model: TWT-80A-1-IS
Closing/ Opening Force[N]: -/585 Closing/ Opening Time[s]: 0.05/0.03
Model: TWT-80A-2 Closing/ Opening Force[N]: 745/890
Recommended Workpiece Weight[kg]: 3.72 Model: TWT-80A-2-AS
Closing/ Opening Force[N]: 1065/- Min. Spring Force[N]: 320
Model: TWT-80A-2-IS Closing/ Opening Force[N]: -/1210
Model: TWT-100A-1 Stroke Per Jaw [mm]: 10
Closing/ Opening Force[N]: 690/750 Weight [kg]: 0.81
Recommended Workpiece Weight[kg]: 3.45 Closing/ Opening Time[s]: 0.07/0.07
Model: TWT-100A-1-AS Closing/ Opening Force[N]: 930/-
Min. Spring Force[N]: 240 Weight [kg]: 1
Closing/ Opening Time[s]: 0.05/0.09 Model: TWT-100A-1-IS
Closing/ Opening Force[N]: -/990 Closing/ Opening Time[s]: 0.09/0.05
Model: TWT-100A-2 Stroke Per Jaw [mm]: 5
Closing/ Opening Force[N]: 1430/1550 Recommended Workpiece Weight[kg]: 7.15
Model: TWT-100A-2-AS Closing/ Opening Force[N]: 1930/-
Min. Spring Force[N]: 500 Model: TWT-100A-2-IS
Closing/ Opening Force[N]: -/2050 Model: TWT-110A-1
Stroke Per Jaw [mm]: 20 Closing/ Opening Force[N]: 1050/1150
Weight [kg]: 2 Recommended Workpiece Weight[kg]: 5.25
Closing/ Opening Time[s]: 0.15/0.15 Model: TWT-125A-1
Stroke Per Jaw [mm]: 13 Closing/ Opening Force[N]: 1250/1400
Weight [kg]: 1.24 Recommended Workpiece Weight[kg]: 6.25
Closing/ Opening Time[s]: 0.10/0.10 Model: TWT-125A-1-AS
Closing/ Opening Force[N]: 1640/- Min. Spring Force[N]: 390
Weight [kg]: 1.85 Closing/ Opening Time[s]: 0.08/0.12
Model: TWT-125A-1-IS Closing/ Opening Force[N]: -/1790
Closing/ Opening Time[s]: 0.12/0.08 Model: TWT-125A-2
Closing/ Opening Force[N]: 2590/2900 Recommended Workpiece Weight[kg]: 12.95
Model: TWT-125A-2-AS Closing/ Opening Force[N]: 3390/-
Min. Spring Force[N]: 800 Model: TWT-125A-2-IS
Closing/ Opening Force[N]: -/3700 Model: TWT-160A-1
Stroke Per Jaw [mm]: 16 Closing/ Opening Force[N]: 1710/1820
Weight [kg]: 2.6 Recommended Workpiece Weight[kg]: 8.55
Model: TWT-160A-1-AS Closing/ Opening Force[N]: 2280/-
Min. Spring Force[N]: 570 Weight [kg]: 3.6
Closing/ Opening Time[s]: 0.12/0.25 Model: TWT-160A-1-IS
Closing/ Opening Force[N]: -/2390 Closing/ Opening Time[s]: 0.25/0.12
Model: TWT-160A-2 Closing/ Opening Force[N]: 3550/3780
Recommended Workpiece Weight[kg]: 17.75 Model: TWT-160A-2-AS
Closing/ Opening Force[N]: 4770/- Min. Spring Force[N]: 1220
Model: TWT-160A-2-IS Closing/ Opening Force[N]: -/5000
Model: TWT-200A-1 Stroke Per Jaw [mm]: 25
Closing/ Opening Force[N]: 2810/2980 Weight [kg]: 5
Recommended Workpiece Weight[kg]: 14 Closing/ Opening Time[s]: 0.35/0.35
Repeat Accuracy [mm]: 0.02 Model: TWT-200A-1-AS
Closing/ Opening Force[N]: 3720/- Min. Spring Force[N]: 910
Weight [kg]: 7.5 Closing/ Opening Time[s]: 0.30/0.60
Model: TWT-200A-1-IS Closing/ Opening Force[N]: -/3890
Closing/ Opening Time[s]: 0.60/0.30 Model: TWT-220A-1
Closing/ Opening Force[N]: 3700/4000 Weight [kg]: 3.9
Recommended Workpiece Weight[kg]: 18.5 Closing/ Opening Time[s]: 0.16/0.16
Model: TWT-240A-1 Stroke Per Jaw [mm]: 30
Closing/ Opening Force[N]: 4500/4750 Weight [kg]: 7.7
Recommended Workpiece Weight[kg]: 22.5 Closing/ Opening Time[s]: 0.45/0.45
Repeat Accuracy [mm]: 0.04 Model: TWT-240A-1-AS
Closing/ Opening Force[N]: 5600/- Min. Spring Force[N]: 1100
Weight [kg]: 11.8 Closing/ Opening Time[s]: 0.35/0.65
Model: TWT-240A-1-IS Closing/ Opening Force[N]: -/5850
Closing/ Opening Time[s]: 0.65/0.35 Model: TWT-300A-1
Stroke Per Jaw [mm]: 35 Closing/ Opening Force[N]: 6040/6330
Weight [kg]: 13.5 Recommended Workpiece Weight[kg]: 30.2
Closing/ Opening Time[s]: 0.50/0.50 Repeat Accuracy [mm]: 0.05
Model: TWT-300A-1-AS Closing/ Opening Force[N]: 7440/-
Min. Spring Force[N]: 1400 Weight [kg]: 17.2
Closing/ Opening Time[s]: 0.40/0.70 Model: TWT-300A-1-IS
Closing/ Opening Force[N]: -/7730 Closing/ Opening Time[s]: 0.70/0.40

2 Jaw Parallel Grippers, T-slot Guidance TWT 0

2-Jaw Parallel Grippers with T-Slot Guidance

T-slot guidance, compact and reliable. Economical gripper with higher cost performance.

Key Benefits:

  • Compact and space-saving design
  • Reliable T-slot guidance for precise movement
  • Economical solution with high cost performance
  • Durable construction for long-lasting use

Target Industries and Applications:

Suitable for various automation applications, including robotics, assembly lines, and material handling.

FOB Unit
piece
Product MOQ
unknown
FOB Price
0
Packaging & Delivery
unknown

Technical Specifications

Model Stroke per jaw [mm] Closing/ opening force[N] Weight [kg]
TWT-40A-1 2.5 130/140 0.08
TWT-40A-1-AS 2.5 170/- 0.1
TWT-40A-1-IS 2.5 -/190 0.1
TWT-50A-1 4 160/180 0.15
TWT-50A-1-AS 4 205/- 0.21
TWT-50A-1-IS 4 -/225 0.21
TWT-50A-2 2 330/370 0.15
TWT-50A-2-AS 2 425/- 0.21
TWT-50A-2-IS 2 -/465 0.21
TWT-64A-1 6 270/300 0.27
TWT-64A-1-AS 6 360/- 0.37
TWT-64A-1-IS 6 -/390 0.37
TWT-64A-2 3 560/620 0.27
TWT-64A-2-AS 3 750/- 0.37
TWT-64A-2-IS 3 -/810 0.37
TWT-80A-1 8 360/430 0.5
TWT-80A-1-AS 8 515/- 0.6
TWT-80A-1-IS 8 -/585 0.6
TWT-80A-2 4 745/890 0.5
TWT-80A-2-AS 4 1065/- 0.6
TWT-80A-2-IS 4 -/1210 0.6
TWT-100A-1 10 690/750 0.81
TWT-100A-1-AS 10 930/- 1
TWT-100A-1-IS 10 -/990 1
TWT-100A-2 5 1430/1550 0.81
TWT-100A-2-AS 5 1930/- 1
TWT-100A-2-IS 5 -/2050 1
TWT-110A-1 20 1050/1150 2
TWT-125A-1 13 1250/1400 1.24
TWT-125A-1-AS 13 1640/- 1.85
TWT-125A-1-IS 13 -/1790 1.85
TWT-125A-2 6 2590/2900 1.24
TWT-125A-2-AS 6 3390/- 1.85
TWT-125A-2-IS 6 -/3700 1.85
TWT-160A-1 16 1710/1820 2.6
TWT-160A-1-AS 16 2280/- 3.6
TWT-160A-1-IS 16 -/2390 3.6
TWT-160A-2 8 3550/3780 2.6
TWT-160A-2-AS 8 4770/- 3.6
TWT-160A-2-IS 8 -/5000 3.6
TWT-200A-1 25 2810/2980 5
TWT-200A-1-AS 25 3720/- 7.5
TWT-200A-1-IS 25 -/3890 7.5
TWT-220A-1 16 3700/4000 3.9
TWT-240A-1 30 4500/4750 7.7
TWT-240A-1-AS 30 5600/- 11.8
TWT-240A-1-IS 30 -/5850 11.8
TWT-300A-1 35 6040/6330 13.5
TWT-300A-1-AS 35 7440/- 17.2
TWT-300A-1-IS 35 -/7730 17.2
