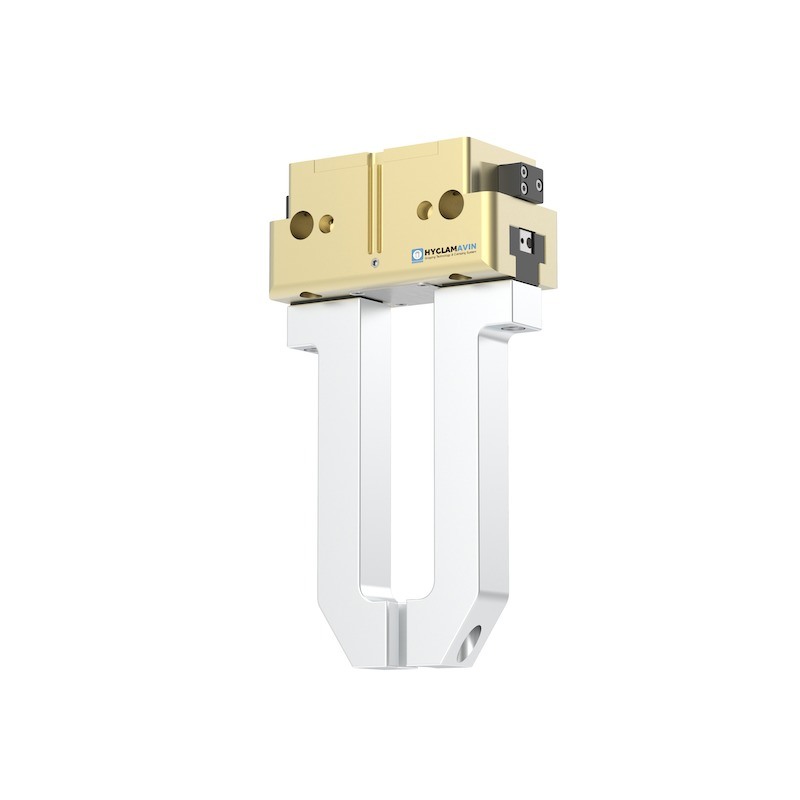

2 Finger Parallel Gripper, T-slot Guidance TWT-P

2 Finger Parallel Gripper, T-slot Guidance TWT-P
2 Finger Parallel Gripper, T-slot Guidance TWT-P 2 Finger Parallel Gripper, T-slot Guidance TWT-P

Large Image :  2 Finger Parallel Gripper, T-slot Guidance TWT-P

Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 未提及
Contact Now
Detailed Product Description
Model: TWT-P-40A-1 Stroke Per Jaw [mm]: 2.5
Closing/ Opening Force[N]: 198/210 Weight [kg]: 0.08
Recommended Workpiece Weight[kg]: 0.99 Closing/ Opening Time[s]: 0.02/0.02
Repeat Accuracy [mm]: 0.01 Protecti On Class IP: 40
Model: TWT-P-40A-1-AS Closing/ Opening Force[N]: 258/-
Min. Spring Force[N]: 60 Weight [kg]: 0.1
Closing/ Opening Time[s]: 0.02/0.03 Model: TWT-P-40A-1-IS
Closing/ Opening Force[N]: -/280 Min. Spring Force[N]: 70
Closing/ Opening Time[s]: 0.03/0.02 Model: TWT-P-50A-1
Stroke Per Jaw [mm]: 4 Closing/ Opening Force[N]: 240/255
Weight [kg]: 0.16 Recommended Workpiece Weight[kg]: 1.2
Model: TWT-P-50A-1-AS Closing/ Opening Force[N]: 330/-
Min. Spring Force[N]: 90 Weight [kg]: 0.2
Model: TWT-P-50A-1-IS Closing/ Opening Force[N]: -/345
Model: TWT-P-50A-2 Stroke Per Jaw [mm]: 2
Closing/ Opening Force[N]: 430/460 Recommended Workpiece Weight[kg]: 2.15
Model: TWT-P-50A-2-AS Closing/ Opening Force[N]: 550/-
Min. Spring Force[N]: 120 Model: TWT-P-50A-2-IS
Closing/ Opening Force[N]: -/580 Model: TWT-P-64A-1
Stroke Per Jaw [mm]: 6 Closing/ Opening Force[N]: 360/388
Weight [kg]: 0.26 Recommended Workpiece Weight[kg]: 1.8
Model: TWT-P-64A-1-AS Closing/ Opening Force[N]: 515/-
Min. Spring Force[N]: 155 Weight [kg]: 0.36
Closing/ Opening Time[s]: 0.02/0.04 Model: TWT-P-64A-1-IS
Closing/ Opening Force[N]: -/543 Closing/ Opening Time[s]: 0.04/0.02
Model: TWT-P-64A-2 Stroke Per Jaw [mm]: 3
Closing/ Opening Force[N]: 730/785 Recommended Workpiece Weight[kg]: 3.65
Model: TWT-P-64A-2-AS Closing/ Opening Force[N]: 1040/-
Min. Spring Force[N]: 310 Model: TWT-P-64A-2-IS
Closing/ Opening Force[N]: -/1095 Model: TWT-P-80A-1
Stroke Per Jaw [mm]: 8 Closing/ Opening Force[N]: 565/630
Weight [kg]: 0.52 Recommended Workpiece Weight[kg]: 2.82
Closing/ Opening Time[s]: 0.04/0.04 Model: TWT-P-80A-1-AS
Closing/ Opening Force[N]: 805/- Min. Spring Force[N]: 240
Weight [kg]: 0.6 Closing/ Opening Time[s]: 0.03/0.05
Model: TWT-P-80A-1-IS Closing/ Opening Force[N]: -/870
Closing/ Opening Time[s]: 0.05/0.03 Model: TWT-P-80A-2
Closing/ Opening Force[N]: 1145/1275 Recommended Workpiece Weight[kg]: 5.72
Model: TWT-P-80A-2-AS Closing/ Opening Force[N]: 1535/-
Min. Spring Force[N]: 390 Model: TWT-P-80A-2-IS
Closing/ Opening Force[N]: -/1665 Model: TWT-P-100A-1
Stroke Per Jaw [mm]: 10 Closing/ Opening Force[N]: 930/995
Weight [kg]: 0.9 Recommended Workpiece Weight[kg]: 4.65
Closing/ Opening Time[s]: 0.07/0.07 Model: TWT-P-100A-1-AS
Closing/ Opening Force[N]: 1300/- Min. Spring Force[N]: 370
Weight [kg]: 1.1 Closing/ Opening Time[s]: 0.05/0.09
Model: TWT-P-100A-1-IS Closing/ Opening Force[N]: -/1345
Min. Spring Force[N]: 350 Closing/ Opening Time[s]: 0.09/0.05
Model: TWT-P-100A-2 Stroke Per Jaw [mm]: 5
Closing/ Opening Force[N]: 1860/2000 Recommended Workpiece Weight[kg]: 9.3
Model: TWT-P-100A-2-AS Closing/ Opening Force[N]: 2400/-
Min. Spring Force[N]: 540 Model: TWT-P-100A-2-IS
Closing/ Opening Force[N]: -/2700 Min. Spring Force[N]: 700
Model: TWT-P-110A-1 Stroke Per Jaw [mm]: 20
Closing/ Opening Force[N]: 1230/1330 Weight [kg]: 2.5
Recommended Workpiece Weight[kg]: 6.15 Closing/ Opening Time[s]: 0.15/0.15
Model: TWT-P-125A-1 Stroke Per Jaw [mm]: 13
Closing/ Opening Force[N]: 1475/1590 Weight [kg]: 1.4
Recommended Workpiece Weight[kg]: 7.37 Closing/ Opening Time[s]: 0.10/0.10
Model: TWT-P-125A-1-AS Closing/ Opening Force[N]: 2125/-
Min. Spring Force[N]: 650 Weight [kg]: 1.9
Closing/ Opening Time[s]: 0.08/0.12 Model: TWT-P-125A-1-IS
Closing/ Opening Force[N]: -/2240 Closing/ Opening Time[s]: 0.12/0.08
Model: TWT-P-125A-2 Closing/ Opening Force[N]: 2990/3220
Recommended Workpiece Weight[kg]: 14.95 Model: TWT-P-125A-2-AS
Closing/ Opening Force[N]: 4190/- Min. Spring Force[N]: 1200
Model: TWT-P-125A-2-IS Closing/ Opening Force[N]: -/4420
Model: TWT-P-160A-1 Stroke Per Jaw [mm]: 16
Closing/ Opening Force[N]: 2600/2715 Weight [kg]: 3
Recommended Workpiece Weight[kg]: 13 Model: TWT-P-160A-1-AS
Closing/ Opening Force[N]: 3550/- Min. Spring Force[N]: 900
Weight [kg]: 3.8 Closing/ Opening Time[s]: 0.10/0.20
Model: TWT-P-160A-1-IS Closing/ Opening Force[N]: -/3615
Closing/ Opening Time[s]: 0.20/0.10 Model: TWT-P-160A-2
Closing/ Opening Force[N]: 5270/5500 Recommended Workpiece Weight[kg]: 26.35
Model: TWT-P-160A-2-AS Closing/ Opening Force[N]: 6770/-
Min. Spring Force[N]: 1500 Model: TWT-P-160A-2-IS
Closing/ Opening Force[N]: -/7000 Model: TWT-P-200A-1
Stroke Per Jaw [mm]: 25 Closing/ Opening Force[N]: 4300/4500
Weight [kg]: 5.5 Recommended Workpiece Weight[kg]: 21.5
Closing/ Opening Time[s]: 0.30/0.30 Repeat Accuracy [mm]: 0.02
Model: TWT-P-200A-1-AS Closing/ Opening Force[N]: 5600/-
Min. Spring Force[N]: 1300 Weight [kg]: 7
Closing/ Opening Time[s]: 0.30/0.60 Model: TWT-P-200A-1-IS
Closing/ Opening Force[N]: -/6000 Closing/ Opening Time[s]: 0.60/0.30
Model: TWT-P-240A-1 Stroke Per Jaw [mm]: 30
Closing/ Opening Force[N]: 5450/5680 Weight [kg]: 8.7
Recommended Workpiece Weight[kg]: 27.25 Closing/ Opening Time[s]: 0.50/0.50
Repeat Accuracy [mm]: 0.04 Model: TWT-P-240A-1-AS
Closing/ Opening Force[N]: 8200/- Min. Spring Force[N]: 2750
Weight [kg]: 11.8 Closing/ Opening Time[s]: 0.45/0.90
Model: TWT-P-240A-1-IS Closing/ Opening Force[N]: -/8430
Closing/ Opening Time[s]: 0.90/0.45 Model: TWT-P-300A-1
Stroke Per Jaw [mm]: 35 Closing/ Opening Force[N]: 6850/7190
Weight [kg]: 13.6 Recommended Workpiece Weight[kg]: 34.25
Repeat Accuracy [mm]: 0.05 Model: TWT-P-300A-1-AS
Closing/ Opening Force[N]: 8600/- Min. Spring Force[N]: 1750
Weight [kg]: 17.3 Closing/ Opening Time[s]: 0.40/0.70
Model: TWT-P-300A-1-IS Closing/ Opening Force[N]: -/8940
Closing/ Opening Time[s]: 0.70/0.40

2-Finger Parallel Gripper

2 Finger Parallel Gripper, T-slot Guidance TWT-P 0

Product Overview

This 2-finger parallel gripper features T-slot guidance, offering a compact and reliable solution for various industrial applications. It is an economical gripper designed with higher cost performance in mind.

Key Benefits:

  • T-slot guidance for enhanced stability.
  • Compact design ideal for space-constrained environments.
  • Reliable performance ensures consistent operation.
  • Economical solution providing excellent value.

Target Industries and Applications: Automation, Robotics, Manufacturing, Assembly Lines.

Product Attributes

FOB Unit: piece
Product MOQ: Not specified
FOB Price: 0
Packaging & Delivery: Not specified

Technical Specifications

Model Stroke per jaw [mm] Closing/ opening force[N] Weight [kg]
TWT-P-40A-1 2.5 198/210 0.08
TWT-P-40A-1-AS 2.5 258/- 0.1
TWT-P-40A-1-IS 2.5 -/280 0.1
TWT-P-50A-1 4 240/255 0.16
TWT-P-50A-1-AS 4 330/- 0.2
TWT-P-50A-1-IS 4 -/345 0.2
TWT-P-50A-2 2 430/460 0.16
TWT-P-50A-2-AS 2 550/- 0.2
TWT-P-50A-2-IS 2 -/580 0.2
TWT-P-64A-1 6 360/388 0.26
TWT-P-64A-1-AS 6 515/- 0.36
TWT-P-64A-1-IS 6 -/543 0.36
TWT-P-64A-2 3 730/785 0.26
TWT-P-64A-2-AS 3 1040/- 0.36
TWT-P-64A-2-IS 3 -/1095 0.36
TWT-P-80A-1 8 565/630 0.52
TWT-P-80A-1-AS 8 805/- 0.6
TWT-P-80A-1-IS 8 -/870 0.6
TWT-P-80A-2 4 1145/1275 0.52
TWT-P-80A-2-AS 4 1535/- 0.6
TWT-P-80A-2-IS 4 -/1665 0.6
TWT-P-100A-1 10 930/995 0.9
TWT-P-100A-1-AS 10 1300/- 1.1
TWT-P-100A-1-IS 10 -/1345 1.1
TWT-P-100A-2 5 1860/2000 0.9
TWT-P-100A-2-AS 5 2400/- 1.1
TWT-P-100A-2-IS 5 -/2700 1.1
TWT-P-110A-1 20 1230/1330 2.5
TWT-P-125A-1 13 1475/1590 1.4
TWT-P-125A-1-AS 13 2125/- 1.9
TWT-P-125A-1-IS 13 -/2240 1.9
TWT-P-125A-2 6 2990/3220 1.4
TWT-P-125A-2-AS 6 4190/- 1.9
TWT-P-125A-2-IS 6 -/4420 1.9
TWT-P-160A-1 16 2600/2715 3
TWT-P-160A-1-AS 16 3550/- 3.8
TWT-P-160A-1-IS 16 -/3615 3.8
TWT-P-160A-2 8 5270/5500 3
TWT-P-160A-2-AS 8 6770/- 3.8
TWT-P-160A-2-IS 8 -/7000 3.8
TWT-P-200A-1 25 4300/4500 5.5
TWT-P-200A-1-AS 25 5600/- 7
TWT-P-200A-1-IS 25 -/6000 7
TWT-P-240A-1 30 5450/5680 8.7
TWT-P-240A-1-AS 30 8200/- 11.8
TWT-P-240A-1-IS 30 -/8430 11.8
TWT-P-300A-1 35 6850/7190 13.6
TWT-P-300A-1-AS 35 8600/- 17.3
TWT-P-300A-1-IS 35 -/8940 17.3
