Home ProductsTwo Jaw Parallel Pneumatic Gripper

High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces

All Products
Two Jaw Parallel Pneumatic Gripper (64)
Long Stroke Pneumatic Gripper (16)
Pneumatic Angular Gripper (4)
3 Jaw Pneumatic Gripper (16)
Quick Tool Changer (23)
I'm Online Chat Now

High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces

High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces
High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces

Large Image :  High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: TWN-P
Payment & Shipping Terms:
Minimum Order Quantity: 1 pce
Price: USD, 450-2850, PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Model: TWN-P Special Features: Economical
Maximum Gripping Force: 50 N Body Material: Aluminum
Repeatability: High Repeatability Accuracy Operating Temperature: 0-60°C
Material: Aluminum Alloy Clamping Force: Adjustable Clamping Force
Jaw Number: 2 Maximum Jaw Closing: 7 Mm
Maximum Jaw Stroke: Depends On Jaw Size Operating Pressure: 0.5-0.7MPa
Jaw Type: Parallel Maximum Stroke: 20 Mm

High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces



2-Jaw Parallel Grippers, Multi-Tooth Guidance TWN-P



Product Information

High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces 0



Excellent Performance

  1. Built with high-precision mechanics and long-term lubrication, the TWN-P grippers utilize a multi-tooth straight guide system.

High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces 1

● Compact and durable design for short stroke, heavy-duty tasks
● Load distribution minimizes point stress
● Grease distributes faster and more consistently
● Provides stable motion accuracy over extended operation
● Oil retention inside the guide extends lifespan significantly
● Supports 50% longer finger length compared to standard versions

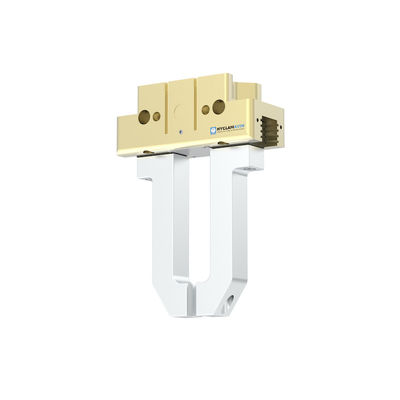

2.TWN-P grippers are available with different sensor and air port options.

High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces 2



Gripping force maintenance-AS/IS

High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces 3

  • Optional gripping force retention versions: TWN-P-AS/IS (AS: close holding, IS: open holding).

  • Spring accumulator helps preserve grip during air loss.



Dust-tight version

  • TWN-P-SD dust-tight configuration achieves IP64 protection.

High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces 4

High-temperature version

  • TWN-P-HT high-temperature model supports 5–130℃ conditions.



Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protection class IP
TWN-P-40A-1 2.5 198/210   0.08 0.99 0.02/0.02 0.01 40/64
TWN-P-40A-1-AS 2.5 258/- 60 0.1 0.99 0.02/0.03 0.01 40/64
TWN-P-40A-1 2.5 -/280 70 0.1 0.99 0.03/0.02 0.01 40/64
TWN-P-50A-1 4 240/255   0.16 1.2 0.02/0.02 0.01 40/64
TWN-P-50A-1-AS 4 330/- 90 0.2 1.2 0.02/0.03 0.01 40/64
TWN-P-50A-1-IS 4 -/345 90 0.2 1.2 0.03/0.02 0.01 40/64
TWN-P-50A-2 2 430/460   0.16 2.15 0.02/0.02 0.01 40/64
TWN-P-50A-2-AS 2 550/- 120 0.2 2.15 0.02/0.03 0.01 40/64
TWN-P-50A-2-IS 2 -/580 120 0.2 2.15 0.03/0.02 0.01 40/64
TWN-P-64A-1 6 360/388   0.26 1.8 0.02/0.02 0.01 40/64
TWN-P-64A-1-AS 6 515/- 155 0.36 1.8 0.02/0.04 0.01 40/64
TWN-P-64A-1-IS 6 -/543 155 0.36 1.8 0.04/0.02 0.01 40/64
TWN-P-64A-2 3 730/785   0.26 3.65 0.02/0.02 0.01 40/64
TWN-P-64A-2-AS 3 1040/- 310 0.36 3.65 0.02/0.04 0.01 40/64
TWN-P-64A-2-IS 3 -/1095 310 0.36 3.65 0.04/0.02 0.01 40/64
TWN-P-80A-1 8 565/630   0.52 2.82 0.04/0.04 0.01 40/64
TWN-P-80A-1-AS 8 805/- 240 0.6 2.82 0.03/0.05 0.01 40/64
TWN-P-80A-1-IS 8 -/870 240 0.6 2.82 0.05/0.03 0.01 40/64
TWN-P-80A-2 4 1145/1275   0.52 5.72 0.04/0.04 0.01 40/64
TWN-P-80A-2-AS 4 1535/- 390 0.6 5.72 0.03/0.05 0.01 40/64
TWN-P-80A-2-IS 4 -/1665 390 0.6 5.72 0.05/0.03 0.01 40/64
TWN-P-100A-1 10 930/995   0.9 4.65 0.07/0.07 0.01 40/64
TWN-P-100A-1-AS 10 1300/- 370 1.1 4.65 0.05/0.09 0.01 40/64
TWN-P-100A-1-IS 10 -/1345 350 1.1 4.65 0.09/0.05 0.01 40/64
TWN-P-100A-2 5 1860/2000   0.9 9.3 0.07/0.07 0.01 40/64
TWN-P-100A-2-AS 5 2400/- 540 1.1 9.3 0.05/0.09 0.01 40/64
TWN-P-100A-2-IS 5 -/2700 700 1.1 9.3 0.09/0.05 0.01 40/64
TWN-P-110A-1 20 1230/1330   2.5 6.15 0.15/0.15 0.01 40/64
TWN-P-125A-1 13 1475/1590   1.4 7.37 0.10/0.10 0.01 40/64
TWN-P-125A-1-AS 13 2125/- 650 1.9 7.37 0.08/0.12 0.01 40/64
TWN-P-125A-1-IS 13 -/2240 650 1.9 7.37 0.12/0.08 0.01 40/64
TWN-P-125A-2 6 2990/3220   1.4 14.95 0.10/0.10 0.01 40/64
TWN-P-125A-2-AS 6 4190/- 1200 1.9 14.95 0.08/0.12 0.01 40/64
TWN-P-125A-2-IS 6 -/4420 1200 1.9 14.95 0.12/0.08 0.01 40/64
TWN-P-160A-1 16 2600/2715   3 13 0.10/0.10 0.01 40/64
TWN-P-160A-1-AS 16 3550/- 900 3.8 13 0.10/0.20 0.01 40/64
TWN-P-160A-1-IS 16 -/3615 900 3.8 13 0.20/0.10 0.01 40/64
TWN-P-160A-2 8 5270/5500   3 26.35 0.10/0.10 0.01 40/64
TWN-P-160A-2-AS 8 6770/- 1500 3.8 26.35 0.10/0.20 0.01 40/64
TWN-P-160A-2-IS 8 -/7000 1500 3.8 26.35 0.20/0.10 0.01 40/64
TWN-P-200A-1 25 4300/4500   5.5 21.5 0.30/0.30 0.02 40/64
TWN-P-200A-1-AS 25 5600/- 1300 7 21.5 0.30/0.60 0.02 40/64
TWN-P-200A-1-IS 25 -/6000 1500 7 21.5 0.60/0.30 0.02 40/64
TWN-P-200A-2 14 7700/8100   5.5 38.5 0.30/0.30 0.02 40/64
TWN-P-200A-2-AS 14 10200/- 2500 7 38.5 0.30/0.60 0.02 40/64
TWN-P-200A-2-IS 14 -/10900 2800 7 38.5 0.60/0.30 0.02 40/64
TWN-P-240A-1 30 5450/5680   8.7 27.25 0.50/0.50 0.04 40/64
TWN-P-240A-1-AS 30 8200/- 2750 11.8 27.25 0.45/0.90 0.04 40/64
TWN-P-240A-1-IS 30 -/8430 2750 11.8 27.25 0.90/0.45 0.04 40/64
TWN-P-240A-2 17 9440/9850   8.9 47.2 0.50/0.50 0.04 40/64
TWN-P-240A-2-AS 17 14590/- 5150 12 47.2 0.45/0.90 0.04 40/64
TWN-P-240A-2-IS 17 -/15000 5150 12 47.2 0.90/0.45 0.04 40/64
TWN-P-300A-1 35 6850/7190   13.6 34.25 0.50/0.50 0.05 40/64
TWN-P-300A-1-AS 35 8600/- 1750 17.3 34.25 0.40/0.70 0.05 40/64
TWN-P-300A-1-IS 35 -/8940 1750 17.3 34.25 0.70/0.40 0.05 40/64
TWN-P-300A-2 20 11870/12460   13.6 59.35 0.50/0.50 0.05 40/64
TWN-P-300A-2-AS 20 15870/- 4000 17.3 59.35 0.40/0.70 0.05 40/64
TWN-P-300A-2-IS 20 -/16460 4000 17.3 59.35 0.70/0.40 0.05 40/64
TWN-P-380A-1 45 10700/11100   27 53.5 0.60/0.60 0.05 40/64
TWN-P-380A-1-AS 45 14300/- 3600 37 53.5 0.50/0.80 0.05 40/64
TWN-P-380A-1-IS 45 -/14800 3700 37 53.5 0.80/0.50 0.05 40/64
TWN-380A-2 26 20500/21300   27 102.5 0.60/0.60 0.05 40/64
TWN-P-380A-2-AS 26 27400/- 6900 37 102.5 0.50/0.80 0.05 40/64
TWN-P-380A-2-IS 26 -/28300 7000 37 102.5 0.80/0.50 0.05 40/64



Recommended accessories

High Precision Parallel Gripper with Permanent Lubrication and Sensor Interfaces 5

2 jaw parallel grippers, multi-tooth guidance twn, China, suppliers, manufacturers, factory, custom, price, design, parallel air gripper, heavy duty pneumatic gripper, 2 jaw air grippers, collaborative gripper, Two Finger Pneumatic Gripper, eoat gripper, parallel grippers.





Tag:

parallel motion two jaw gripper,

2 jaw gripper,

end of arm tooling grippers
