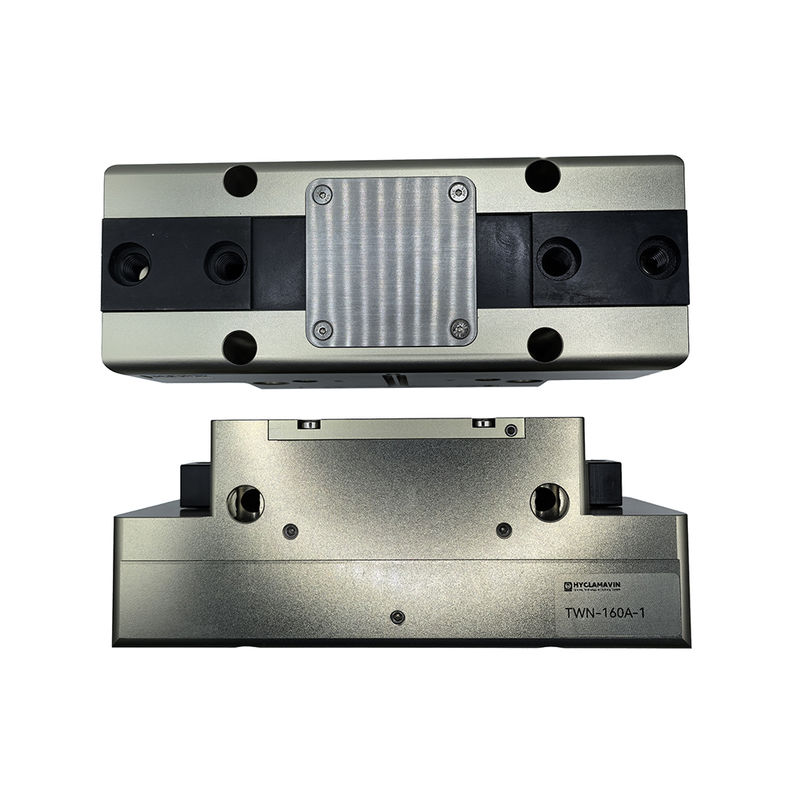

Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication

Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication
Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication

Large Image :  Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: TWN
Payment & Shipping Terms:
Minimum Order Quantity: 1 pce
Price: USD, 450-2850, PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Product Type: Pneumatic Parallel Multi-Tooth Gripper Model: TWN-160A-1
Stroke Per Jaw [mm: 16 Protecti On Class IP: 40/64
Closing/ Opening Force[N: 1710/1820 Repeat Accuracy [mm: 0.01
Recommended Workpiece Weight[kg: 8.55 Jaw Number: 2
Weight [kg: 2.6 Clamping Force: Adjustable Clamping Force
Interface: Pneumatic Interface Options Mounting: T-Slot
Material: Aluminum Alloy Stroke: Adjustable
Actuation Type: Pneumatic

2-Jaw Parallel Grippers, Multi-Tooth Guidance TWN



Product Information

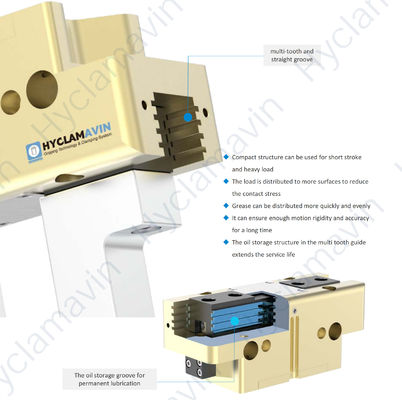

Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication 0



Excellent performance



1. TWN grippers offer high precision, durable lubrication, and a straight-groove guide with multi-tooth design.

Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication 1

● Compact and robust, suited for short-stroke and high-force conditions
● Better stress distribution minimizes wear on contact surfaces
● Efficient grease application maintains smooth operation
● Ensures long-term rigidity and movement stability
● Integrated guide oil cavity extends maintenance intervals and lifetime



2. Supports a wide array of sensor and pneumatic connections.

Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication 2



Gripping force maintenance-AS/IS

Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication 3

  • TWN grippers can be equipped with AS/IS grip holding systems (AS = closed position; IS = open position).

  • The spring-based energy retention system secures minimum grip during pressure loss.



Dust-tight version

  • IP64-certified dust-tight option available under model TWN-SD.

Compact Parallel Gripper with Force Holding Mechanism and Permanent Lubrication 4

High-temperature version

  • TWN-P-HT increases temperature endurance from 90°C to 130°C.



Model and Technical Parameters



Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protecti on class IP
TWN-40A-1 2.5 130/140   0.08 0.65 0.02/0.02 0.01 40/64
TWN-40A-1-AS 2.5 170/- 40 0.1 0.65 0.02/0.03 0.01 40/64
TWN-40A-1-IS 2.5 -/190 50 0.1 0.65 0.03/0.02 0.01 40/64
TWN-50A-1 4 160/180   0.15 0.8 0.02/0.02 0.01 40/64
TWN-50A-1-AS 4 205/- 45 0.21 0.8 0.02/0.03 0.01 40/64
TWN-50A-1-IS 4 -/225 45 0.21 0.8 0.03/0.02 0.01 40/64
TWN-50A-2 2 330/370   0.15 1.65 0.02/0.02 0.01 40/64
TWN-50A-2-AS 2 425/- 95 0.21 1.65 0.02/0.03 0.01 40/64
TWN-50A-2-IS 2 -/465 95 0.21 1.65 0.03/0.02 0.01 40/64
TWN-64A-1 6 270/300   0.27 1.35 0.03/0.03 0.01 40/64
TWN-64A-1-AS 6 360/- 90 0.37 1.35 0.02/0.04 0.01 40/64
TWN-64A-1-IS 6 -/390 90 0.37 1.35 0.04/0.02 0.01 40/64
TWN-64A-2 3 560/620   0.27 2.8 0.03/0.03 0.01 40/64
TWN-64A-2-AS 3 750/- 190 0.37 2.8 0.02/0.04 0.01 40/64
TWN-64A-2-IS 3 -/810 190 0.37 2.8 0.04/0.02 0.01 40/64
TWN-80A-1 8 360/430   0.5 1.8 0.04/0.04 0.01 40/64
TWN-80A-1-AS 8 515/- 155 0.6 1.8 0.03/0.05 0.01 40/64
TWN-80A-1-IS 8 -/585 155 0.6 1.8 0.05/0.03 0.01 40/64
TWN-80A-2 4 745/890   0.5 3.72 0.04/0.04 0.01 40/64
TWN-80A-2-AS 4 1065/- 320 0.6 3.72 0.03/0.05 0.01 40/64
TWN-80A-2-IS 4 -/1210 320 0.6 3.72 0.05/0.03 0.01 40/64
TWN-100A-1 10 690/750   0.81 3.45 0.07/0.07 0.01 40/64
TWN-100A-1-AS 10 930/- 240 1 3.45 0.05/0.09 0.01 40/64
TWN-100A-1-IS 10 -/990 240 1 3.45 0.09/0.05 0.01 40/64
TWN-100A-2 5 1430/1550   0.81 7.15 0.07/0.07 0.01 40/64
TWN-100A-2-AS 5 1930/- 500 1 7.15 0.05/0.09 0.01 40/64
TWN-100A-2-IS 5 -/2050 500 1 7.15 0.09/0.05 0.01 40/64
TWN-110A-1 20 1050/1150   2 5.25 0.15/0.15 0.01 40/64
TWN-125A-1 13 1250/1400   1.24 6.25 0.10/0.10 0.01 40/64
TWN-125A-1-AS 13 1640/- 390 1.85 6.25 0.08/0.12 0.01 40/64
TWN-125A-1-IS 13 -/1790 390 1.85 6.25 0.12/0.08 0.01 40/64
TWN-125A-2 6 2590/2900   1.24 12.95 0.10/0.10 0.01 40/64
TWN-125A-2-AS 6 3390/- 800 1.85 12.95 0.08/0.12 0.01 40/64
TWN-125A-2-IS 6 -/3700 800 1.85 12.95 0.12/0.08 0.01 40/64
TWN-160A-1 16 1710/1820   2.6 8.55 0.15/0.15 0.01 40/64
TWN-160A-1-AS 16 2280/- 570 3.6 8.55 0.12/0.25 0.01 40/64
TWN-160A-1-IS 16 -/2390 570 3.6 8.55 0.25/0.12 0.01 40/64
TWN-160A-2 8 3550/3780   2.6 17.75 0.15/0.15 0.01 40/64
TWN-160A-2-AS 8 4770/- 1220 3.6 17.75 0.12/0.25 0.01 40/64
TWN-160A-2-IS 8 -/5000 1220 3.6 17.75 0.25/0.12 0.01 40/64
TWN-200A-1 25 2810/2980   5 14 0.35/0.35 0.02 40/64
TWN-200A-1-AS 25 3720/- 910 7.5 14 0.30/0.60 0.02 40/64
TWN-200A-1-IS 25 -/3890 910 7.5 14 0.60/0.30 0.02 40/64
TWN-200A-2 14 5700/6000   5 28.5 0.35/0.35 0.02 40/64
TWN-200A-2-AS 14 7300/- 1600 7.5 28.5 0.30/0.60 0.02 40/64
TWN-200A-2-IS 14 -/7700 1600 7.5 28.5 0.60/0.30 0.02 40/64
TWN-220A-1 16 3700/4000   3.9 18.5 0.16/0.16 0.02 40/64
TWN-240A-1 30 4500/4750   7.7 22.5 0.45/0.45 0.04 40/64
TWN-240A-1-AS 30 5600/- 1100 11.8 22.5 0.35/0.65 0.04 40/64
TWN-240A-1-IS 30 -/5850 1100 11.8 22.5 0.65/0.35 0.04 40/64
TWN-240A-2 17 6970/7360   7.7 34.8 0.45/0.45 0.04 40/64
TWN-240A-2-AS 17 8810/- 1840 11.8 34.8 0.35/0.65 0.04 40/64
TWN-240A-2-IS 17 -/9200 1840 11.8 34.8 0.65/0.35 0.04 40/64
TWN-300A-1 35 6040/6330   13.5 30.2 0.50/0.50 0.05 40/64
TWN-300A-1-AS 35 7440/- 1400 17.2 30.2 0.40/0.70 0.05 40/64
TWN-300A-1-IS 35 -/7730 1400 17.2 30.2 0.70/0.40 0.05 40/64
TWN-300A-2 20 10400/10900   13.5 52 0.50/0.50 0.05 40/64
TWN-300A-2-AS 20 12600/- 2200 17.2 52 0.40/0.70 0.05 40/64
TWN-300A-2-IS 20 -/13100 2200 17.2 52 0.70/0.40 0.05 40/64
TWN-380A-1 45 10100/10450   25.5 50.5 0.60/0.60 0.05 40/64
TWN-380A-1-AS 45 13400/- 3300 36 50.5 0.50/0.80 0.05 40/64
TWN-380A-1-IS 45 -/13750 3300 36 50.5 0.80/0.50 0.05 40/64
TWN-380A-2 26 17300/18000   25.5 86.5 0.60/0.60 0.05 40/64
TWN-380A-2-AS 26 23000/- 5700 37 86.5 0.50/0.80 0.05 40/64
TWN-380A-2-IS 26 -/23700 5700 37 86.5 0.80/0.50 0.05 40/64
