| Actuation: | Double Acting | Jaw Material: | Stainless Steel |
|---|---|---|---|
| Stroke: | Long | Application: | Industrial Automation |
| Max Pressure: | 8 Bar | Mounting: | Through-hole |
| Sensor Type: | Inductive | Finger Style: | Parallel |
| Max. Gripping Capacity: | 25 Mm | Weight: | 0.5 Kg |
| Sensor Slots: | 2 | Grip Force: | High |
| Protection Class: | IP54 | Maximum Pressure: | 1.0MPa |

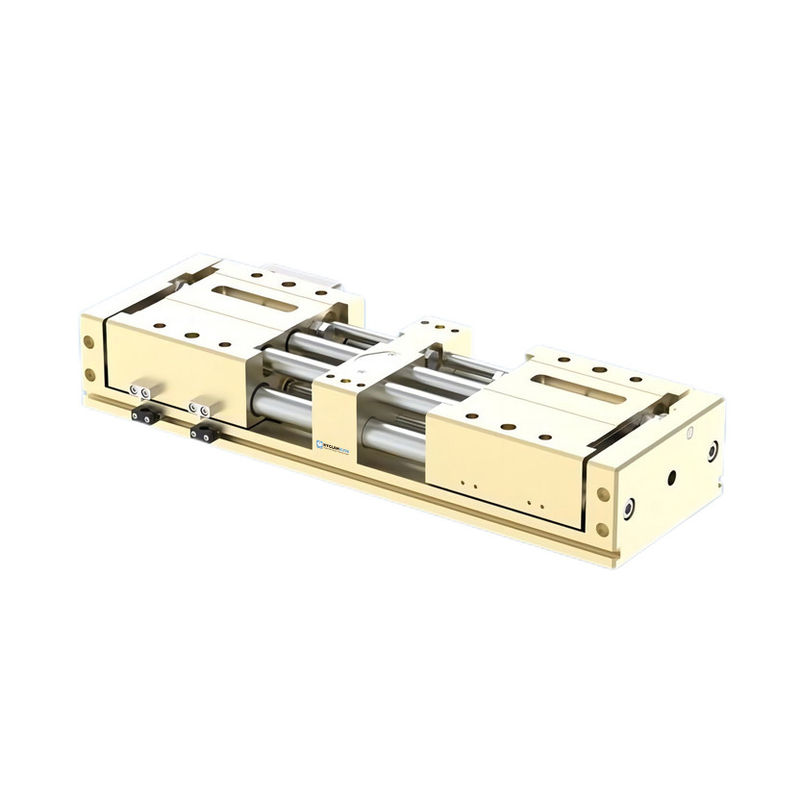

2-Jaw Pneumatic Parallel Long Stroke Gripper TPHL
Product Information
Outstanding Performance

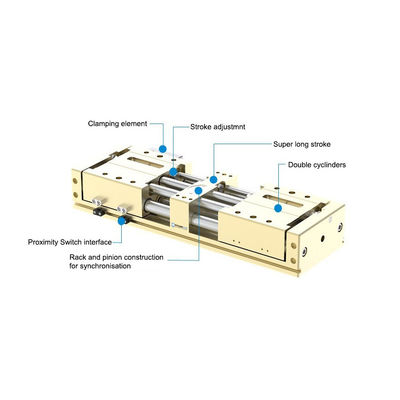

1. TPHL series grippers feature a flat design and an ultra-long stroke.
Model and Technical Parameters
| Type | Stroke per jaw [mm] |
Closing/ opening force[N] |
Weight [kg] |
Closing/ opening time[s] |
Allowable moment Mr[Nm] | Allowable moment Mx/My[Nm] | Allowable Force Fa[N] |
Repeat accuracy [mm] |
Protection class IP
|
| TPHL-82A-60-1 | 60 | 890/890 | 5.8 | 0.30/0.30 | 410 | 410 | 7900 | 0.05 | 54 |
| TPHL-82A-60-1-AS | 60 | 890/890 | 6.5 | 0.30/0.30 | 410 | 410 | 7900 | 0.05 | 54 |
| TPHL-82A-100-1 | 100 | 890/890 | 7.4 | 0.50/0.50 | 410 | 410 | 7900 | 0.05 | 54 |
| TPHL-82A-100-1-AS | 100 | 890/890 | 8.1 | 0.50/0.50 | 410 | 410 | 7900 | 0.05 | 54 |
| TPHL-83A-63-1 | 62.5 | 1950/1950 | 15.1 | 0.35/0.35 | 1000 | 1000 | 17500 | 0.05 | 54 |
| TPHL-83A-63-1-AS | 62.5 | 1950/1950 | 16.1 | 0.35/0.35 | 1000 | 1000 | 17500 | 0.05 | 54 |
| TPHL-83A-100-1 | 100 | 1950/1950 | 17.8 | 0.50/0.50 | 1000 | 1000 | 17500 | 0.05 | 54 |
| TPHL-83A-100-1-AS | 100 | 1950/1950 | 18.8 | 0.50/0.50 | 1000 | 1000 | 17500 | 0.05 | 54 |
| TPHL-83A-125-1 | 125 | 1950/1950 | 19.8 | 0.65/0.65 | 1000 | 1000 | 17500 | 0.05 | 54 |
| TPHL-83A-125-1-AS | 125 | 1950/1950 | 20.8 | 0.65/0.65 | 1000 | 1000 | 17500 | 0.05 | 54 |
| TPHL-83A-150-1 | 150 | 1950/1950 | 22 | 0.75/0.75 | 1000 | 1000 | 17500 | 0.05 | 54 |
| TPHL-83A-150-1-AS | 150 | 1950/1950 | 23 | 0.75/0.75 | 1000 | 1000 | 17500 | 0.05 | 54 |
| TPHL-84A-80-1 | 80 | 3200/3200 | 34.2 | 0.90/0.90 | 1450 | 1450 | 23600 | 0.05 | 54 |
| TPHL-84A-80-1-AS | 80 | 3200/3200 | 36.2 | 0.90/0.90 | 1450 | 1450 | 23600 | 0.05 | 54 |
| TPHL-84A-160-1 | 160 | 3200/3200 | 41 | 1.80/1.80 | 1450 | 1450 | 23600 | 0.05 | 54 |
| TPHL-84A-160-1-AS | 160 | 3200/3200 | 43 | 1.80/1.80 | 1450 | 1450 | 23600 | 0.05 | 54 |
| TPHL-84A-220-1 | 220 | 3200/3200 | 47.5 | 2.50/2.50 | 1450 | 1450 | 23600 | 0.05 | 54 |
| TPHL-84A-220-1-AS | 220 | 3200/3200 | 50.5 | 2.50/2.50 | 1450 | 1450 | 23600 | 0.05 | 54 |
