Product Details:
Payment & Shipping Terms:
|
| Gripper Weight: | 2.6-9.6 Kgs | Recommended Workpiece Weight: | 3.75-13.1 Kgs |
|---|---|---|---|
| Stroke Per Jaw: | 30 Mm-50 Mm | Actuation: | Pneumatic |
| Material: | High Strength Aluminum Alloy | Gripping Force: | High |
| Number Of Jaws: | 2 | Operating Pressure: | 2.5-8 Bar |
| Operating Temperature: | 5-90°C | Jaw Type: | Parallel |
| Protection Class: | IP41 | Repeat Accuracy: | 0.05mm |
| Highlight: | parallel pneumatic shaft gripper,tfh two jaw gripper,pneumatic shaft gripper tfh |
||

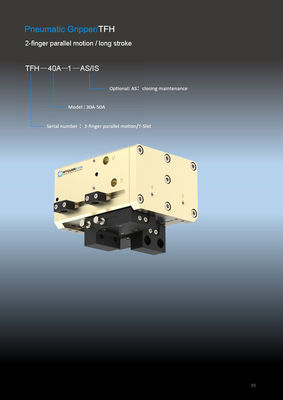

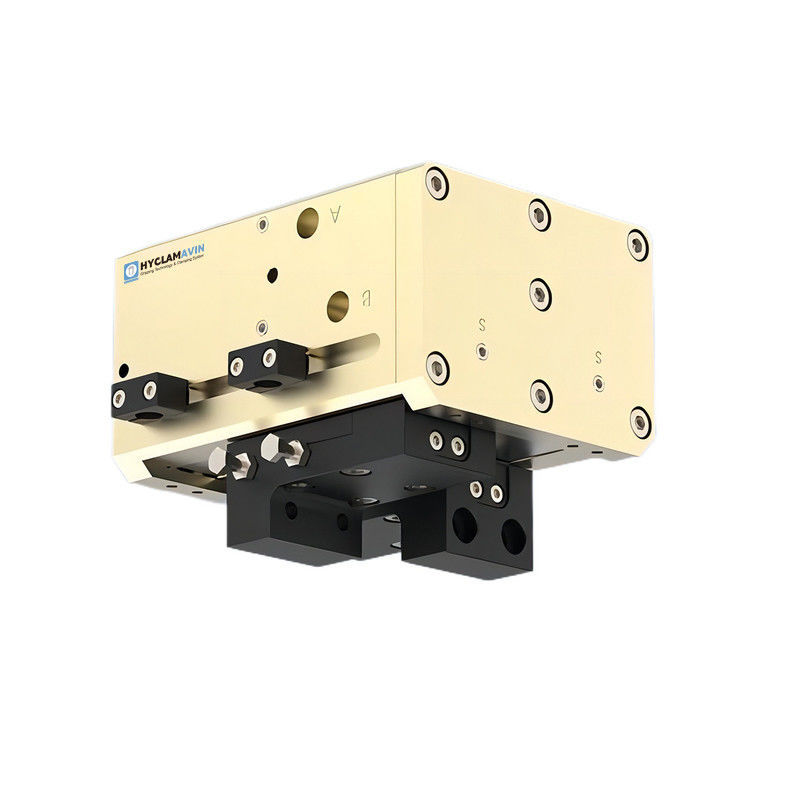

2-Jaw Pneumatic Parallel Long Stroke Gripper TFH
Product Information

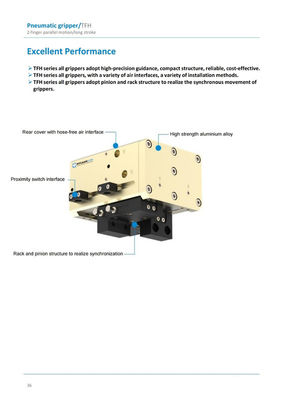

Excellent performance
1. TFH series all grippers adopt high-precision guidance, compact structure, reliable, cost-effective.
2. TFH series all grippers, with a variety of air interfaces, a variety of installation methods.
3. TFH series all grippers adopt pinion and rack structure to realize the synchronous movement of grippers.
Model and Technical Parameters
|
Model |
Stroke per jaw[mm] |
Closing/ opening force[N] |
Min. Spring force[N] |
Weight[kg] |
Recommended workpiece weight[kg] |
Closing/ opening time[s] |
Repeat accuracy [mm] |
Protection class IP |
|
TFH-30A-1 |
30 |
750/680 |
|
2.6 |
3.75 |
0.30/0.30 |
0.05 |
41 |
|
TFH-30A-1-AS |
30 |
840/- |
90 |
2.7 |
3.75 |
0.35/0.35 |
0.05 |
41 |
|
TFH-40A-1 |
40 |
1280/1120 |
|
4.7 |
6.4 |
0.30/0.30 |
0.05 |
41 |
|
TFH-40A-1-AS |
40 |
1560/- |
280 |
4.8 |
6.4 |
0.30/0.40 |
0.05 |
41 |
|
TFH-40A-1-IS |
40 |
-/1400 |
280 |
4.8 |
6.4 |
0.40/0.30 |
0.05 |
41 |
|
TFH-50A-1 |
50 |
2620/2350 |
|
9.5 |
13.1 |
0.70/0.70 |
0.05 |
41 |
|
TFH-50A-1-AS |
50 |
2970/- |
350 |
9.6 |
13.1 |
0.60/0.80 |
0.05 |
41 |
|
TFH-50A-1-IS |
50 |
-/2700 |
350 |
9.6 |
13.1 |
0.80/0.60 |
0.05 |
41 |
