Product Details:
Payment & Shipping Terms:
|
| Max Pressure: | 8 Bar | Operating Pressure: | 0.5-0.7 MPa |
|---|---|---|---|
| Gripping Force: | High | Application: | Industrial Automation |
| Model: | TPL-70A | Stroke Length: | Long |
| Stroke Per Jaw: | 6 Mm-40 Mm | Mounting: | Side |
| Protection Class Ip: | 40 | Actuation: | Pneumatic |
| Jaw Travel: | 80 Mm | Sensor Type: | Inductive |
| Maximum Pressure: | 1.0 MPa | Protection Class: | IP54 |
| Number Of Jaws: | 2 |

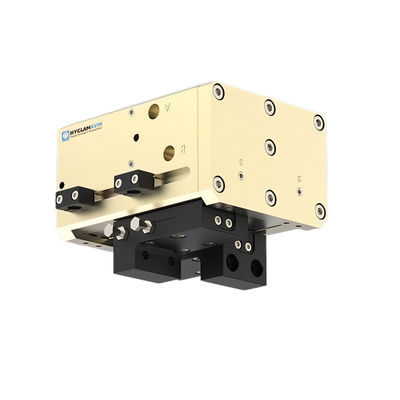

2-Jaw Pneumatic Parallel Long Stroke Gripper TFH
Product Information
Excellent performance
All grippers in the TFH series feature high-precision guidance, compact design, reliable performance, and excellent cost-effectiveness.
TFH series grippers offer multiple pneumatic interfaces and versatile mounting options.

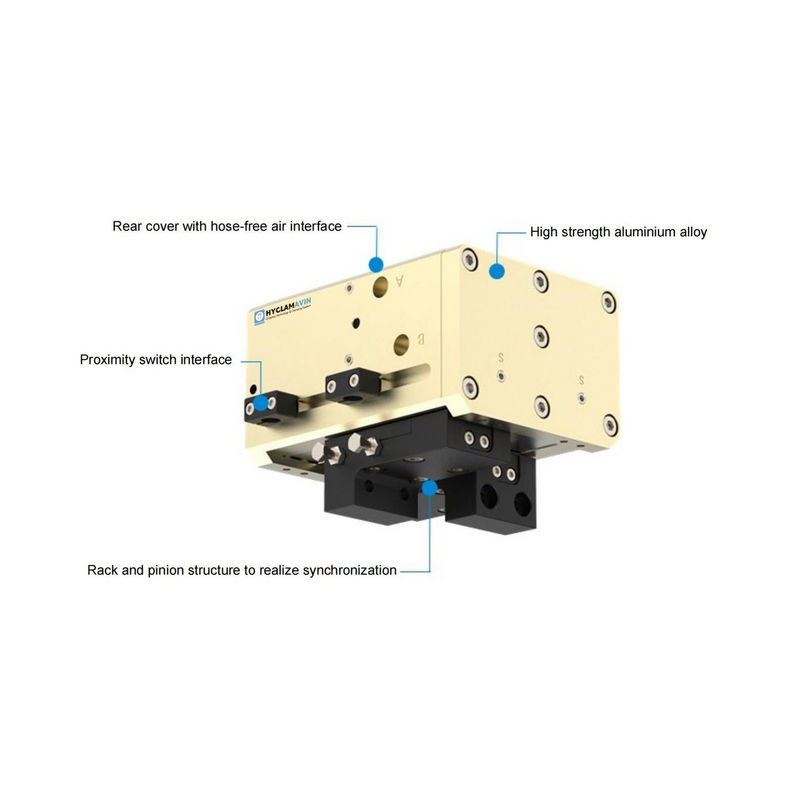

TFH series grippers utilize a pinion-and-rack mechanism to ensure synchronized gripping movement.
Model and Technical Parameters
|
Model |
Stroke per jaw[mm] |
Closing/ opening force[N] |
Min. Spring force[N] |
Weight[kg] |
Recommended workpiece weight[kg] |
Closing/ opening time[s] |
Repeat accuracy [mm] |
Protection class IP |
|
TFH-30A-1 |
30 |
750/680 |
|
2.6 |
3.75 |
0.30/0.30 |
0.05 |
41 |
|
TFH-30A-1-AS |
30 |
840/- |
90 |
2.7 |
3.75 |
0.35/0.35 |
0.05 |
41 |
|
TFH-40A-1 |
40 |
1280/1120 |
|
4.7 |
6.4 |
0.30/0.30 |
0.05 |
41 |
|
TFH-40A-1-AS |
40 |
1560/- |
280 |
4.8 |
6.4 |
0.30/0.40 |
0.05 |
41 |
|
TFH-40A-1-IS |
40 |
-/1400 |
280 |
4.8 |
6.4 |
0.40/0.30 |
0.05 |
41 |
|
TFH-50A-1 |
50 |
2620/2350 |
|
9.5 |
13.1 |
0.70/0.70 |
0.05 |
41 |
|
TFH-50A-1-AS |
50 |
2970/- |
350 |
9.6 |
13.1 |
0.60/0.80 |
0.05 |
41 |
|
TFH-50A-1-IS |
50 |
-/2700 |
350 |
9.6 |
13.1 |
0.80/0.60 |
0.05 |
41 |
