Product Details:
Payment & Shipping Terms:
|
| Model: | TFH | Jaw Opening: | Adjustable |
|---|---|---|---|
| Protection Class IP: | 41 | Finger Material: | Steel |
| Stroke: | Long | Jaw Type: | 2-Jaw |
| Material: | Aluminum Alloy | Number Of Jaws: | 2 |
| Grip Force: | High |

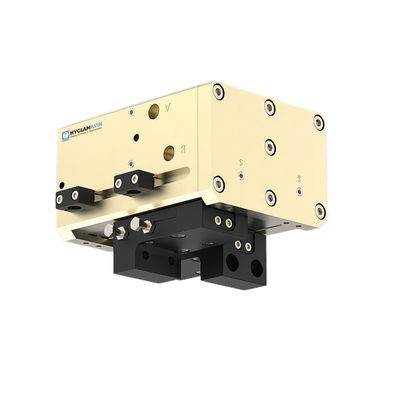

2-Jaw Pneumatic Parallel Long Stroke Gripper TFH
Product Information

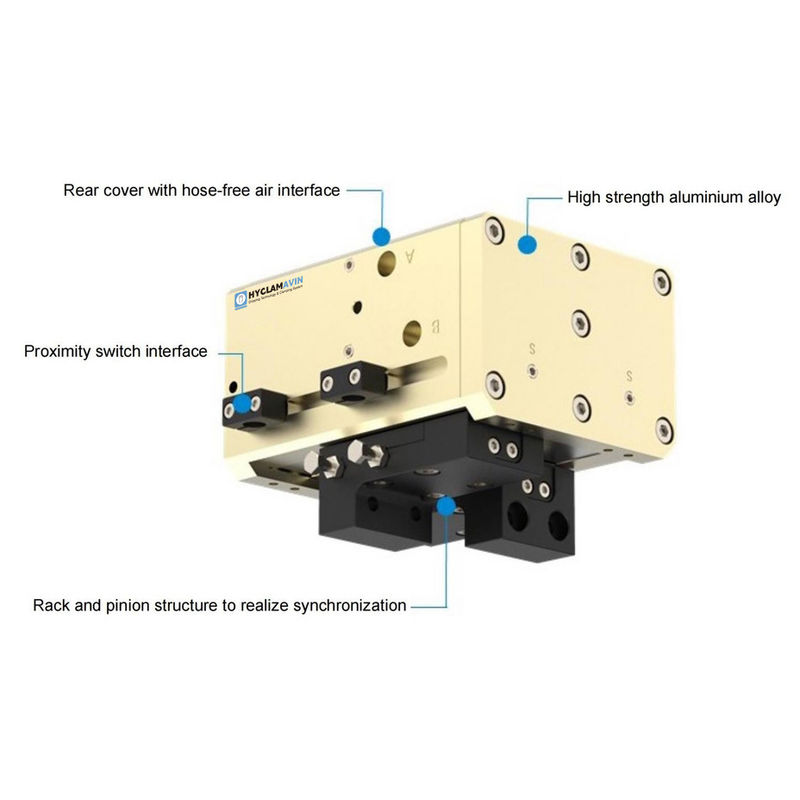

Excellent performance
The TFH series grippers are equipped with high-precision guidance systems, a compact build, dependable operation, and economical value.
Various air connection types and installation methods are available for all TFH series grippers.
A rack and pinion drive structure enables synchronized action across all TFH series grippers.
Model and Technical Parameters
|
Model |
Stroke per jaw[mm] |
Closing/ opening force[N] |
Min. Spring force[N] |
Weight[kg] |
Recommended workpiece weight[kg] |
Closing/ opening time[s] |
Repeat accuracy [mm] |
Protection class IP |
|
TFH-30A-1 |
30 |
750/680 |
|
2.6 |
3.75 |
0.30/0.30 |
0.05 |
41 |
|
TFH-30A-1-AS |
30 |
840/- |
90 |
2.7 |
3.75 |
0.35/0.35 |
0.05 |
41 |
|
TFH-40A-1 |
40 |
1280/1120 |
|
4.7 |
6.4 |
0.30/0.30 |
0.05 |
41 |
|
TFH-40A-1-AS |
40 |
1560/- |
280 |
4.8 |
6.4 |
0.30/0.40 |
0.05 |
41 |
|
TFH-40A-1-IS |
40 |
-/1400 |
280 |
4.8 |
6.4 |
0.40/0.30 |
0.05 |
41 |
|
TFH-50A-1 |
50 |
2620/2350 |
|
9.5 |
13.1 |
0.70/0.70 |
0.05 |
41 |
|
TFH-50A-1-AS |
50 |
2970/- |
350 |
9.6 |
13.1 |
0.60/0.80 |
0.05 |
41 |
|
TFH-50A-1-IS |
50 |
-/2700 |
350 |
9.6 |
13.1 |
0.80/0.60 |
0.05 |
41 |
