| Gripper Weight: | 4.5-9.1 Kgs | Recommended Workpiece Weight: | 8.95-22.5 Kgs |
|---|---|---|---|
| Stroke Per Jaw: | 40 Mm-70 Mm | Actuation: | Pneumatic |
| Material: | Steel | Gripping Force: | High |
| Number Of Jaws: | 2 | Operating Pressure: | 2.5-8 Bar |
| Manufacturer: | Hyclamavin | Operating Temperature: | 5-90°C |
| Jaw Type: | Parallel | Protection Class: | IP40 |
| Repeat Accuracy: | 0.02mm | ||
| Highlight: | long stroke pneumatic gripper tpl,tpl pneumatic grippers for robots,2 jaw long stroke pneumatic gripper |
||

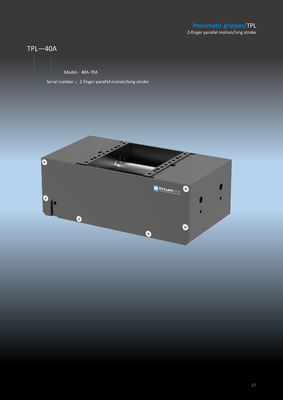

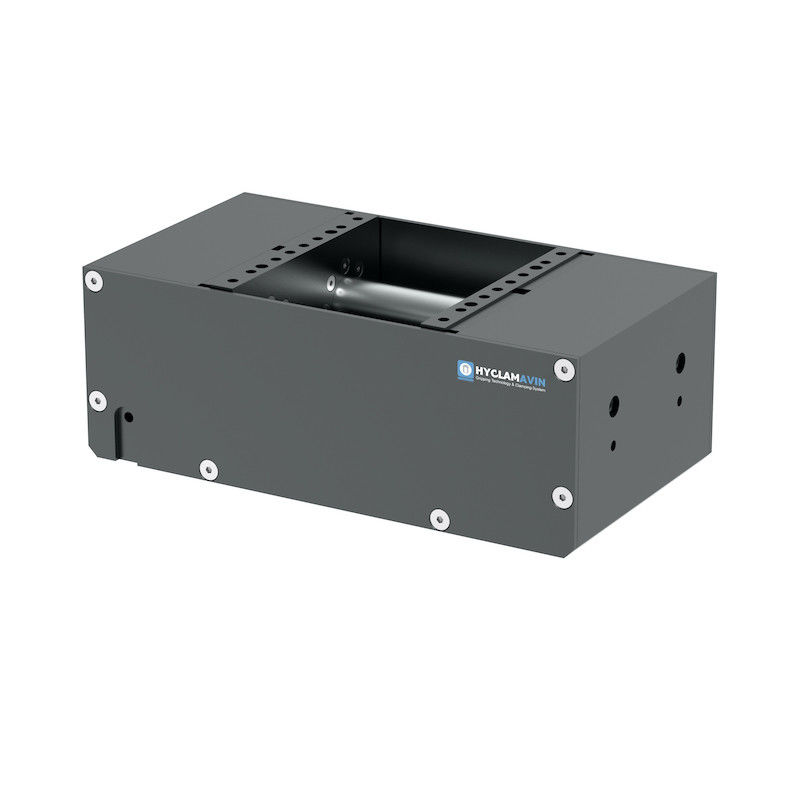

2-Jaw Pneumatic Parallel Long Stroke Gripper TPL
Product Information

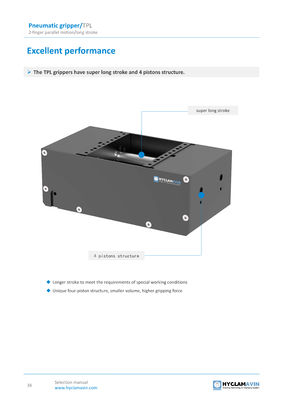

Excellent performance
1. The TPL grippers have super long stroke and 4 pistons structure.
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protection class IP |
| TPL-40A | 40 | 1790/1050 | 4.5 | 8.95 | 0.40/0.40 | 0.02 | 40 |
| TPL-70A | 70 | 4450/2940 | 9.1 | 22.25 | 0.70/0.70 | 0.02 | 40 |
