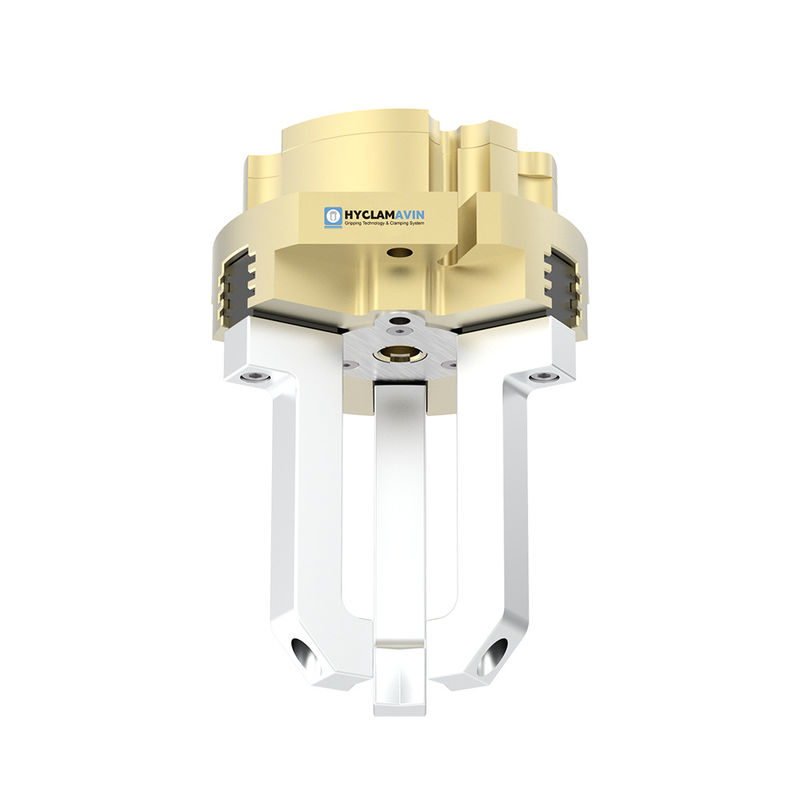

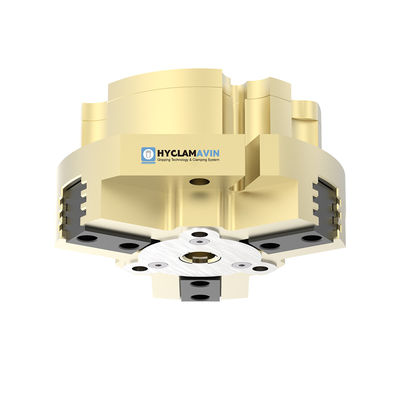

Product Details:
Payment & Shipping Terms:
|
| Maximum Gripping Force: | THB | Operating Pressure: | 0.5-0.7MPa |
|---|---|---|---|
| Weight: | 0.26kg-52kg(Depending On The Specific Model) | Mounting Type: | Direct Mount |
| Maximum Operating Speed: | 500mm/s | Type: | Pneumatic |
| Repeatability: | ±0.02mm | Number Of Jaws: | 3 |
| Gripper Style: | Parallel | Gripping Range: | 0-50mm |
| Application: | Assembly, Pick And Place, Packaging, Machine Tending | Material: | Aluminum Alloy |
| Jaw Material: | Stainless Steel | ||
| Highlight: | 3 jaw pneumatic gripper thb,thb stainless steel pneumatic gripper,hollow 3 jaw pneumatic gripper |
||
High-Performance Features
The compact design is perfect for short stroke applications and heavy loads.
Load is spread over more surfaces, minimizing contact stress.
Grease is distributed quickly and uniformly.
Guarantees motion rigidity and precision over extended periods.
The multi-tooth guide's oil storage feature helps extend the gripper's lifespan.
The central hole accommodates tubular or rod-shaped parts.
Internal threads in the central hole facilitate easy accessory mounting.
Gripping force maintenance-AS/IS
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Min. spring force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protection class IP |
| THB-50A-1 | 2.5 | 370/400 | 0.26 | 1.85 | 0.03/0.03 | 0.01 | 40 | |
| THB-50A-1-AS | 2.5 | 490/- | 120 | 0.36 | 1.85 | 0.02/0.04 | 0.01 | 40 |
| THB-50A-1-IS | 2.5 | -/540 | 140 | 0.36 | 1.85 | 0.04/0.02 | 0.01 | 40/64 |
| THB-64A-1 | 4 | 550/650 | 0.5 | 2.75 | 0.03/0.03 | 0.01 | 40 | |
| THB-64A-1-AS | 4 | 680/- | 130 | 0.62 | 2.75 | 0.02/0.04 | 0.01 | 40 |
| THB-64A-1-IS | 4 | -/820 | 170 | 0.62 | 2.75 | 0.04/0.02 | 0.01 | 40 |
| THB-64A-2 | 2 | 910/930 | 0.5 | 4.55 | 0.03/0.03 | 0.01 | 40 | |
| THB-64A-2-AS | 2 | 1190/- | 280 | 0.62 | 4.55 | 0.02/0.04 | 0.01 | 40 |
| THB-64A-2-IS | 2 | -/1210 | 280 | 0.62 | 4.55 | 0.04/0.02 | 0.01 | 40/64 |
| THB-80A-1 | 6 | 900/1000 | 0.8 | 4.5 | 0.05/0.05 | 0.01 | 40 | |
| THB-80A-1-AS | 6 | 1120/- | 220 | 1.1 | 4.5 | 0.04/0.06 | 0.01 | 40 |
| THB-80A-1-IS | 6 | -/1200 | 200 | 1.1 | 4.5 | 0.06/0.04 | 0.01 | 40 |
| THB-80A-2 | 3 | 1370/1520 | 0.8 | 6.8 | 0.05/0.05 | 0.01 | 40 | |
| THB-80A-2-AS | 3 | 1730/- | 360 | 1.1 | 6.8 | 0.04/0.06 | 0.01 | 40 |
| THB-80A-2-IS | 3 | -/1920 | 400 | 1.1 | 6.8 | 0.06/0.04 | 0.01 | 40/64 |
| THB-100A-1 | 8 | 1700/1920 | 1.45 | 8.5 | 0.10/0.10 | 0.01 | 40 | |
| THB-100A-1-AS | 8 | 2200/- | 500 | 2.2 | 8.5 | 0.10/0.20 | 0.01 | 40 |
| THB-100A-1-IS | 8 | -/2600 | 680 | 2.2 | 8.5 | 0.20/0.10 | 0.01 | 40 |
| THB-100A-2 | 4 | 3400/3630 | 1.45 | 17 | 0.10/0.10 | 0.01 | 40 | |
| THB-100A-2-AS | 4 | 4300/- | 900 | 2.2 | 17 | 0.10/0.20 | 0.01 | 40 |
| THB-100A-2-IS | 4 | -/5130 | 1500 | 2.2 | 17 | 0.20/0.10 | 0.01 | 40 |
| THB-125A-1 | 10 | 3100/3500 | 2.4 | 15.5 | 0.20/0.20 | 0.01 | 40 | |
| THB-125A-1-AS | 10 | 3750/- | 650 | 3.9 | 15.5 | 0.17/0.35 | 0.01 | 40 |
| THB-125A-1-IS | 10 | -/4250 | 750 | 3.9 | 15.5 | 0.35/0.17 | 0.01 | 40 |
| THB-125A-2 | 5 | 5400/6100 | 2.4 | 27 | 0.20/0.20 | 0.01 | 40 | |
| THB-160A-1 | 13 | 4600/6000 | 4.7 | 23 | 0.50/0.50 | 0.02 | 40 | |
| THB-160A-1-AS | 13 | 5400/- | 900 | 7.2 | 23 | 0.40/0.80 | 0.02 | 40 |
| THB-160A-1-IS | 13 | -/7500 | 1500 | 7.2 | 23 | 0.80/0.40 | 0.02 | 40 |
| THB-300A-1 | 35 | 13000/13800 | 37 | 65 | 1.30/1.30 | 0.05 | 40 | |
| THB-300A-1-AS | 35 | 17400/- | 4400 | 52 | 65 | 1.20/2.50 | 0.05 | 40 |
| THB-300A-1-IS | 35 | -/17400 | 3600 | 52 | 65 | 2.50/1.20 | 0.05 | 40 |
| THB-300A-2 | 20 | 22000/23500 | 37 | 110 | 1.30/1.30 | 0.05 | 40 | |
| THB-300A-2-AS | 20 | 29700/- | 7700 | 52 | 110 | 1.20/2.50 | 0.05 | 40 |
| THB-300A-2-IS | 20 | -/29800 | 6300 | 52 | 110 | 2.50/1.20 | 0.05 | 40 |
