THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection

THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection
THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection

Large Image :  THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: THN-C
Payment & Shipping Terms:
Minimum Order Quantity: 1 pce
Price: USD, 480-8000, PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Gripping Range: Adjustable Mounting Type: Flanged Joint
Actuation: Pneumatic Material: Steel
Gripping Force: High Number Of Jaws: 3
Operating Pressure: 2.5-8 Bar Manufacturer: Hyclamavin
Operating Temperature: 5-90°C Weight: 0.13-77 Kg
Stroke Per Jaw: 2.5 Mm-45 Mm Jaw Type: Parallel
Protection Class: IP40/IP64 Repeat Accuracy: 0.01mm
Recommended Workpiece Weight: 1.47-269 Kg
Highlight:

thn-c pneumatic gripper 3 jaw

,

robot eoat gripper ip40

,

3 jaw robot eoat gripper

3-Jaw Parallel Grippers, Multi-Tooth Guidance THN-C



Product Information

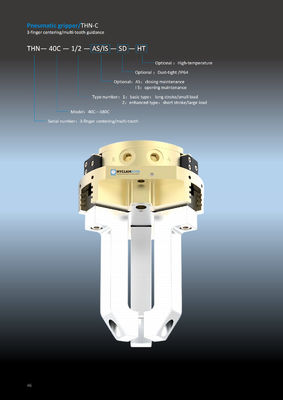

THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection 0

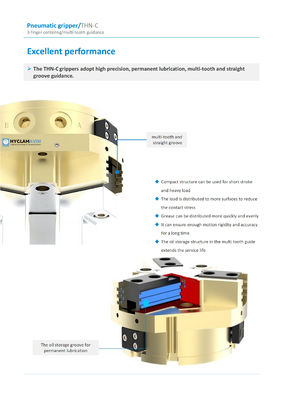

Excellent performance



1. The THN-C grippers adopt high precision, permanent lubrication, multi-tooth and straight groove guidance.

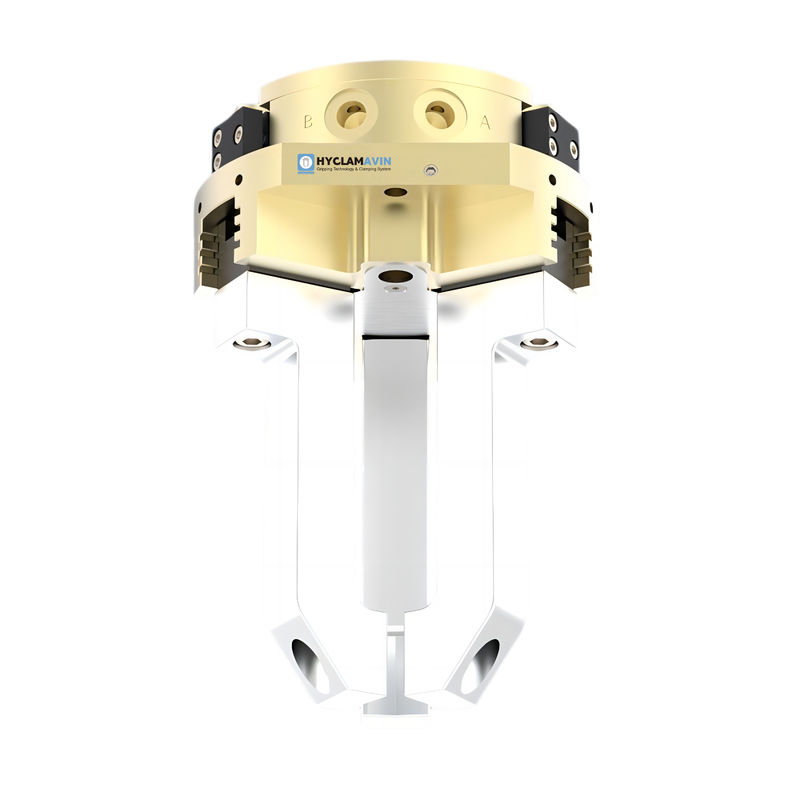

THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection 1

THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection 2



  • Compact structure can be used for short stroke and heavy load
  • The load is distributed to more surfaces to reduce the contact stress
  • Grease can be distributed more quickly and evenly
  • It can ensure enough motion rigidity and accuracy for a long time
  • The oil storage structure in the multi tooth guide extends the service life

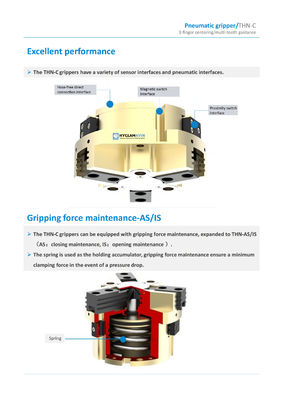

2. The THN-C grippers have a variety of sensor interfaces and pneumatic interfaces.

THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection 3



Gripping force maintenance-AS/IS

THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection 4



(1)The THN-C grippers can be equipped with gripping force maintenance, expanded to THN-C-AS/IS (AS: closing maintenance, IS: opening maintenance).



(2)The spring is used as the holding accumulator, gripping force maintenance ensure a minimum clamping force in the event of a pressure drop.

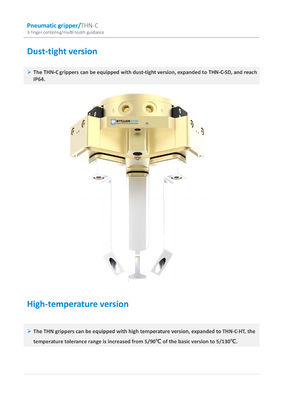

Dust-tight version

THN-C Pneumatic Gripper 3 Jaw Robot Eoat Gripper IP40 IP64 Protection 5

The THN grippers can be equipped with dust-tight version, expanded to THN-C-SD, and reach IP64.



High-temperature version



The THN grippers can be equipped with high temperature version, expanded to THN-C-HT, the temperature tolerance range is increased from 5/90℃ of the basic version to 5/130℃.

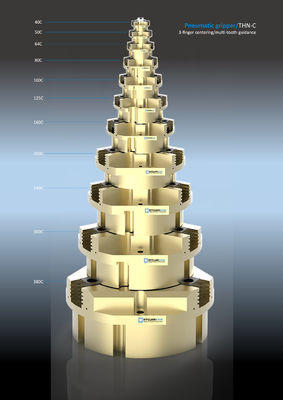

Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protection class IP
THN-40C-1 2.5 295/325   0.13 1.47 0.03/0.03 0.01 40/64
THN-40C-1-AS 2.5 395/- 100 0.15 1.47 0.02/0.04 0.01 40/64
THN-40C-1-IS 2.5 -/425 100 0.15 1.47 0.04/0.02 0.01 40/64
THN-50C-1 4 385/430   0.24 1.92 0.03/0.03 0.01 40/64
THN-50C-1-AS 4 505/- 120 0.35 1.92 0.02/0.04 0.01 40/64
THN-50C-1-IS 4 -/580 150 0.35 1.92 0.04/0.02 0.01 40/64
THN-50C-2 2 800/890   0.24 4 0.03/0.03 0.01 40/64
THN-50C-2-AS 2 1045/- 245 0.35 4 0.02/0.04 0.01 40/64
THN-50C-2-IS 2 -/1200 310 0.35 4 0.04/0.02 0.01 40/64
THN-64C-1 6 700/750   0.41 3.5 0.03/0.03 0.01 40/64
THN-64C-1-AS 6 885/- 185 0.54 3.5 0.02/0.04 0.01 40/64
THN-64C-1-IS 6 -/970 220 0.54 3.5 0.04/0.02 0.01 40/64
THN-64C-2 3 1190/1270   0.41 5.95 0.03/0.03 0.01 40/64
THN-64C-2-AS 3 1505/- 315 0.54 5.95 0.02/0.04 0.01 40/64
THN-64C-2-IS 3 -/1730 460 0.54 5.95 0.04/0.02 0.01 40/64
THN-80C-1 8 1250/1400   0.7 6.25 0.05/0.05 0.01 40/64
THN-80C-1-AS 8 1600/- 350 0.95 6.25 0.03/0.05 0.01 40/64
THN-80C-1-IS 8 -/1770 370 0.95 6.25 0.06/0.04 0.01 40/64
THN-80C-2 4 2600/2900   0.7 13 0.05/0.05 0.01 40/64
THN-80C-2-AS 4 3330/- 730 0.95 13 0.03/0.05 0.01 40/64
THN-80C-2-IS 4 -/3660 760 0.95 13 0.06/0.04 0.01 40/64
THN-100C-1 10 2200/2400   1.4 11 0.10/0.10 0.01 40/64
THN-100C-1-AS 10 2920/- 720 1.95 11 0.10/0.20 0.01 40/64
THN-100C-1-IS 10 -/3180 780 1.95 11 0.20/0.10 0.01 40/64
THN-100C-2 5 4800/5300   1.4 24 0.10/0.10 0.01 40/64
THN-100C-2-AS 5 6300/- 1500 1.95 24 0.10/0.20 0.01 40/64
THN-100C-2-IS 5 -/6920 1620 1.95 24 0.20/0.10 0.01 40/64
THN-125C-1 13 3700/4000   2.1 18.5 0.20/0.20 0.01 40/64
THN-125C-1-AS 13 4750/- 1050 3.3 18.5 0.17/0.35 0.01 40/64
THN-125C-1-IS 13 -/5070 1070 3.3 18.5 0.35/0.17 0.01 40/64
THN-125C-2 6 6900/7500   2.1 34.5 0.20/0.20 0.01 40/64
THN-125C-2-AS 6 9070/- 2170 3.3 34.5 0.17/0.35 0.01 40/64
THN-125C-2-IS 6 -/9710 2210 3.3 34.5 0.35/0.17 0.01 40/64
THN-135C-1 35 3700/4000   4.9 18.5 1.30/1.30 0.01 40/64
THN-160C-1 16 5000/5400   4.35 25 0.50/0.50 0.02 40/64
THN-160C-1-AS 16 6990/- 1990 7.5 25 0.40/0.80 0.02 40/64
THN-160C-1-IS 16 -/7490 2090 7.5 25 0.80/0.40 0.02 40/64
THN-160C-2 8 9200/9930   4.35 46 0.50/0.50 0.02 40/64
THN-160C-2-AS 8 13210/- 4010 7.5 46 0.40/0.80 0.02 40/64
THN-160C-2-IS 8 -/14270 4340 7.5 46 0.80/0.40 0.02 40/64
THN-200C-1 25 8200/8700   10.5 41 1.20/1.20 0.05 40/64
THN-200C-1-AS 25 10900/- 2700 15.5 41 1.00/1.50 0.05 40/64
THN-200C-1-IS 25 -/11660 2960 15.5 41 1.50/1.00 0.05 40/64
THN-200C-2 14 14600/15500   10.5 73 1.20/1.20 0.05 40/64
THN-200C-2-AS 14 19280/- 4680 15.5 73 1.00/1.50 0.05 40/64
THN-200C-2-IS 14 -/20500 5000 15.5 73 1.50/1.00 0.05 40/64
THN-240C-1 30 9500/10000   14.5 47.5 1.25/1.25 0.05 40/64
THN-240C-1-AS 30 13720/- 4220 20 47.5 1.10/2.10 0.05 40/64
THN-240C-1-IS 30 -/14770 4770 20 47.5 1.70/1.10 0.05 40/64
THN-240C-2 17 19700/20700   14.5 98.5 1.25/1.25 0.05 40/64
THN-240C-2-AS 17 26500/- 6800 20 98.5 1.10/2.10 0.05 40/64
THN-240C-2-IS 17 -/27900 7200 20 98.5 1.70/1.10 0.05 40/64
THN-300C-1 35 17200/17900   32 86 1.30/1.30 0.05 40/64
THN-300C-1-AS 35 23700/- 6500 43 86 1.20/2.50 0.05 40/64
THN-300C-1-IS 35 -/25400 7500 43 86 2.00/1.20 0.05 40/64
THN-300C-2 20 30300/31500   32 151 1.30/1.30 0.05 40/64
THN-300C-2-AS 20 40300/- 10000 43 151 1.20/2.50 0.05 40/64
THN-300C-2-IS 20 -/42000 10500 43 151 2.00/1.20 0.05 40/64
THN-380C-1 45 29000/29900   64 145 2.20/2.20 0.05 40/64
THN-380C-1-AS 45 35400/- 6400 75 145 1.90/3.00 0.05 40/64
THN-380C-1-IS 45 -/36400 6500 75 145 4.60/1.90 0.05 40/64
THN-380C-2 26 53900/55600   66 269 2.20/2.20 0.05 40/64
THN-380C-2-AS 26 65800/- 11900 77 269 1.90/3.00 0.05 40/64
THN-380C-2-IS 26 -/67600 12000 77 269 4.60/1.90 0.05 40/64



3 jaw parallel grippers, multi-tooth guidance thn, China, suppliers, manufacturers, factory, custom, price, design, parallel air gripper, heavy duty pneumatic gripper, 3 jaw air grippers, collaborative gripper, Three Finger Pneumatic Gripper, eoat gripper, parallel grippers.
