| Operating Temperature: | Depends On Air Pressure | Gripper Style: | Parallel |
|---|---|---|---|
| Application: | Industrial Automation | Operating Pressure: | Depends On Air Pressure |
| Mounting Type: | Direct Mount | T-Slot Type: | T-Slot |
| Jaw Type: | 3-Jaw | Material: | Aluminum Alloy |
| Actuation: | Pneumatic | Weight: | Depends On Jaw Size |
| Gripping Force: | Depends On Air Pressure | Gripper Model: | THT-C |
| Gripper Type: | Pneumatic | Gripping Range: | Depends On Jaw Size |
| Highlight: | parallel pneumatic gripper 3 jaw,pneumatic gripper 3 jaw precision,precision pneumatic grippers for robots |
||

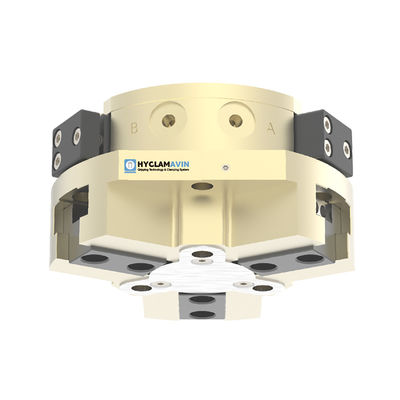

THT-C Precision Grippers with High-Performance T-Slot Guidance and Optional Gripping Force Maintenance
Product Introduction
Superior performance
1. The THT-C grippers are equipped with high-precision T-slot guidance, ensuring compactness, reliability, and cost-effectiveness.
● T-slot guidance, compact and reliable
● Economical gripper with higher cost performance
2. The THT-C grippers come with a range of sensor and pneumatic interfaces.
Gripping force maintenance-AS/IS
Gripping force maintenance can be added to THT-C grippers, extending to THT-C-AS/IS (AS: closing maintenance, IS: opening maintenance).
The spring acts as a holding accumulator, ensuring that the minimum clamping force is maintained even during pressure drops.
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Min. spring force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protection class IP |
| THT-40C-1 | 2.5 | 295/325 | 0.13 | 1.47 | 0.03/0.03 | 0.01 | 40 | |
| THT-40C-1-AS | 2.5 | 395/- | 100 | 0.15 | 1.47 | 0.02/0.04 | 0.01 | 40 |
| THT-40C-1-IS | 2.5 | -/425 | 100 | 0.15 | 1.47 | 0.04/0.02 | 0.01 | 40 |
| THT-50C-1 | 4 | 385/430 | 0.24 | 1.92 | 0.03/0.03 | 0.01 | 40 | |
| THT-50C-1-AS | 4 | 505/- | 120 | 0.35 | 1.92 | 0.02/0.04 | 0.01 | 40 |
| THT-50C-1-IS | 4 | -/580 | 150 | 0.35 | 1.92 | 0.04/0.02 | 0.01 | 40 |
| THT-64C-1 | 6 | 700/750 | 0.41 | 3.5 | 0.03/0.03 | 0.01 | 40 | |
| THT-64C-1-AS | 6 | 885/- | 185 | 0.54 | 3.5 | 0.02/0.04 | 0.01 | 40 |
| THT-64C-1-IS | 6 | -/970 | 220 | 0.54 | 3.5 | 0.04/0.02 | 0.01 | 40 |
| THT-80C-1 | 8 | 1250/1400 | 0.7 | 6.25 | 0.05/0.05 | 0.01 | 40 | |
| THT-80C-1-AS | 8 | 1600/- | 350 | 0.95 | 6.25 | 0.03/0.05 | 0.01 | 40 |
| THT-80C-1-IS | 8 | -/1770 | 370 | 0.95 | 6.25 | 0.06/0.04 | 0.01 | 40 |
| THT-100C-1 | 10 | 2200/2400 | 1.4 | 11 | 0.10/0.10 | 0.01 | 40 | |
| THT-100C-1-AS | 10 | 2920/- | 720 | 1.95 | 11 | 0.10/0.20 | 0.01 | 40 |
| THT-100C-1-IS | 10 | -/3180 | 780 | 1.95 | 11 | 0.20/0.10 | 0.01 | 40 |
| THT-125C-1 | 13 | 3700/4000 | 2.1 | 18.5 | 0.20/0.20 | 0.01 | 40 | |
| THT-125C-1-AS | 13 | 4750/- | 1050 | 3.3 | 18.5 | 0.17/0.35 | 0.01 | 40 |
| THT-125C-1-IS | 13 | -/5070 | 1070 | 3.3 | 18.5 | 0.35/0.17 | 0.01 | 40 |
| THT-135C-1 | 35 | 3700/4000 | 4.9 | 18.5 | 1.30/1.30 | 0.01 | 40 | |
| THT-160C-1 | 16 | 5000/5400 | 4.35 | 25 | 0.50/0.50 | 0.02 | 40 | |
| THT-160C-1-AS | 16 | 6990/- | 1990 | 7.5 | 25 | 0.40/0.80 | 0.02 | 40 |
| THT-160C-1-IS | 16 | -/7490 | 2090 | 7.5 | 25 | 0.80/0.40 | 0.02 | 40 |
| THT-240C-1 | 30 | 9500/10000 | 14.5 | 47.5 | 1.25/1.25 | 0.05 | 40 |
