Product Details:
Payment & Shipping Terms:
|

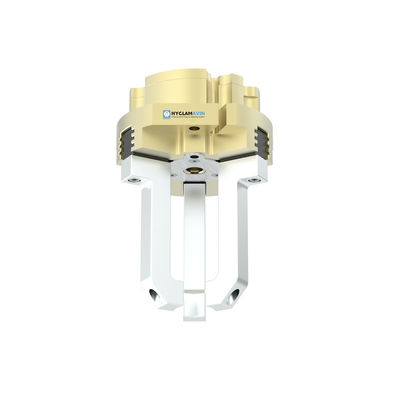

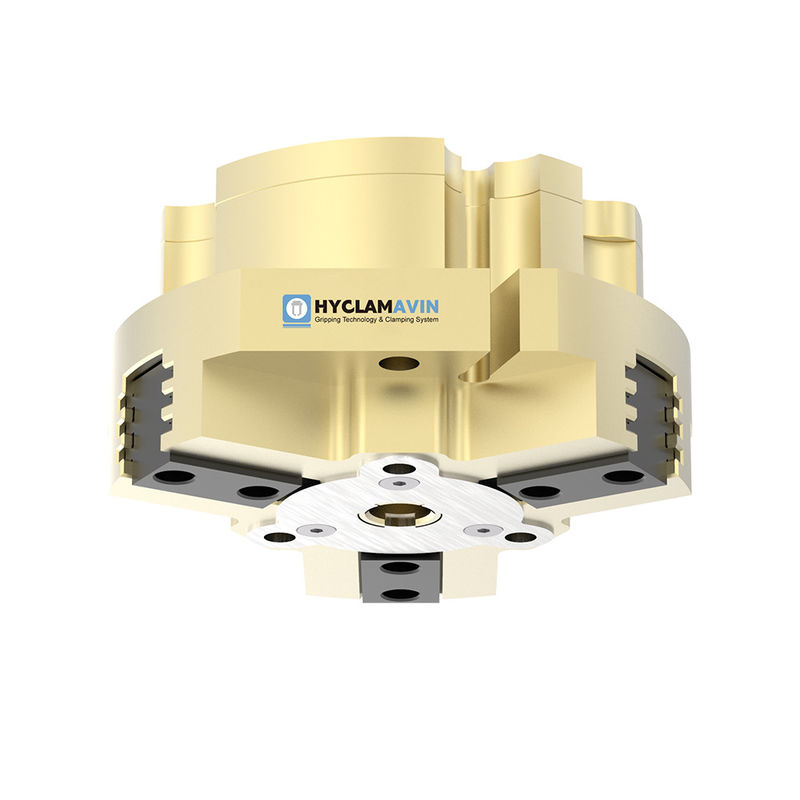

| Product_Name: | 3-Jaw Pneumatic Parallel Hollow Through Gripper THB | Manufacturer: | THB |
|---|---|---|---|
| Jaw_Type: | 3-Jaw | Jaw Opening: | Adjustable |
| Hollow Through: | Yes | Gripping Force: | High |
| Hollow_Type: | Through | Operating Pressure: | 0.5-0.7MPa |
| Operating Temperature: | 5-90°C | Gripper_Style: | Parallel |
| Weight: | 1.5kg | Stroke Per Jaw: | 2.5 Mm-20 Mm |
| Gripper_Type: | Pneumatic | ||
| Highlight: | Parallel Pneumatic Gripper In Robotics,Multi Tooth Parallel Pneumatic Gripper,Permanent Lubrication Parallel Pneumatic Gripper |
||
Superior Performance
The compact structure is ideal for short strokes and heavy-duty applications.
Load distribution across more surfaces reduces the contact stress.
Grease is distributed efficiently and evenly.
Ensures long-term motion stability and accuracy.
The multi-tooth guide with integrated oil storage extends service life.
The central hole allows passage for tubular or rod-shaped components.
Internal threading in the central hole makes accessory installation convenient.
Gripping force maintenance-AS/IS
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Min. spring force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protection class IP |
| THB-50A-1 | 2.5 | 370/400 | 0.26 | 1.85 | 0.03/0.03 | 0.01 | 40 | |
| THB-50A-1-AS | 2.5 | 490/- | 120 | 0.36 | 1.85 | 0.02/0.04 | 0.01 | 40 |
| THB-50A-1-IS | 2.5 | -/540 | 140 | 0.36 | 1.85 | 0.04/0.02 | 0.01 | 40/64 |
| THB-64A-1 | 4 | 550/650 | 0.5 | 2.75 | 0.03/0.03 | 0.01 | 40 | |
| THB-64A-1-AS | 4 | 680/- | 130 | 0.62 | 2.75 | 0.02/0.04 | 0.01 | 40 |
| THB-64A-1-IS | 4 | -/820 | 170 | 0.62 | 2.75 | 0.04/0.02 | 0.01 | 40 |
| THB-64A-2 | 2 | 910/930 | 0.5 | 4.55 | 0.03/0.03 | 0.01 | 40 | |
| THB-64A-2-AS | 2 | 1190/- | 280 | 0.62 | 4.55 | 0.02/0.04 | 0.01 | 40 |
| THB-64A-2-IS | 2 | -/1210 | 280 | 0.62 | 4.55 | 0.04/0.02 | 0.01 | 40/64 |
| THB-80A-1 | 6 | 900/1000 | 0.8 | 4.5 | 0.05/0.05 | 0.01 | 40 | |
| THB-80A-1-AS | 6 | 1120/- | 220 | 1.1 | 4.5 | 0.04/0.06 | 0.01 | 40 |
| THB-80A-1-IS | 6 | -/1200 | 200 | 1.1 | 4.5 | 0.06/0.04 | 0.01 | 40 |
| THB-80A-2 | 3 | 1370/1520 | 0.8 | 6.8 | 0.05/0.05 | 0.01 | 40 | |
| THB-80A-2-AS | 3 | 1730/- | 360 | 1.1 | 6.8 | 0.04/0.06 | 0.01 | 40 |
| THB-80A-2-IS | 3 | -/1920 | 400 | 1.1 | 6.8 | 0.06/0.04 | 0.01 | 40/64 |
| THB-100A-1 | 8 | 1700/1920 | 1.45 | 8.5 | 0.10/0.10 | 0.01 | 40 | |
| THB-100A-1-AS | 8 | 2200/- | 500 | 2.2 | 8.5 | 0.10/0.20 | 0.01 | 40 |
| THB-100A-1-IS | 8 | -/2600 | 680 | 2.2 | 8.5 | 0.20/0.10 | 0.01 | 40 |
| THB-100A-2 | 4 | 3400/3630 | 1.45 | 17 | 0.10/0.10 | 0.01 | 40 | |
| THB-100A-2-AS | 4 | 4300/- | 900 | 2.2 | 17 | 0.10/0.20 | 0.01 | 40 |
| THB-100A-2-IS | 4 | -/5130 | 1500 | 2.2 | 17 | 0.20/0.10 | 0.01 | 40 |
| THB-125A-1 | 10 | 3100/3500 | 2.4 | 15.5 | 0.20/0.20 | 0.01 | 40 | |
| THB-125A-1-AS | 10 | 3750/- | 650 | 3.9 | 15.5 | 0.17/0.35 | 0.01 | 40 |
| THB-125A-1-IS | 10 | -/4250 | 750 | 3.9 | 15.5 | 0.35/0.17 | 0.01 | 40 |
| THB-125A-2 | 5 | 5400/6100 | 2.4 | 27 | 0.20/0.20 | 0.01 | 40 | |
| THB-160A-1 | 13 | 4600/6000 | 4.7 | 23 | 0.50/0.50 | 0.02 | 40 | |
| THB-160A-1-AS | 13 | 5400/- | 900 | 7.2 | 23 | 0.40/0.80 | 0.02 | 40 |
| THB-160A-1-IS | 13 | -/7500 | 1500 | 7.2 | 23 | 0.80/0.40 | 0.02 | 40 |
| THB-300A-1 | 35 | 13000/13800 | 37 | 65 | 1.30/1.30 | 0.05 | 40 | |
| THB-300A-1-AS | 35 | 17400/- | 4400 | 52 | 65 | 1.20/2.50 | 0.05 | 40 |
| THB-300A-1-IS | 35 | -/17400 | 3600 | 52 | 65 | 2.50/1.20 | 0.05 | 40 |
| THB-300A-2 | 20 | 22000/23500 | 37 | 110 | 1.30/1.30 | 0.05 | 40 | |
| THB-300A-2-AS | 20 | 29700/- | 7700 | 52 | 110 | 1.20/2.50 | 0.05 | 40 |
| THB-300A-2-IS | 20 | -/29800 | 6300 | 52 | 110 | 2.50/1.20 | 0.05 | 40 |
