Home ProductsTwo Jaw Parallel Pneumatic Gripper

Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM

All Products
Two Jaw Parallel Pneumatic Gripper (34)
Long Stroke Pneumatic Gripper (14)
Pneumatic Angular Gripper (4)
3 Jaw Pneumatic Gripper (16)
Quick Tool Changer (13)
Certification
China Shanghai Grand Intelligent Machinery Co., Ltd., certification
I'm Online Chat Now

Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM

Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM
Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM

Large Image :  Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: TPG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD10.00-50.00/PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Product_Name: 2-Jaw Pneumatic Parallel Multi-Tooth IP67 Gripper TPG Jaw_Type: 2-jaw
Tooth_Type: Multi-tooth Protection_Rating: IP67
Gripping_Force: TPG Actuation_Type: Pneumatic
Gripper_Type: Parallel Weight Class: Heavy Duty Capability
Closing/Opening Speed: Fast Actuation Speed Service Life: Extended Service Life
Highlight:

Straight Groove Two Jaw Gripper

,

Two Jaw Gripper Pneumatic Parallel

,

Pneumatic Parallel Jaw Gripper OEM

2-Jaw Pneumatic Parallel High IP Class Gripper IP67 Multi-tooth Guidance TPG

Durable TPG Grippers with Straight Groove Guidance, Oil Storage System, and Superior Load Distribution for Extended Service Life



Product Information

Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM 0



Exceptional Performance



1. TPG grippers are designed with high precision, permanent lubrication, and multi-tooth guidance with a straight groove design.

Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM 1

  • The multi-tooth internal guidance offers robust support for heavy loads.

  • The load is distributed over more surfaces, reducing contact stress.

  • An external lip seal ensures the gripper is permanently sealed and secure.

  • Provides consistent motion rigidity and precision for extended periods.

  • The oil storage system in the multi-tooth guide enhances the service life of the gripper.

  • TPG grippers are rated IP67 for protection.

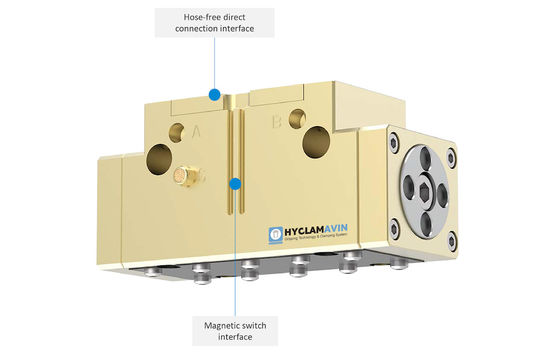

2. TPG grippers feature a magnetic switch interface and various pneumatic connection options.

3. The protection rating of TPG grippers is IP67.

Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM 2





High-temperature version-HT

The TPG grippers can also be upgraded to a high-temperature version (TPG-HT), which extends the temperature tolerance from the standard 5/90°C range to 5/130°C.





Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protecti on class IP
TPG-40A-1 2.5 130/140   0.12 0.65 0.03/0.03 0.01 67
TPG-40A-1-AS 2.5 173/- 43 0.14 0.65 0.03/0.05 0.01 67
TPG-40A-1-IS 2.5 -/193 53 0.14 0.65 0.05/0.03 0.01 67
TPG-50A-1 4 150/160   0.25 0.75 0.03/0.03 0.01 67
TPG-50A-1-AS 4 198/- 48 0.3 0.75 0.03/0.05 0.01 67
TPG-50A-1-IS 4 -/208 48 0.3 0.75 0.05/0.03 0.01 67
TPG-50A-2 2 308/330   0.25 1.54 0.03/0.03 0.01 67
TPG-50A-2-AS 2 408/- 100 0.3 1.54 0.03/0.05 0.01 67
TPG-50A-2-IS 2 -/430 100 0.3 1.54 0.05/0.03 0.01 67
TPG-64A-1 6 262/285   0.39 1.31 0.04/0.04 0.01 67
TPG-64A-1-AS 6 360/- 98 0.46 1.31 0.03/0.06 0.01 67
TPG-64A-1-IS 6 -/383 98 0.46 1.31 0.06/0.03 0.01 67
TPG-64A-2 3 540/590   0.39 2.7 0.04/0.04 0.01 67
TPG-64A-2-AS 3 740/- 200 0.46 2.7 0.03/0.06 0.01 67
TPG-64A-2-IS 3 -/790 200 0.46 2.7 0.06/0.03 0.01 67
TPG-80A-1 8 438/488   0.68 2.19 0.05/0.05 0.01 67
TPG-80A-1-AS 8 594/- 156 0.8 2.19 0.04/0.07 0.01 67
TPG-80A-1-IS 8 -/644 156 0.8 2.19 0.07/0.04 0.01 67
TPG-80A-2 4 900/1010   0.68 4.5 0.05/0.05 0.01 67
TPG-80A-2-AS 4 1230/- 330 0.8 4.5 0.04/0.07 0.01 67
TPG-80A-2-IS 4 -/1340 330 0.8 4.5 0.07/0.04 0.01 67
TPG-100A-1 10 732/805   1.1 3.66 0.09/0.09 0.01 67
TPG-100A-1-AS 10 997/- 265 1.35 3.66 0.07/0.12 0.01 67
TPG-100A-1-IS 10 -/1070 265 1.35 3.66 0.12/0.07 0.01 67
TPG-100A-2 5 1520/1670   1.1 7.6 0.09/0.09 0.01 67
TPG-100A-2-AS 5 2065/- 545 1.35 7.6 0.07/0.12 0.01 67
TPG-100A-2-IS 5 -/2215 450 1.35 7.6 0.12/0.07 0.01 67
TPG-125A-1 13 1200/1300   1.9 6 0.13/0.13 0.01 67
TPG-125A-1-AS 13 1640/- 440 2.35 6 0.11/0.16 0.01 67
TWN-125A-1-IS 13 -/1740 440 2.35 6 0.16/0.11 0.01 67
TPG-125A-2 6 2480/2685   1.9 12.4 0.13/0.13 0.01 67
TPG-125A-2-AS 6 3380/- 900 2.35 12.4 0.11/0.16 0.01 67
TPG-125A-2-IS 6 -/3585 900 2.35 12.4 0.16/0.11 0.01 67
TPG-160A-1 16 1810/1960   3.65 9.05 0.19/0.19 0.01 67
TPG-160A-1-AS 16 2410/- 600 4.65 9.05 0.16/0.33 0.01 67
TPG-160A-1-IS 16 -/2560 600 4.65 9.05 0.33/0.16 0.01 67
TPG-160A-2 8 3515/3810   3.65 17.57 0.19/0.19 0.01 67
TPG-160A-2-AS 8 4990/- 1475 4.65 17.57 0.16/0.33 0.01 67
TPG-160A-2-IS 8 -/5285 1475 4.65 17.57 0.33/0.16 0.01 67
TPG-200A-1 25 2900/3100   7.3 14.5 0.45/0.45 0.02 67
TPG-200A-1-AS 25 3890/- 990 9.5 14.5 0.40/0.80 0.02 67
TPG-200A-1-IS 25 -/4290 1190 9.5 14.5 0.80/0.40 0.02 67
TPG-200A-2 14 5000/5620   7.3 25 0.45/0.45 0.02 67
TPG-200A-2-AS 14 6710/- 1710 9.5 25 0.40/0.80 0.02 67
TPG-200A-2-IS 14 -/7680 2060 9.5 25 0.80/0.40 0.02 67
TPG-240A-1 30 3930/4150   11.5 19.65 0.60/0.60 0.04 67
TPG-240A-1-AS 30 4920/- 990 14.6 19.65 0.50/1.00 0.04 67
TPG-240A-1-IS 30 -/5140 990 14.6 19.65 1.00/0.50 0.04 67
TPG-240A-2 17 6120/6460   11.5 30.6 0.60/0.60 0.04 67
TPG-240A-2-AS 17 7780/- 1660 14.6 30.6 0.50/1.00 0.04 67
TPG-240A-2-IS 17 -/8120 1660 14.6 30.6 1.00/0.50 0.04 67
TPG-300A-1 35 5640/5870   19.6 28.2 0.70/0.70 0.05 67
TPG-300A-1-AS 35 6940/- 1300 23.6 28.2 0.60/1.00 0.05 67
TPG-300A-1-IS 35 -/7170 1300 23.6 28.2 1.00/0.60 0.05 67
TPG-300A-2 20 9800/10300   19.6 49 0.70/0.70 0.05 67
TPG-300A-2-AS 20 12000/- 2200 23.6 49 0.60/1.00 0.05 67
TPG-300A-2-IS 20 -/12500 2200 23.6 49 1.00/0.60 0.05 67
TPG-380A-1 45 8430/8740   42 42.15 1.10/1.10 0.05 67
TPG-380A-1-AS 45 11630/- 3200 52 42.15 0.95/1.10 0.05 67
TPG-380A-1-IS 45 -/11940 3200 52 42.15 1.10/0.95 0.05 67

Recommended accessories

Straight Groove Two Jaw Gripper Pneumatic Parallel Jaw Gripper OEM 3
