| Model: | TPL-70A | Protection Class IP: | 40 |
|---|---|---|---|
| Material: | Aluminium | Weight [kg: | 1 |
| Recommended Workpiece Weight[kg: | 1 | Repeat Accuracy [mm: | 1 |
| Stroke: | Long | Stroke Per Jaw [mm: | 1 |
| Closing/ Opening Force[N: | 1 | ||
| Highlight: | long stroke pneumatic gripper compact,tpl pneumatic parallel gripper,four piston long stroke pneumatic gripper |
||

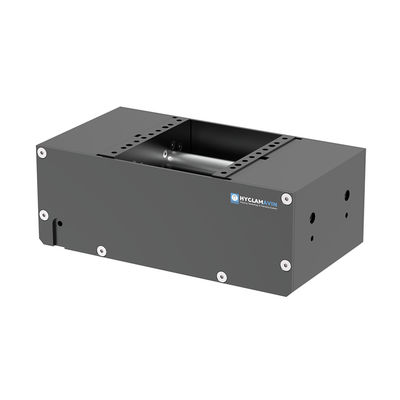

2-Jaw Pneumatic Parallel Long Stroke Gripper TPL
Long Stroke TPL Grippers Featuring Four-Piston System for Optimal Gripping Power and Compact Size
Product Information
Exceptional Performance

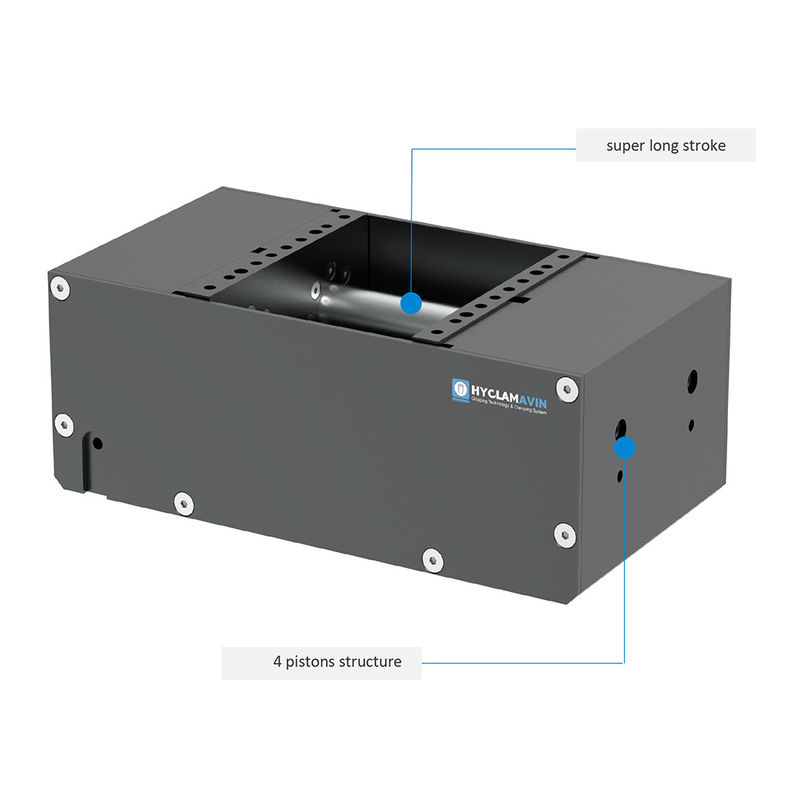

1. The TPL grippers come with an extended stroke and a four-piston mechanism.
● Extended stroke for meeting the demands of unique work environments
● Exclusive four-piston structure, smaller size, and greater gripping power
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protection class IP |
| TPL-40A | 40 | 1790/1050 | 4.5 | 8.95 | 0.40/0.40 | 0.02 | 40 |
| TPL-70A | 70 | 4450/2940 | 9.1 | 22.25 | 0.70/0.70 | 0.02 | 40 |
