Product Details:
Payment & Shipping Terms:
|
| Actuation: | Pneumatic | Sensor Type: | Inductive |
|---|---|---|---|
| Operating Temperature: | 0-60°C | Jaw Type: | Parallel |
| Jaw Height: | 30 Mm | Weight: | 0.5 Kg |
| Max. Operating Pressure: | 10 Bar | Mounting Type: | Through-hole |
| Jaw Opening Range: | 0-50 Mm | Material: | Steel |
| Jaw Width: | 25 Mm | Stroke Length: | Long |
| Gripping Force: | High | Manufacturer: | TPL |
| Highlight: | Inductive Pneumatic Parallel Jaw Gripper,Parallel Jaw Gripper Long Stroke,Four Piston eoat gripper |
||

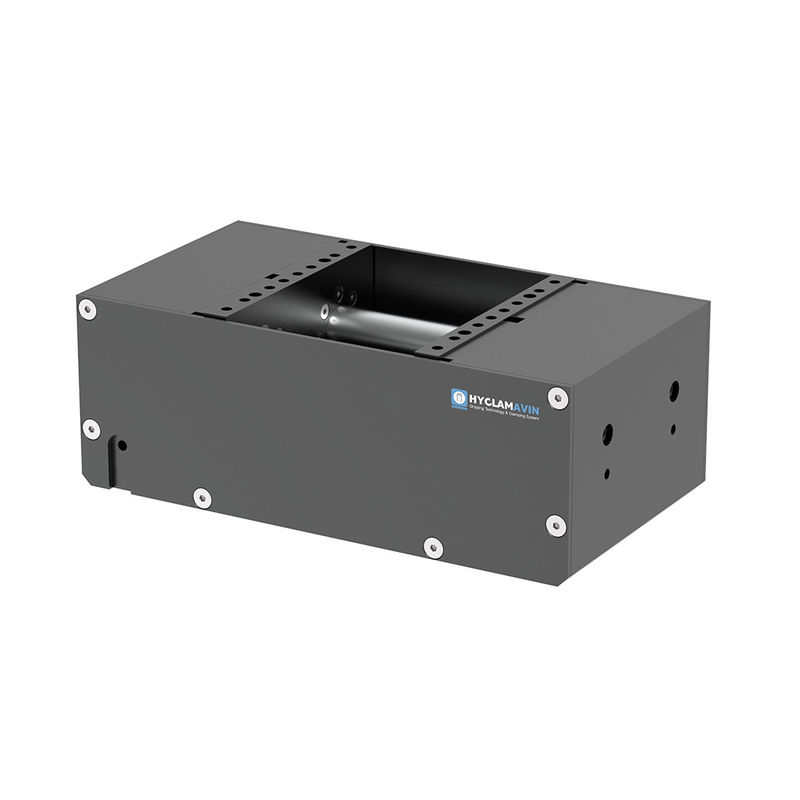

2-Jaw Pneumatic Parallel Long Stroke Gripper TPL
High-Performance TPL Grippers with Long Stroke & Four-Piston Structure for Enhanced Gripping Force
Product Information
Superior Performance

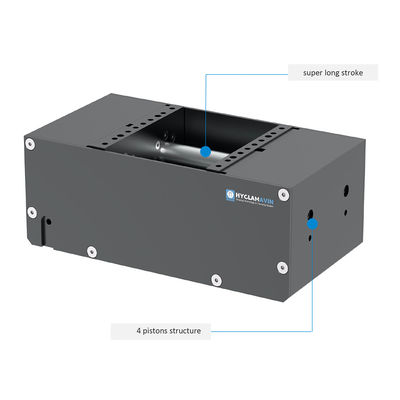

1. The TPL grippers feature an extended stroke and a four-piston configuration.
● Extended stroke designed to fulfill the needs of specific operating environments
● Innovative four-piston structure, compact size, and enhanced gripping force
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protection class IP |
| TPL-40A | 40 | 1790/1050 | 4.5 | 8.95 | 0.40/0.40 | 0.02 | 40 |
| TPL-70A | 70 | 4450/2940 | 9.1 | 22.25 | 0.70/0.70 | 0.02 | 40 |
