Product Details:
Payment & Shipping Terms:
|
| Jaw Travel: | 80 Mm | Jaw Type: | Parallel |
|---|---|---|---|
| Mounting Type: | Direct | Jaw Height: | 30 Mm |
| Stroke Length: | Long | Operating Temperature: | 0-60°C |
| Actuation: | Pneumatic | Jaw Opening: | Adjustable |
| Weight: | 1.2 Kg | Application: | Industrial Automation |
| Gripping Force: | High | Jaw Width: | 50 Mm |
| Material: | Aluminum Alloy | Max. Operating Pressure: | 8 Bar |
| Highlight: | Long Stroke Parallel Gripper IP67,IP67 Heavy Duty Pneumatic Gripper,Parallel Heavy Duty Pneumatic Gripper |
||

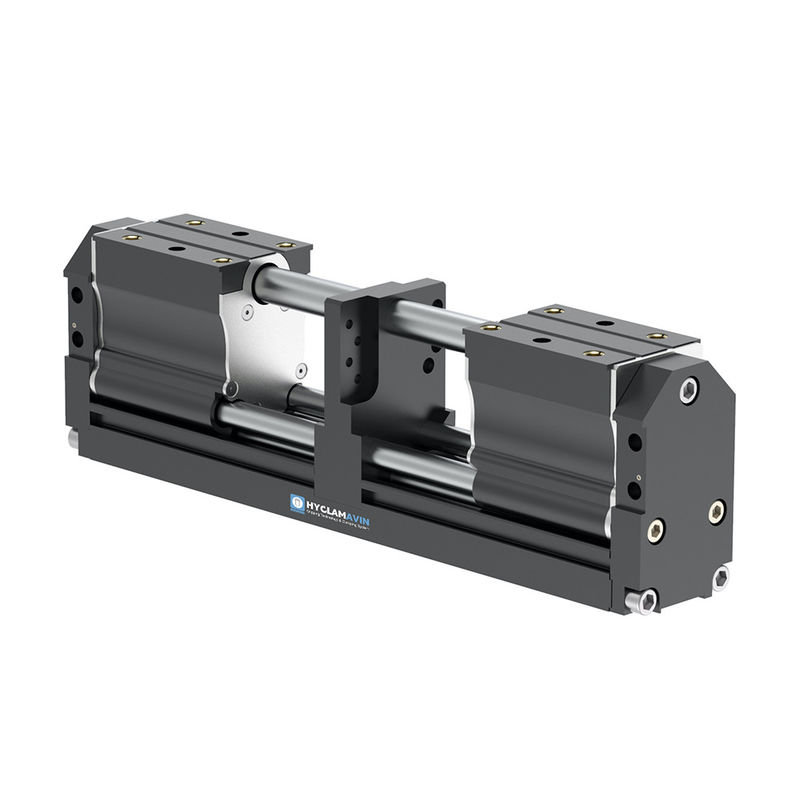

2-Jaw Pneumatic Parallel Long Stroke Gripper IP67 TWL
TWL Grippers with High Moment Capacities and Long Stroke, IP67 Rated for Heavy-Duty Applications
Product Information
High Performance

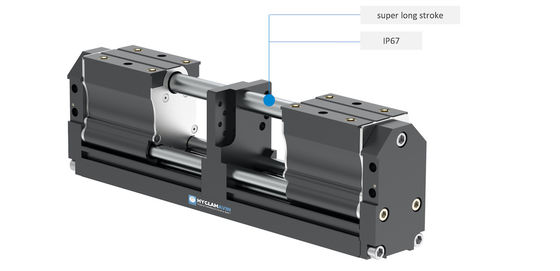

1. The TWL grippers are equipped with a long stroke and IP67 protection.
● Suited for large workpieces and applications that require a long stroke
● The compact design ensures a high gripping force and large moment capacities, keeping the overall weight minimal
● Rugged build for withstanding high impact and shock loads
● Double-acting for both internal and external gripping capabilities
● Three robust jaw guides of large diameter, spanning the full length of the gripper, offer stable jaw movement, extended tooling length, and high moment capacities
● Features IP67 protection
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Closing/ opening time[s] | Allowable moments Mx[Nm] | Allowable moments My/Mz[Nm] | Allowable forces Fa[N] | Repeat accuracy [mm] | Protection class IP |
| TWL-63-75 | 75 | 3100/2790 | 12.6 | 0.28/0.28 | 880 | 720 | 15500 | 0.05 | 64 |
| TWL-63-100 | 100 | 3100/2790 | 15 | 0.36/0.36 | 980 | 820 | 15500 | 0.05 | 64 |
| TWL-63-125 | 125 | 3100/2790 | 17.7 | 0.42/0.42 | 980 | 820 | 15500 | 0.05 | 64 |
| TWL-63-175 | 175 | 3100/2790 | 22.3 | 0.57/0.57 | 980 | 820 | 15500 | 0.05 | 64 |
