Product Details:
Payment & Shipping Terms:
|
| Weight: | 0.5kg | Gripping Force: | High |
|---|---|---|---|
| Jaw Opening Range: | 0-100mm | Stroke Length: | Long |
| Maximum Pressure: | 1.0MPa | Protection Class: | IP67 |
| Material: | Aluminum Alloy | Operating Pressure: | 0.5-0.7MPa |
| Operating Temperature: | 0-60°C | Mounting Type: | Direct Mount |
| Gripping Range: | 0-80mm | Sensor Type: | Inductive |
| Actuation: | Pneumatic | Jaw Type: | Parallel |
| Highlight: | pneumatic robot gripper double acting,twl pneumatic robot gripper,twl robot arm pneumatic gripper |
||

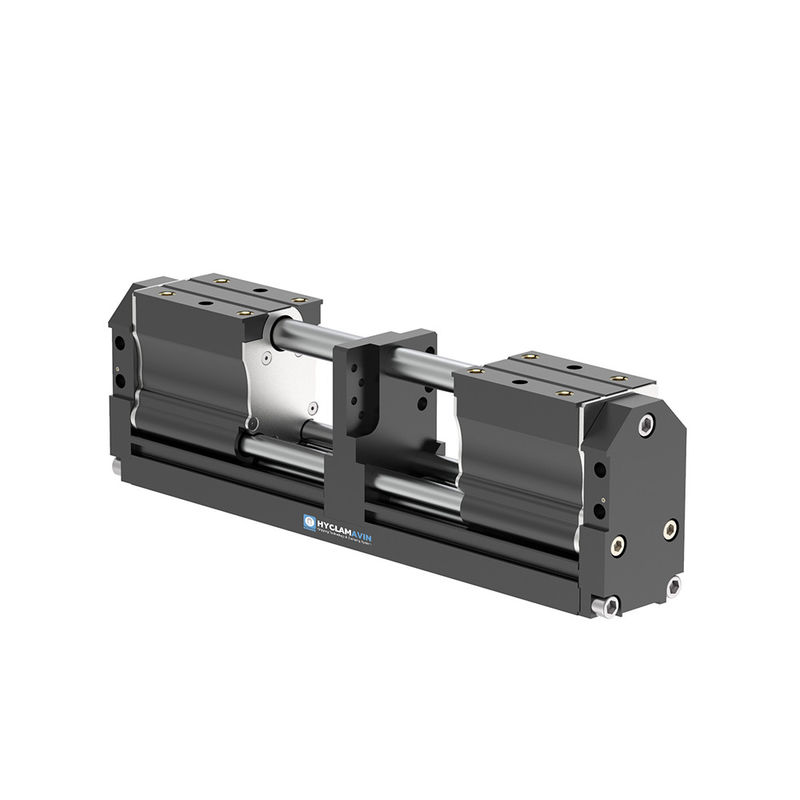

2-Jaw Pneumatic Parallel Long Stroke Gripper IP67 TWL
Compact & Durable TWL Grippers with Double Acting Mechanism and IP67 Protection
Product Information
Superior Performance

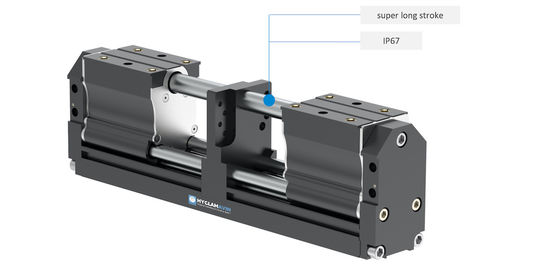

1. TWL grippers feature an exceptionally long stroke, with an IP67 rating.
● Ideal for tasks involving large workpieces and extensive stroke requirements
● The compact design offers powerful gripping force and considerable moment capacities, all while maintaining a low overall weight
● Durable construction that can withstand high impacts and shock forces
● Double-acting design enables both internal and external gripping
● Three large-diameter jaw guides spanning the full length of the gripper ensure smooth jaw travel, extended tooling length, and high moment capacities
● Rated IP67
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Closing/ opening time[s] | Allowable moments Mx[Nm] | Allowable moments My/Mz[Nm] | Allowable forces Fa[N] | Repeat accuracy [mm] | Protection class IP |
| TWL-63-75 | 75 | 3100/2790 | 12.6 | 0.28/0.28 | 880 | 720 | 15500 | 0.05 | 64 |
| TWL-63-100 | 100 | 3100/2790 | 15 | 0.36/0.36 | 980 | 820 | 15500 | 0.05 | 64 |
| TWL-63-125 | 125 | 3100/2790 | 17.7 | 0.42/0.42 | 980 | 820 | 15500 | 0.05 | 64 |
| TWL-63-175 | 175 | 3100/2790 | 22.3 | 0.57/0.57 | 980 | 820 | 15500 | 0.05 | 64 |
