Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy | Operating Temperature: | 0-80°C |
|---|---|---|---|
| Mounting: | Through-hole | Finger Style: | Parallel |
| Jaw Type: | 2-Jaw | Max Pressure: | 8 Bar |
| Jaw Opening: | 20-50mm | Weight: | 0.5kg |
| Actuation: | Pneumatic | Jaw Width: | 25mm |
| Grip Force: | High | Type: | Pneumatic Parallel Gripper |
| Jaw Height: | 30mm | ||
| Highlight: | IP67 Two Jaw Parallel Pneumatic Gripper,Parallel Pneumatic Gripper In Robotics,Aluminum Alloy Parallel Pneumatic Gripper |
||

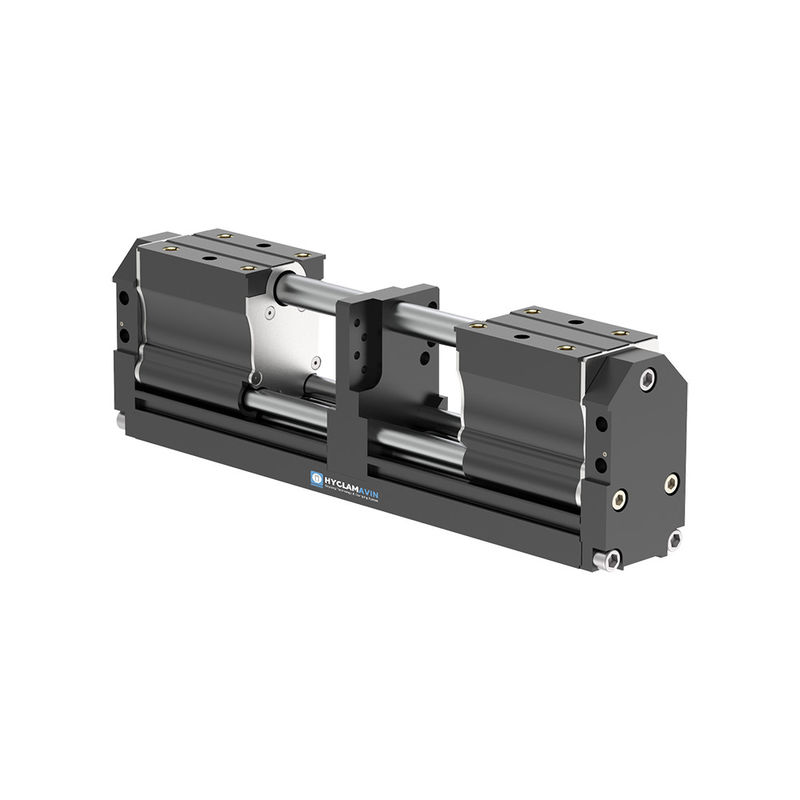

2-Jaw Pneumatic Parallel Long Stroke Gripper IP67 TWL
High-Performance TWL Grippers with Long Stroke & IP67 Rating for Large Workpieces
Product Information
Outstanding Performance

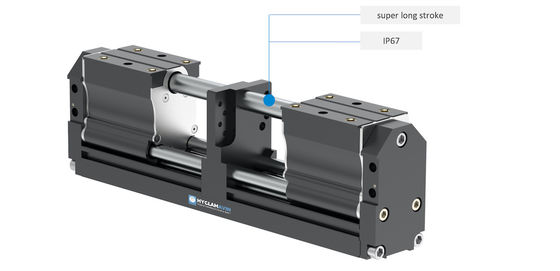

1. The TWL grippers offer an exceptionally long stroke, with an IP67 rating.
● Perfect for applications requiring large workpiece sizes and long strokes
● Compact design delivers high gripping force and significant moment capacities while keeping the overall weight low
● Robust construction designed to endure high impact and shock loads
● Double-acting mechanism supports both internal and external gripping
● Three large-diameter jaw guides, running the entire length of the gripper, ensure stable jaw movement, extended tooling length, and high moment capacities
● IP67 class rating
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Closing/ opening time[s] | Allowable moments Mx[Nm] | Allowable moments My/Mz[Nm] | Allowable forces Fa[N] | Repeat accuracy [mm] | Protection class IP |
| TWL-63-75 | 75 | 3100/2790 | 12.6 | 0.28/0.28 | 880 | 720 | 15500 | 0.05 | 64 |
| TWL-63-100 | 100 | 3100/2790 | 15 | 0.36/0.36 | 980 | 820 | 15500 | 0.05 | 64 |
| TWL-63-125 | 125 | 3100/2790 | 17.7 | 0.42/0.42 | 980 | 820 | 15500 | 0.05 | 64 |
| TWL-63-175 | 175 | 3100/2790 | 22.3 | 0.57/0.57 | 980 | 820 | 15500 | 0.05 | 64 |
