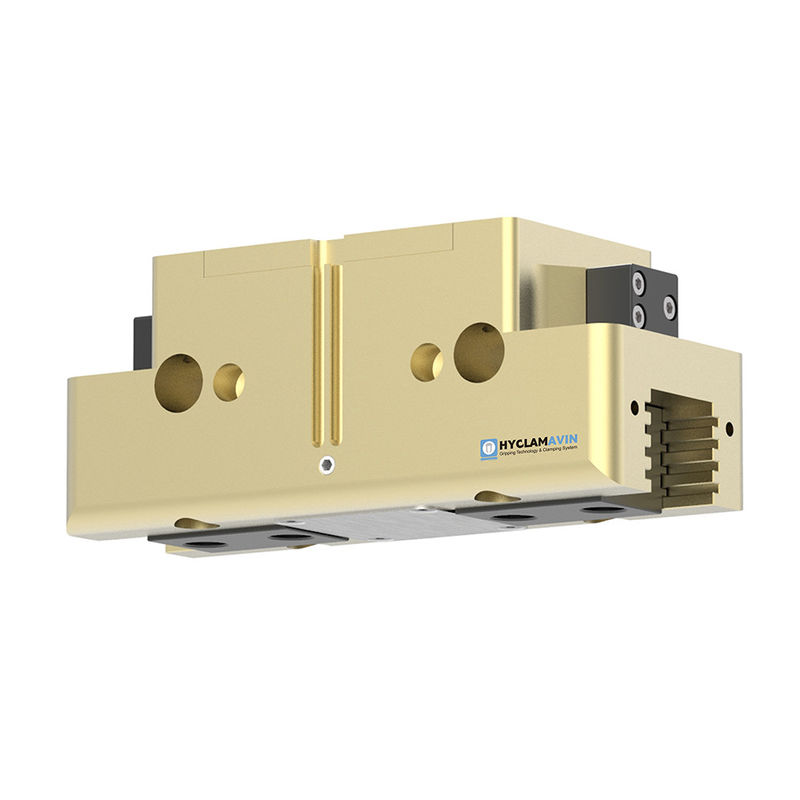

High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke

High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke
High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke

Large Image :  High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: TWN-P
Payment & Shipping Terms:
Minimum Order Quantity: 1 pce
Price: USD, 450-2850, PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Number Of Jaws: 2 Product Series: TWN-P
Gripping Force: Depends On Air Pressure Type: Pneumatic Gripper
Tooth Type: Multi-Tooth Operating Temperature: 0-80°C
Material: Aluminum Alloy Actuation: Pneumatic
Maximum Jaw Opening: Depends On Model Mounting Type: Direct Mounting
Jaw Stroke: Depends On Model Gripper Action: Parallel
Operating Pressure: 0.5-0.7 MPa
Highlight:

High Precision Parallel Jaw Gripper

,

Short Stroke eoat grippers

,

Precision Parallel eoat grippers

2-Jaw Parallel Grippers, Multi-Tooth Guidance TWN-P

TWN-P High Precision 2-Jaw Pneumatic Parallel Multi-Tooth Gripper for Short Stroke and Heavy Load Applications



Product Information

High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke 0



Outstanding Performance

  1. The TWN-P grippers are designed with high precision, permanent lubrication, and multi-tooth straight groove guidance.

High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke 1

● The compact structure is optimized for short strokes and heavy loads.

● The load is distributed over a larger surface area, reducing contact stress.

● Grease is distributed more rapidly and evenly.

● Ensures long-lasting motion rigidity and accuracy.

● The multi-tooth guide’s oil storage feature enhances service life.

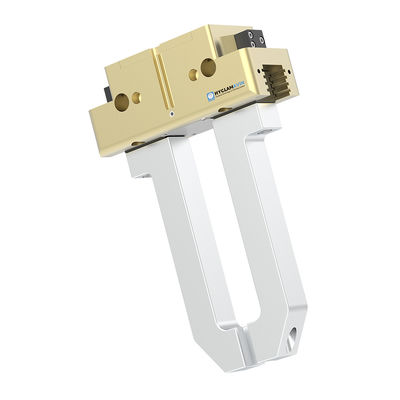

● The maximum finger length can be increased by 50%.

  1. The TWN-P grippers come with a wide range of sensor and pneumatic interface options.

High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke 2



Gripping force maintenance-AS/IS

High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke 3

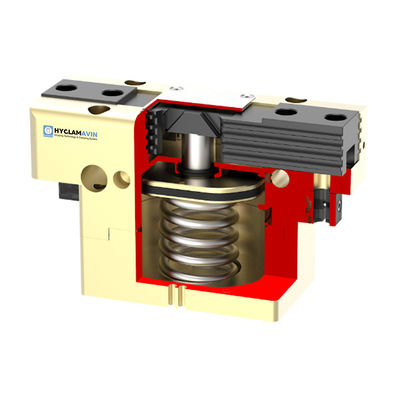

  • The TWN-P grippers can be equipped with gripping force maintenance, expanded to TWN-P-AS/IS (AS: closing maintenance, IS: opening maintenance).

  • A spring is used as an accumulator to maintain a minimum clamping force in the event of a pressure drop.



Dust-tight version



  • The TWN-P grippers are available with a dust-tight option, upgraded to TWN-P-SD, with an IP64 rating.

High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke 4

High-temperature version



  • The TWN-P grippers can also be upgraded to a high-temperature version, TWN-P-HT, extending the temperature tolerance range from 5/90°C in the standard version to 5/130°C.

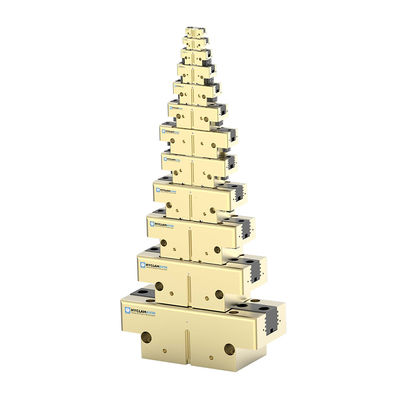

Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protecti on class IP
TWN-P-40A-1 2.5 198/210   0.08 0.99 0.02/0.02 0.01 40/64
TWN-P-40A-1-AS 2.5 258/- 60 0.1 0.99 0.02/0.03 0.01 40/64
TWN-P-40A-1 2.5 -/280 70 0.1 0.99 0.03/0.02 0.01 40/64
TWN-P-50A-1 4 240/255   0.16 1.2 0.02/0.02 0.01 40/64
TWN-P-50A-1-AS 4 330/- 90 0.2 1.2 0.02/0.03 0.01 40/64
TWN-P-50A-1-IS 4 -/345 90 0.2 1.2 0.03/0.02 0.01 40/64
TWN-P-50A-2 2 430/460   0.16 2.15 0.02/0.02 0.01 40/64
TWN-P-50A-2-AS 2 550/- 120 0.2 2.15 0.02/0.03 0.01 40/64
TWN-P-50A-2-IS 2 -/580 120 0.2 2.15 0.03/0.02 0.01 40/64
TWN-P-64A-1 6 360/388   0.26 1.8 0.02/0.02 0.01 40/64
TWN-P-64A-1-AS 6 515/- 155 0.36 1.8 0.02/0.04 0.01 40/64
TWN-P-64A-1-IS 6 -/543 155 0.36 1.8 0.04/0.02 0.01 40/64
TWN-P-64A-2 3 730/785   0.26 3.65 0.02/0.02 0.01 40/64
TWN-P-64A-2-AS 3 1040/- 310 0.36 3.65 0.02/0.04 0.01 40/64
TWN-P-64A-2-IS 3 -/1095 310 0.36 3.65 0.04/0.02 0.01 40/64
TWN-P-80A-1 8 565/630   0.52 2.82 0.04/0.04 0.01 40/64
TWN-P-80A-1-AS 8 805/- 240 0.6 2.82 0.03/0.05 0.01 40/64
TWN-P-80A-1-IS 8 -/870 240 0.6 2.82 0.05/0.03 0.01 40/64
TWN-P-80A-2 4 1145/1275   0.52 5.72 0.04/0.04 0.01 40/64
TWN-P-80A-2-AS 4 1535/- 390 0.6 5.72 0.03/0.05 0.01 40/64
TWN-P-80A-2-IS 4 -/1665 390 0.6 5.72 0.05/0.03 0.01 40/64
TWN-P-100A-1 10 930/995   0.9 4.65 0.07/0.07 0.01 40/64
TWN-P-100A-1-AS 10 1300/- 370 1.1 4.65 0.05/0.09 0.01 40/64
TWN-P-100A-1-IS 10 -/1345 350 1.1 4.65 0.09/0.05 0.01 40/64
TWN-P-100A-2 5 1860/2000   0.9 9.3 0.07/0.07 0.01 40/64
TWN-P-100A-2-AS 5 2400/- 540 1.1 9.3 0.05/0.09 0.01 40/64
TWN-P-100A-2-IS 5 -/2700 700 1.1 9.3 0.09/0.05 0.01 40/64
TWN-P-110A-1 20 1230/1330   2.5 6.15 0.15/0.15 0.01 40/64
TWN-P-125A-1 13 1475/1590   1.4 7.37 0.10/0.10 0.01 40/64
TWN-P-125A-1-AS 13 2125/- 650 1.9 7.37 0.08/0.12 0.01 40/64
TWN-P-125A-1-IS 13 -/2240 650 1.9 7.37 0.12/0.08 0.01 40/64
TWN-P-125A-2 6 2990/3220   1.4 14.95 0.10/0.10 0.01 40/64
TWN-P-125A-2-AS 6 4190/- 1200 1.9 14.95 0.08/0.12 0.01 40/64
TWN-P-125A-2-IS 6 -/4420 1200 1.9 14.95 0.12/0.08 0.01 40/64
TWN-P-160A-1 16 2600/2715   3 13 0.10/0.10 0.01 40/64
TWN-P-160A-1-AS 16 3550/- 900 3.8 13 0.10/0.20 0.01 40/64
TWN-P-160A-1-IS 16 -/3615 900 3.8 13 0.20/0.10 0.01 40/64
TWN-P-160A-2 8 5270/5500   3 26.35 0.10/0.10 0.01 40/64
TWN-P-160A-2-AS 8 6770/- 1500 3.8 26.35 0.10/0.20 0.01 40/64
TWN-P-160A-2-IS 8 -/7000 1500 3.8 26.35 0.20/0.10 0.01 40/64
TWN-P-200A-1 25 4300/4500   5.5 21.5 0.30/0.30 0.02 40/64
TWN-P-200A-1-AS 25 5600/- 1300 7 21.5 0.30/0.60 0.02 40/64
TWN-P-200A-1-IS 25 -/6000 1500 7 21.5 0.60/0.30 0.02 40/64
TWN-P-200A-2 14 7700/8100   5.5 38.5 0.30/0.30 0.02 40/64
TWN-P-200A-2-AS 14 10200/- 2500 7 38.5 0.30/0.60 0.02 40/64
TWN-P-200A-2-IS 14 -/10900 2800 7 38.5 0.60/0.30 0.02 40/64
TWN-P-240A-1 30 5450/5680   8.7 27.25 0.50/0.50 0.04 40/64
TWN-P-240A-1-AS 30 8200/- 2750 11.8 27.25 0.45/0.90 0.04 40/64
TWN-P-240A-1-IS 30 -/8430 2750 11.8 27.25 0.90/0.45 0.04 40/64
TWN-P-240A-2 17 9440/9850   8.9 47.2 0.50/0.50 0.04 40/64
TWN-P-240A-2-AS 17 14590/- 5150 12 47.2 0.45/0.90 0.04 40/64
TWN-P-240A-2-IS 17 -/15000 5150 12 47.2 0.90/0.45 0.04 40/64
TWN-P-300A-1 35 6850/7190   13.6 34.25 0.50/0.50 0.05 40/64
TWN-P-300A-1-AS 35 8600/- 1750 17.3 34.25 0.40/0.70 0.05 40/64
TWN-P-300A-1-IS 35 -/8940 1750 17.3 34.25 0.70/0.40 0.05 40/64
TWN-P-300A-2 20 11870/12460   13.6 59.35 0.50/0.50 0.05 40/64
TWN-P-300A-2-AS 20 15870/- 4000 17.3 59.35 0.40/0.70 0.05 40/64
TWN-P-300A-2-IS 20 -/16460 4000 17.3 59.35 0.70/0.40 0.05 40/64
TWN-P-380A-1 45 10700/11100   27 53.5 0.60/0.60 0.05 40/64
TWN-P-380A-1-AS 45 14300/- 3600 37 53.5 0.50/0.80 0.05 40/64
TWN-P-380A-1-IS 45 -/14800 3700 37 53.5 0.80/0.50 0.05 40/64
TWN-380A-2 26 20500/21300   27 102.5 0.60/0.60 0.05 40/64
TWN-P-380A-2-AS 26 27400/- 6900 37 102.5 0.50/0.80 0.05 40/64
TWN-P-380A-2-IS 26 -/28300 7000 37 102.5 0.80/0.50 0.05 40/64



Recommended accessories

High Precision Parallel Jaw Gripper Eoat Grippers For Short Stroke 5
