Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation

Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation
Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation

Large Image :  Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: TWN-P
Payment & Shipping Terms:
Minimum Order Quantity: 1 pce
Price: USD, 450-2850, PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Maximum Operating Pressure: 8 Bar Weight: Depends On Jaw Size
Application: Industrial Automation And Robotics Gripper Type: Multi-Tooth
Jaw Type: Parallel Maximum Jaw Stroke: Depends On Jaw Size
Gripping Force: Depends On Air Pressure And Jaw Size Jaw Opening/Closing Range: Depends On Jaw Size
Mounting Type: Direct Mount Number Of Jaws: 2
Operating Temperature: 0-80°C Actuation Type: Pneumatic
Material: Aluminum Alloy
Highlight:

Multi Tooth Eoat Grippers

,

Eoat Two Jaw Parallel Pneumatic Gripper

,

Industrial Automation Eoat Grippers

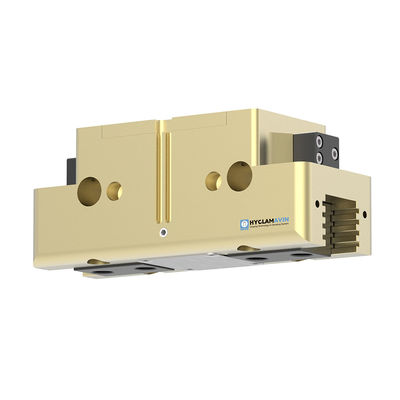

2-Jaw Parallel Grippers, Multi-Tooth Guidance TWN-P

2-Jaw Pneumatic Parallel Multi-Tooth Gripper TWN-P for Dust-Tight and Durable Gripping in Challenging Environments



Product Information

Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation 0



Exceptional Performance

  1. The TWN-P grippers are equipped with high precision, permanent lubrication, and multi-tooth straight groove guidance.

Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation 1

● The compact structure is designed for short strokes and heavy load applications.

● Load distribution across more surfaces helps to reduce contact stress.

● Grease is spread more quickly and evenly.

● Guarantees long-term motion rigidity and precision.

● The oil storage feature in the multi-tooth guide extends the service life.

● The maximum finger length can be increased by 50%.

  1. The TWN-P grippers offer various sensor and pneumatic interface options.

Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation 2



Gripping force maintenance-AS/IS

Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation 3

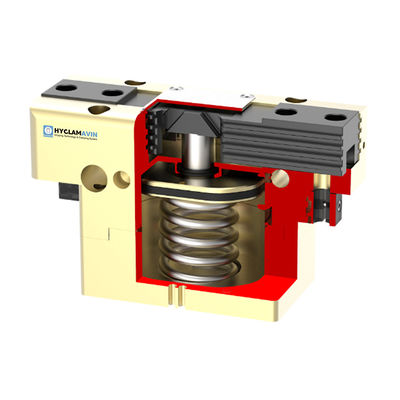

  • The TWN-P grippers can be upgraded with gripping force maintenance, available as TWN-P-AS/IS (AS: closing maintenance, IS: opening maintenance).

  • A spring acts as an accumulator, ensuring the minimum clamping force is maintained during pressure drops.



Dust-tight version



  • The TWN-P grippers can be upgraded to a dust-tight version, TWN-P-SD, with an IP64 rating.

Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation 4

High-temperature version



  • The TWN-P grippers can be equipped with a high-temperature version, TWN-P-HT, which increases the temperature tolerance from 5/90°C in the basic version to 5/130°C.



Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protecti on class IP
TWN-P-40A-1 2.5 198/210   0.08 0.99 0.02/0.02 0.01 40/64
TWN-P-40A-1-AS 2.5 258/- 60 0.1 0.99 0.02/0.03 0.01 40/64
TWN-P-40A-1 2.5 -/280 70 0.1 0.99 0.03/0.02 0.01 40/64
TWN-P-50A-1 4 240/255   0.16 1.2 0.02/0.02 0.01 40/64
TWN-P-50A-1-AS 4 330/- 90 0.2 1.2 0.02/0.03 0.01 40/64
TWN-P-50A-1-IS 4 -/345 90 0.2 1.2 0.03/0.02 0.01 40/64
TWN-P-50A-2 2 430/460   0.16 2.15 0.02/0.02 0.01 40/64
TWN-P-50A-2-AS 2 550/- 120 0.2 2.15 0.02/0.03 0.01 40/64
TWN-P-50A-2-IS 2 -/580 120 0.2 2.15 0.03/0.02 0.01 40/64
TWN-P-64A-1 6 360/388   0.26 1.8 0.02/0.02 0.01 40/64
TWN-P-64A-1-AS 6 515/- 155 0.36 1.8 0.02/0.04 0.01 40/64
TWN-P-64A-1-IS 6 -/543 155 0.36 1.8 0.04/0.02 0.01 40/64
TWN-P-64A-2 3 730/785   0.26 3.65 0.02/0.02 0.01 40/64
TWN-P-64A-2-AS 3 1040/- 310 0.36 3.65 0.02/0.04 0.01 40/64
TWN-P-64A-2-IS 3 -/1095 310 0.36 3.65 0.04/0.02 0.01 40/64
TWN-P-80A-1 8 565/630   0.52 2.82 0.04/0.04 0.01 40/64
TWN-P-80A-1-AS 8 805/- 240 0.6 2.82 0.03/0.05 0.01 40/64
TWN-P-80A-1-IS 8 -/870 240 0.6 2.82 0.05/0.03 0.01 40/64
TWN-P-80A-2 4 1145/1275   0.52 5.72 0.04/0.04 0.01 40/64
TWN-P-80A-2-AS 4 1535/- 390 0.6 5.72 0.03/0.05 0.01 40/64
TWN-P-80A-2-IS 4 -/1665 390 0.6 5.72 0.05/0.03 0.01 40/64
TWN-P-100A-1 10 930/995   0.9 4.65 0.07/0.07 0.01 40/64
TWN-P-100A-1-AS 10 1300/- 370 1.1 4.65 0.05/0.09 0.01 40/64
TWN-P-100A-1-IS 10 -/1345 350 1.1 4.65 0.09/0.05 0.01 40/64
TWN-P-100A-2 5 1860/2000   0.9 9.3 0.07/0.07 0.01 40/64
TWN-P-100A-2-AS 5 2400/- 540 1.1 9.3 0.05/0.09 0.01 40/64
TWN-P-100A-2-IS 5 -/2700 700 1.1 9.3 0.09/0.05 0.01 40/64
TWN-P-110A-1 20 1230/1330   2.5 6.15 0.15/0.15 0.01 40/64
TWN-P-125A-1 13 1475/1590   1.4 7.37 0.10/0.10 0.01 40/64
TWN-P-125A-1-AS 13 2125/- 650 1.9 7.37 0.08/0.12 0.01 40/64
TWN-P-125A-1-IS 13 -/2240 650 1.9 7.37 0.12/0.08 0.01 40/64
TWN-P-125A-2 6 2990/3220   1.4 14.95 0.10/0.10 0.01 40/64
TWN-P-125A-2-AS 6 4190/- 1200 1.9 14.95 0.08/0.12 0.01 40/64
TWN-P-125A-2-IS 6 -/4420 1200 1.9 14.95 0.12/0.08 0.01 40/64
TWN-P-160A-1 16 2600/2715   3 13 0.10/0.10 0.01 40/64
TWN-P-160A-1-AS 16 3550/- 900 3.8 13 0.10/0.20 0.01 40/64
TWN-P-160A-1-IS 16 -/3615 900 3.8 13 0.20/0.10 0.01 40/64
TWN-P-160A-2 8 5270/5500   3 26.35 0.10/0.10 0.01 40/64
TWN-P-160A-2-AS 8 6770/- 1500 3.8 26.35 0.10/0.20 0.01 40/64
TWN-P-160A-2-IS 8 -/7000 1500 3.8 26.35 0.20/0.10 0.01 40/64
TWN-P-200A-1 25 4300/4500   5.5 21.5 0.30/0.30 0.02 40/64
TWN-P-200A-1-AS 25 5600/- 1300 7 21.5 0.30/0.60 0.02 40/64
TWN-P-200A-1-IS 25 -/6000 1500 7 21.5 0.60/0.30 0.02 40/64
TWN-P-200A-2 14 7700/8100   5.5 38.5 0.30/0.30 0.02 40/64
TWN-P-200A-2-AS 14 10200/- 2500 7 38.5 0.30/0.60 0.02 40/64
TWN-P-200A-2-IS 14 -/10900 2800 7 38.5 0.60/0.30 0.02 40/64
TWN-P-240A-1 30 5450/5680   8.7 27.25 0.50/0.50 0.04 40/64
TWN-P-240A-1-AS 30 8200/- 2750 11.8 27.25 0.45/0.90 0.04 40/64
TWN-P-240A-1-IS 30 -/8430 2750 11.8 27.25 0.90/0.45 0.04 40/64
TWN-P-240A-2 17 9440/9850   8.9 47.2 0.50/0.50 0.04 40/64
TWN-P-240A-2-AS 17 14590/- 5150 12 47.2 0.45/0.90 0.04 40/64
TWN-P-240A-2-IS 17 -/15000 5150 12 47.2 0.90/0.45 0.04 40/64
TWN-P-300A-1 35 6850/7190   13.6 34.25 0.50/0.50 0.05 40/64
TWN-P-300A-1-AS 35 8600/- 1750 17.3 34.25 0.40/0.70 0.05 40/64
TWN-P-300A-1-IS 35 -/8940 1750 17.3 34.25 0.70/0.40 0.05 40/64
TWN-P-300A-2 20 11870/12460   13.6 59.35 0.50/0.50 0.05 40/64
TWN-P-300A-2-AS 20 15870/- 4000 17.3 59.35 0.40/0.70 0.05 40/64
TWN-P-300A-2-IS 20 -/16460 4000 17.3 59.35 0.70/0.40 0.05 40/64
TWN-P-380A-1 45 10700/11100   27 53.5 0.60/0.60 0.05 40/64
TWN-P-380A-1-AS 45 14300/- 3600 37 53.5 0.50/0.80 0.05 40/64
TWN-P-380A-1-IS 45 -/14800 3700 37 53.5 0.80/0.50 0.05 40/64
TWN-380A-2 26 20500/21300   27 102.5 0.60/0.60 0.05 40/64
TWN-P-380A-2-AS 26 27400/- 6900 37 102.5 0.50/0.80 0.05 40/64
TWN-P-380A-2-IS 26 -/28300 7000 37 102.5 0.80/0.50 0.05 40/64



Recommended accessories

Multi Tooth Eoat Grippers Two Jaw Parallel Pneumatic Gripper For Industrial Automation 5
