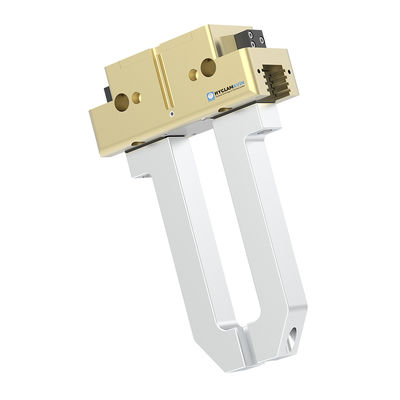

Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding

Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding
Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding

Large Image :  Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: TWN-P
Payment & Shipping Terms:
Minimum Order Quantity: 1 pce
Price: USD, 450-2850, PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Operating Pressure: Pneumatic Tooth Type: Multi-Tooth
Material: Aluminum Alloy Jaw Type: Parallel
Mounting Type: T-Slot Application: Industrial Automation
Jaw Stroke: Depends On Model Maximum Load Capacity: Depends On Model
Maximum Jaw Opening: Depends On Model Jaw Number: 2
Weight: Depends On Model Type: Pneumatic Gripper
Gripping Force: Depends On Operating Pressure
Highlight:

Multi Tooth 2 Jaw Gripper

,

2 Jaw Gripper Pneumatic Parallel

,

TWN-P 2 Jaw Gripper

2-Jaw Parallel Grippers, Multi-Tooth Guidance TWN-P

2-Jaw Pneumatic Parallel Multi-Tooth Gripper TWN-P with Gripping Force Maintenance for Secure Holding



Product Information

Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding 0



Outstanding Performance

  1. The TWN-P grippers are designed with high precision, permanent lubrication, and multi-tooth straight groove guidance.

Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding 1

● The compact design is ideal for short strokes and heavy loads.

● The load is distributed across a larger surface area, reducing contact stress.

● Grease is distributed more efficiently and evenly.

● It ensures consistent motion rigidity and accuracy over an extended period.

● The oil storage structure in the multi-tooth guide increases service life.

● The maximum finger length can be increased by up to 50%.



2. The TWN-P grippers come with various sensor and pneumatic interface options.

Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding 2



Gripping force maintenance-AS/IS

Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding 3

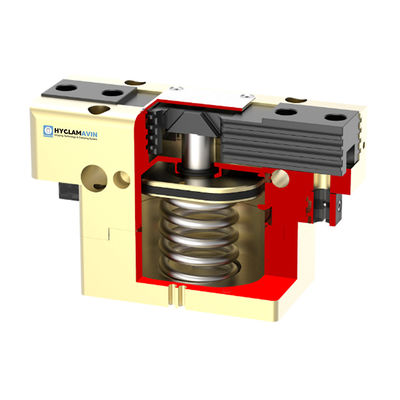

  • The TWN-P grippers can be fitted with gripping force maintenance, expanding to TWN-P-AS/IS (AS: closing maintenance, IS: opening maintenance).

  • A spring is used as an accumulator, maintaining a minimum clamping force even during pressure drops.



Dust-tight version



  • The TWN-P grippers are available with a dust-tight option, upgraded to TWN-P-SD, achieving an IP64 rating.

Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding 4

High-temperature version



  • The TWN-P grippers can be upgraded to a high-temperature version, TWN-P-HT, with a temperature tolerance range expanded from 5/90°C in the standard version to 5/130°C.



Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protecti on class IP
TWN-P-40A-1 2.5 198/210   0.08 0.99 0.02/0.02 0.01 40/64
TWN-P-40A-1-AS 2.5 258/- 60 0.1 0.99 0.02/0.03 0.01 40/64
TWN-P-40A-1 2.5 -/280 70 0.1 0.99 0.03/0.02 0.01 40/64
TWN-P-50A-1 4 240/255   0.16 1.2 0.02/0.02 0.01 40/64
TWN-P-50A-1-AS 4 330/- 90 0.2 1.2 0.02/0.03 0.01 40/64
TWN-P-50A-1-IS 4 -/345 90 0.2 1.2 0.03/0.02 0.01 40/64
TWN-P-50A-2 2 430/460   0.16 2.15 0.02/0.02 0.01 40/64
TWN-P-50A-2-AS 2 550/- 120 0.2 2.15 0.02/0.03 0.01 40/64
TWN-P-50A-2-IS 2 -/580 120 0.2 2.15 0.03/0.02 0.01 40/64
TWN-P-64A-1 6 360/388   0.26 1.8 0.02/0.02 0.01 40/64
TWN-P-64A-1-AS 6 515/- 155 0.36 1.8 0.02/0.04 0.01 40/64
TWN-P-64A-1-IS 6 -/543 155 0.36 1.8 0.04/0.02 0.01 40/64
TWN-P-64A-2 3 730/785   0.26 3.65 0.02/0.02 0.01 40/64
TWN-P-64A-2-AS 3 1040/- 310 0.36 3.65 0.02/0.04 0.01 40/64
TWN-P-64A-2-IS 3 -/1095 310 0.36 3.65 0.04/0.02 0.01 40/64
TWN-P-80A-1 8 565/630   0.52 2.82 0.04/0.04 0.01 40/64
TWN-P-80A-1-AS 8 805/- 240 0.6 2.82 0.03/0.05 0.01 40/64
TWN-P-80A-1-IS 8 -/870 240 0.6 2.82 0.05/0.03 0.01 40/64
TWN-P-80A-2 4 1145/1275   0.52 5.72 0.04/0.04 0.01 40/64
TWN-P-80A-2-AS 4 1535/- 390 0.6 5.72 0.03/0.05 0.01 40/64
TWN-P-80A-2-IS 4 -/1665 390 0.6 5.72 0.05/0.03 0.01 40/64
TWN-P-100A-1 10 930/995   0.9 4.65 0.07/0.07 0.01 40/64
TWN-P-100A-1-AS 10 1300/- 370 1.1 4.65 0.05/0.09 0.01 40/64
TWN-P-100A-1-IS 10 -/1345 350 1.1 4.65 0.09/0.05 0.01 40/64
TWN-P-100A-2 5 1860/2000   0.9 9.3 0.07/0.07 0.01 40/64
TWN-P-100A-2-AS 5 2400/- 540 1.1 9.3 0.05/0.09 0.01 40/64
TWN-P-100A-2-IS 5 -/2700 700 1.1 9.3 0.09/0.05 0.01 40/64
TWN-P-110A-1 20 1230/1330   2.5 6.15 0.15/0.15 0.01 40/64
TWN-P-125A-1 13 1475/1590   1.4 7.37 0.10/0.10 0.01 40/64
TWN-P-125A-1-AS 13 2125/- 650 1.9 7.37 0.08/0.12 0.01 40/64
TWN-P-125A-1-IS 13 -/2240 650 1.9 7.37 0.12/0.08 0.01 40/64
TWN-P-125A-2 6 2990/3220   1.4 14.95 0.10/0.10 0.01 40/64
TWN-P-125A-2-AS 6 4190/- 1200 1.9 14.95 0.08/0.12 0.01 40/64
TWN-P-125A-2-IS 6 -/4420 1200 1.9 14.95 0.12/0.08 0.01 40/64
TWN-P-160A-1 16 2600/2715   3 13 0.10/0.10 0.01 40/64
TWN-P-160A-1-AS 16 3550/- 900 3.8 13 0.10/0.20 0.01 40/64
TWN-P-160A-1-IS 16 -/3615 900 3.8 13 0.20/0.10 0.01 40/64
TWN-P-160A-2 8 5270/5500   3 26.35 0.10/0.10 0.01 40/64
TWN-P-160A-2-AS 8 6770/- 1500 3.8 26.35 0.10/0.20 0.01 40/64
TWN-P-160A-2-IS 8 -/7000 1500 3.8 26.35 0.20/0.10 0.01 40/64
TWN-P-200A-1 25 4300/4500   5.5 21.5 0.30/0.30 0.02 40/64
TWN-P-200A-1-AS 25 5600/- 1300 7 21.5 0.30/0.60 0.02 40/64
TWN-P-200A-1-IS 25 -/6000 1500 7 21.5 0.60/0.30 0.02 40/64
TWN-P-200A-2 14 7700/8100   5.5 38.5 0.30/0.30 0.02 40/64
TWN-P-200A-2-AS 14 10200/- 2500 7 38.5 0.30/0.60 0.02 40/64
TWN-P-200A-2-IS 14 -/10900 2800 7 38.5 0.60/0.30 0.02 40/64
TWN-P-240A-1 30 5450/5680   8.7 27.25 0.50/0.50 0.04 40/64
TWN-P-240A-1-AS 30 8200/- 2750 11.8 27.25 0.45/0.90 0.04 40/64
TWN-P-240A-1-IS 30 -/8430 2750 11.8 27.25 0.90/0.45 0.04 40/64
TWN-P-240A-2 17 9440/9850   8.9 47.2 0.50/0.50 0.04 40/64
TWN-P-240A-2-AS 17 14590/- 5150 12 47.2 0.45/0.90 0.04 40/64
TWN-P-240A-2-IS 17 -/15000 5150 12 47.2 0.90/0.45 0.04 40/64
TWN-P-300A-1 35 6850/7190   13.6 34.25 0.50/0.50 0.05 40/64
TWN-P-300A-1-AS 35 8600/- 1750 17.3 34.25 0.40/0.70 0.05 40/64
TWN-P-300A-1-IS 35 -/8940 1750 17.3 34.25 0.70/0.40 0.05 40/64
TWN-P-300A-2 20 11870/12460   13.6 59.35 0.50/0.50 0.05 40/64
TWN-P-300A-2-AS 20 15870/- 4000 17.3 59.35 0.40/0.70 0.05 40/64
TWN-P-300A-2-IS 20 -/16460 4000 17.3 59.35 0.70/0.40 0.05 40/64
TWN-P-380A-1 45 10700/11100   27 53.5 0.60/0.60 0.05 40/64
TWN-P-380A-1-AS 45 14300/- 3600 37 53.5 0.50/0.80 0.05 40/64
TWN-P-380A-1-IS 45 -/14800 3700 37 53.5 0.80/0.50 0.05 40/64
TWN-380A-2 26 20500/21300   27 102.5 0.60/0.60 0.05 40/64
TWN-P-380A-2-AS 26 27400/- 6900 37 102.5 0.50/0.80 0.05 40/64
TWN-P-380A-2-IS 26 -/28300 7000 37 102.5 0.80/0.50 0.05 40/64



Recommended accessories

Multi Tooth 2 Jaw Gripper Pneumatic Parallel TWN-P For Secure Holding 5
