| Sensor Voltage: | 5 VDC | Model: | 2-Jaw Pneumatic Parallel T-Slot Gripper TWT/TWT-P |
|---|---|---|---|
| Jaw Type: | T-Slot | Weight: | 0.3 Kg |
| Jaw Material: | Steel | Gripping Method: | Pneumatic |
| Gripping Direction: | Parallel | Operating Pressure: | 0.2 - 0.6 MPa |
| Mounting Type: | Through-hole | Gripping Force: | 25 N |
| Maximum Gripping Stroke: | 3 Mm | Maximum Gripping Force: | 50 N |
| Operating Temperature: | 0 - 60°C | Sensor Type: | Reed Switch |
| Gripping Stroke: | 2 Mm | ||
| Highlight: | 40mm Repeat Accuracy Eoat Grippers,Two Jaw Parallel Pneumatic Gripper Eoat |
||

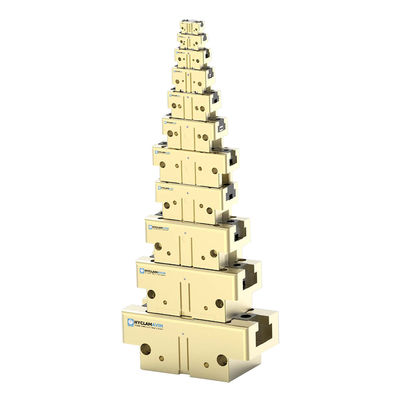

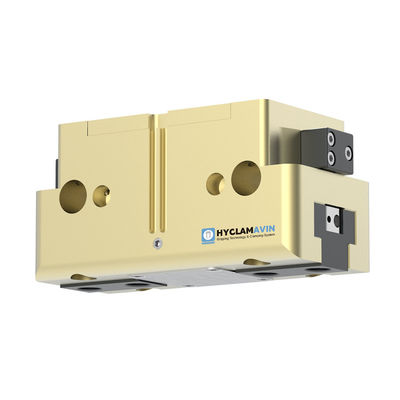

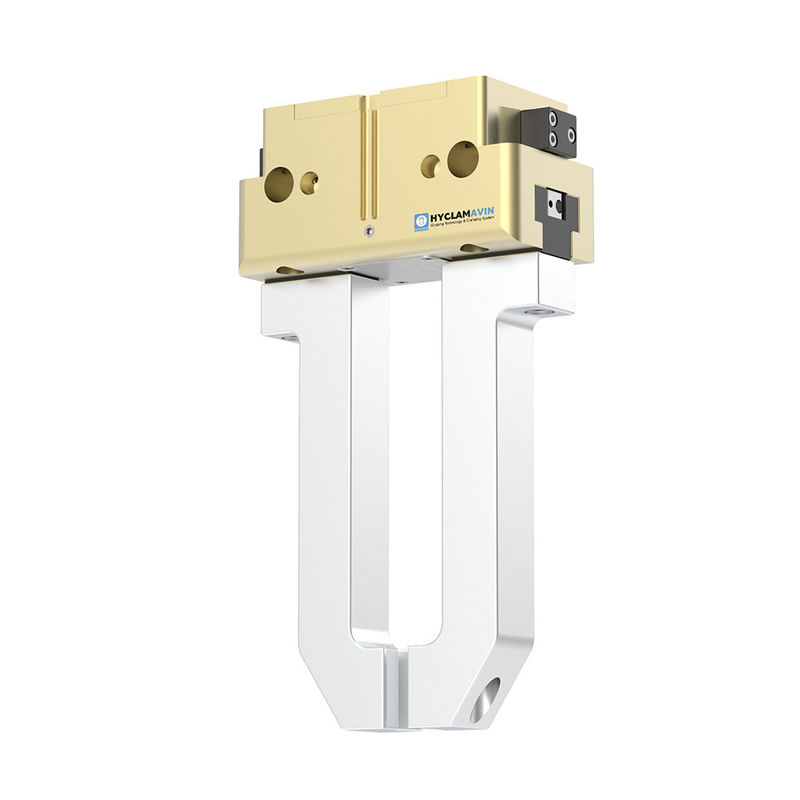

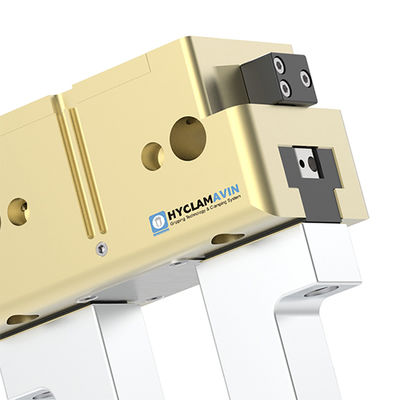

2-Jaw Pneumatic Parallel T-Slot Enhanced Gripper TWT-P
TWT-P Pneumatic Gripper with 0.02/0.02s Closing/Opening Time and 40mm Repeat Accuracy
Product Information
Excellent performance
1. The TWT-P grippers adopt high precision, T-slot guidance, which are compact, reliable and cost-effective.
● T-slot guidance, compact and reliable
● Economical gripper with higher cost performance
2. The TWT-P grippers have a variety of sensor interfaces and pneumatic interfaces .
Gripping force maintenance-AS/IS
1. The TWT-P grippers can be equipped with gripping force maintenance, expanded to TWN-P- AS/IS(AS:closing maintenance, IS:opening maintenance ).
2. The spring is used as the holding accumulator, gripping force maintenance ensure a minimum clamping force in the event of a pressure drop.
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Min. spring force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protecti on class IP |
| TWT-P-40A-1 | 2.5 | 198/210 | 0.08 | 0.99 | 0.02/0.02 | 0.01 | 40 | |
| TWT-P-40A-1-AS | 2.5 | 258/- | 60 | 0.1 | 0.99 | 0.02/0.03 | 0.01 | 40 |
| TWT-P-40A-1-IS | 2.5 | -/280 | 70 | 0.1 | 0.99 | 0.03/0.02 | 0.01 | 40 |
| TWT-P-50A-1 | 4 | 240/255 | 0.16 | 1.2 | 0.02/0.02 | 0.01 | 40 | |
| TWT-P-50A-1-AS | 4 | 330/- | 90 | 0.2 | 1.2 | 0.02/0.03 | 0.01 | 40 |
| TWT-P-50A-1-IS | 4 | -/345 | 90 | 0.2 | 1.2 | 0.03/0.02 | 0.01 | 40 |
| TWT-P-50A-2 | 2 | 430/460 | 0.16 | 2.15 | 0.02/0.02 | 0.01 | 40 | |
| TWT-P-50A-2-AS | 2 | 550/- | 120 | 0.2 | 2.15 | 0.02/0.03 | 0.01 | 40 |
| TWT-P-50A-2-IS | 2 | -/580 | 120 | 0.2 | 2.15 | 0.03/0.02 | 0.01 | 40 |
| TWT-P-64A-1 | 6 | 360/388 | 0.26 | 1.8 | 0.02/0.02 | 0.01 | 40 | |
| TWT-P-64A-1-AS | 6 | 515/- | 155 | 0.36 | 1.8 | 0.02/0.04 | 0.01 | 40 |
| TWT-P-64A-1-IS | 6 | -/543 | 155 | 0.36 | 1.8 | 0.04/0.02 | 0.01 | 40 |
| TWT-P-64A-2 | 3 | 730/785 | 0.26 | 3.65 | 0.02/0.02 | 0.01 | 40 | |
| TWT-P-64A-2-AS | 3 | 1040/- | 310 | 0.36 | 3.65 | 0.02/0.04 | 0.01 | 40 |
| TWT-P-64A-2-IS | 3 | -/1095 | 310 | 0.36 | 3.65 | 0.04/0.02 | 0.01 | 40 |
| TWT-P-80A-1 | 8 | 565/630 | 0.52 | 2.82 | 0.04/0.04 | 0.01 | 40 | |
| TWT-P-80A-1-AS | 8 | 805/- | 240 | 0.6 | 2.82 | 0.03/0.05 | 0.01 | 40 |
| TWT-P-80A-1-IS | 8 | -/870 | 240 | 0.6 | 2.82 | 0.05/0.03 | 0.01 | 40 |
| TWT-P-80A-2 | 4 | 1145/1275 | 0.52 | 5.72 | 0.04/0.04 | 0.01 | 40 | |
| TWT-P-80A-2-AS | 4 | 1535/- | 390 | 0.6 | 5.72 | 0.03/0.05 | 0.01 | 40 |
| TWT-P-80A-2-IS | 4 | -/1665 | 390 | 0.6 | 5.72 | 0.05/0.03 | 0.01 | 40 |
| TWT-P-100A-1 | 10 | 930/995 | 0.9 | 4.65 | 0.07/0.07 | 0.01 | 40 | |
| TWT-P-100A-1-AS | 10 | 1300/- | 370 | 1.1 | 4.65 | 0.05/0.09 | 0.01 | 40 |
| TWT-P-100A-1-IS | 10 | -/1345 | 350 | 1.1 | 4.65 | 0.09/0.05 | 0.01 | 40 |
| TWT-P-100A-2 | 5 | 1860/2000 | 0.9 | 9.3 | 0.07/0.07 | 0.01 | 40 | |
| TWT-P-100A-2-AS | 5 | 2400/- | 540 | 1.1 | 9.3 | 0.05/0.09 | 0.01 | 40 |
| TWT-P-100A-2-IS | 5 | -/2700 | 700 | 1.1 | 9.3 | 0.09/0.05 | 0.01 | 40 |
| TWT-P-110A-1 | 20 | 1230/1330 | 2.5 | 6.15 | 0.15/0.15 | 0.01 | 40 | |
| TWT-P-125A-1 | 13 | 1475/1590 | 1.4 | 7.37 | 0.10/0.10 | 0.01 | 40 | |
| TWT-P-125A-1-AS | 13 | 2125/- | 650 | 1.9 | 7.37 | 0.08/0.12 | 0.01 | 40 |
| TWT-P-125A-1-IS | 13 | -/2240 | 650 | 1.9 | 7.37 | 0.12/0.08 | 0.01 | 40 |
| TWT-P-125A-2 | 6 | 2990/3220 | 1.4 | 14.95 | 0.10/0.10 | 0.01 | 40 | |
| TWT-P-125A-2-AS | 6 | 4190/- | 1200 | 1.9 | 14.95 | 0.08/0.12 | 0.01 | 40 |
| TWT-P-125A-2-IS | 6 | -/4420 | 1200 | 1.9 | 14.95 | 0.12/0.08 | 0.01 | 40 |
| TWT-P-160A-1 | 16 | 2600/2715 | 3 | 13 | 0.10/0.10 | 0.01 | 40 | |
| TWT-P-160A-1-AS | 16 | 3550/- | 900 | 3.8 | 13 | 0.10/0.20 | 0.01 | 40 |
| TWT-P-160A-1-IS | 16 | -/3615 | 900 | 3.8 | 13 | 0.20/0.10 | 0.01 | 40 |
| TWT-P-160A-2 | 8 | 5270/5500 | 3 | 26.35 | 0.10/0.10 | 0.01 | 40 | |
| TWT-P-160A-2-AS | 8 | 6770/- | 1500 | 3.8 | 26.35 | 0.10/0.20 | 0.01 | 40 |
| TWT-P-160A-2-IS | 8 | -/7000 | 1500 | 3.8 | 26.35 | 0.20/0.10 | 0.01 | 40 |
| TWT-P-200A-1 | 25 | 4300/4500 | 5.5 | 21.5 | 0.30/0.30 | 0.02 | 40 | |
| TWT-P-200A-1-AS | 25 | 5600/- | 1300 | 7 | 21.5 | 0.30/0.60 | 0.02 | 40 |
| TWT-P-200A-1-IS | 25 | -/6000 | 1500 | 7 | 21.5 | 0.60/0.30 | 0.02 | 40 |
| TWT-P-240A-1 | 30 | 5450/5680 | 8.7 | 27.25 | 0.50/0.50 | 0.04 | 40 | |
| TWT-P-240A-1-AS | 30 | 8200/- | 2750 | 11.8 | 27.25 | 0.45/0.90 | 0.04 | 40 |
| TWT-P-240A-1-IS | 30 | -/8430 | 2750 | 11.8 | 27.25 | 0.90/0.45 | 0.04 | 40 |
| TWT-P-300A-1 | 35 | 6850/7190 | 13.6 | 34.25 | 0.50/0.50 | 0.05 | 40 | |
| TWT-P-300A-1-AS | 35 | 8600/- | 1750 | 17.3 | 34.25 | 0.40/0.70 | 0.05 | 40 |
| TWT-P-300A-1-IS | 35 | -/8940 | 1750 | 17.3 | 34.25 | 0.70/0.40 | 0.05 | 40 |
Recommended accessories
