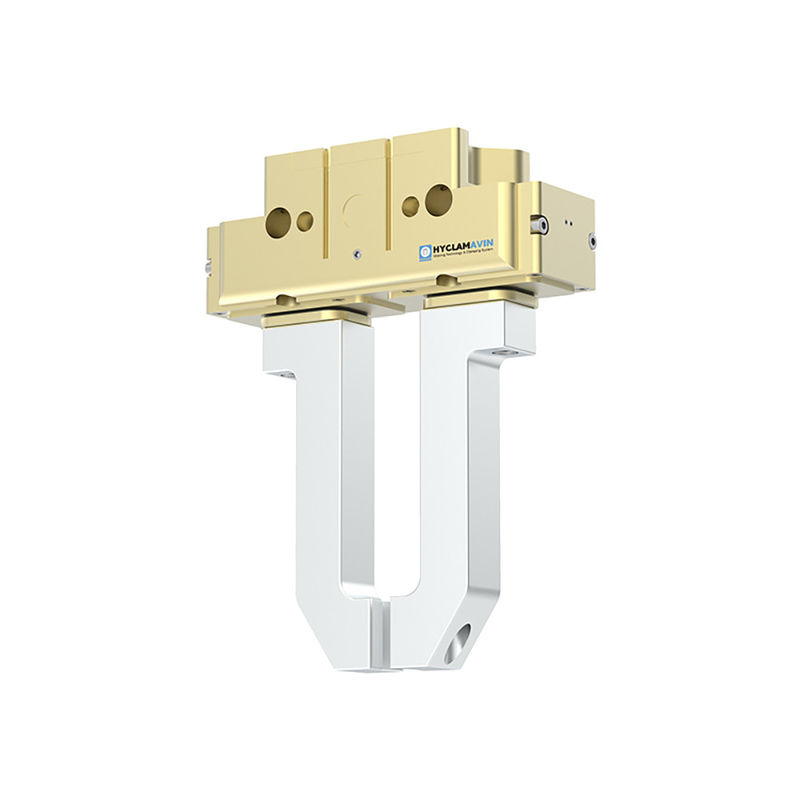

Precision Parallel Jaw Gripper Multiple Sensor 2 Finger Parallel Gripper

Precision Parallel Jaw Gripper Multiple Sensor 2 Finger Parallel Gripper
Precision Parallel Jaw Gripper Multiple Sensor 2 Finger Parallel Gripper Precision Parallel Jaw Gripper Multiple Sensor 2 Finger Parallel Gripper Precision Parallel Jaw Gripper Multiple Sensor 2 Finger Parallel Gripper Precision Parallel Jaw Gripper Multiple Sensor 2 Finger Parallel Gripper

Large Image :  Precision Parallel Jaw Gripper Multiple Sensor 2 Finger Parallel Gripper

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: TWN
Payment & Shipping Terms:
Minimum Order Quantity: 1 pce
Price: USD, 450-2850, PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Jaw Opening: Adjustable Gripping Method: Multi-Tooth
Product Type: Pneumatic Gripper Weight: 1.2kg
Mounting Type: Direct Mounting Gripping Force: High
Jaw Type: Parallel Maximum Jaw Opening: 100mm
Operating Temperature: 0-80°C Maximum Operating Pressure: 8 Bar
Number Of Jaws: 2 Material: Aluminum
Actuation Type: Pneumatic Product Code: TWN
Highlight:

Precision Parallel Jaw Gripper

,

Parallel Jaw Gripper Multiple Sensor

,

Multiple Sensor 2 Finger Parallel Gripper

2-Jaw Pneumatic Parallel Multi-Tooth Gripper TWN High Precision and Multiple Sensor Interfaces for Top Performance
Product Introduction

Precision Parallel Jaw Gripper Multiple Sensor 2 Finger Parallel Gripper 0

Outstanding Performance

  1. The TWN grippers are designed with high precision, permanent lubrication, and a multi-tooth, straight groove guidance system.

● Compact design suitable for short strokes and heavy loads

● Load is spread across a larger surface area to reduce contact stress

● Grease is distributed more rapidly and evenly

● Maintains motion rigidity and accuracy over an extended period

● The multi-tooth guide's oil storage structure helps extend the product's lifespan

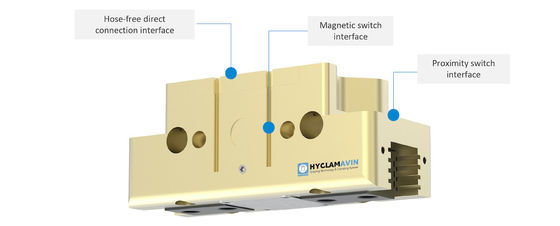

  1. The TWN grippers come with a range of sensor and pneumatic interface options.

Precision Parallel Jaw Gripper Multiple Sensor 2 Finger Parallel Gripper 1

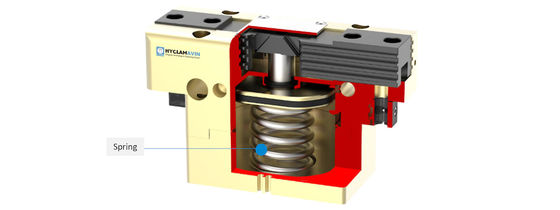

Gripping Force Maintenance - AS/IS

  1. The TWN grippers can be fitted with a gripping force maintenance system, available as TWN-P-AS/IS (AS: closing maintenance, IS: opening maintenance).

  2. A spring functions as the holding accumulator, ensuring a minimum clamping force even in the event of a pressure drop.

Precision Parallel Jaw Gripper Multiple Sensor 2 Finger Parallel Gripper 2



Dust-Proof Version

The TWN grippers can be supplied in a dust-proof version, expanded to TWN-SD, with an IP64 rating.



High-Temperature Version

The TWN grippers can be supplied in a high-temperature version, expanded to TWN-P-HT, with an increased temperature tolerance range from 5/90°C in the basic version to 5/130°C.

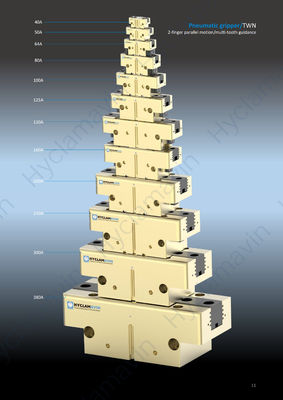

Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protection class IP
TWN-40A-1 2.5 130/140   0.08 0.65 0.02/0.02 0.01 40/64
TWN-40A-1-AS 2.5 170/- 40 0.1 0.65 0.02/0.03 0.01 40/64
TWN-40A-1-IS 2.5 -/190 50 0.1 0.65 0.03/0.02 0.01 40/64
TWN-50A-1 4 160/180   0.15 0.8 0.02/0.02 0.01 40/64
TWN-50A-1-AS 4 205/- 45 0.21 0.8 0.02/0.03 0.01 40/64
TWN-50A-1-IS 4 -/225 45 0.21 0.8 0.03/0.02 0.01 40/64
TWN-50A-2 2 330/370   0.15 1.65 0.02/0.02 0.01 40/64
TWN-50A-2-AS 2 425/- 95 0.21 1.65 0.02/0.03 0.01 40/64
TWN-50A-2-IS 2 -/465 95 0.21 1.65 0.03/0.02 0.01 40/64
TWN-64A-1 6 270/300   0.27 1.35 0.03/0.03 0.01 40/64
TWN-64A-1-AS 6 360/- 90 0.37 1.35 0.02/0.04 0.01 40/64
TWN-64A-1-IS 6 -/390 90 0.37 1.35 0.04/0.02 0.01 40/64
TWN-64A-2 3 560/620   0.27 2.8 0.03/0.03 0.01 40/64
TWN-64A-2-AS 3 750/- 190 0.37 2.8 0.02/0.04 0.01 40/64
TWN-64A-2-IS 3 -/810 190 0.37 2.8 0.04/0.02 0.01 40/64
TWN-80A-1 8 360/430   0.5 1.8 0.04/0.04 0.01 40/64
TWN-80A-1-AS 8 515/- 155 0.6 1.8 0.03/0.05 0.01 40/64
TWN-80A-1-IS 8 -/585 155 0.6 1.8 0.05/0.03 0.01 40/64
TWN-80A-2 4 745/890   0.5 3.72 0.04/0.04 0.01 40/64
TWN-80A-2-AS 4 1065/- 320 0.6 3.72 0.03/0.05 0.01 40/64
TWN-80A-2-IS 4 -/1210 320 0.6 3.72 0.05/0.03 0.01 40/64
TWN-100A-1 10 690/750   0.81 3.45 0.07/0.07 0.01 40/64
TWN-100A-1-AS 10 930/- 240 1 3.45 0.05/0.09 0.01 40/64
TWN-100A-1-IS 10 -/990 240 1 3.45 0.09/0.05 0.01 40/64
TWN-100A-2 5 1430/1550   0.81 7.15 0.07/0.07 0.01 40/64
TWN-100A-2-AS 5 1930/- 500 1 7.15 0.05/0.09 0.01 40/64
TWN-100A-2-IS 5 -/2050 500 1 7.15 0.09/0.05 0.01 40/64
TWN-110A-1 20 1050/1150   2 5.25 0.15/0.15 0.01 40/64
TWN-125A-1 13 1250/1400   1.24 6.25 0.10/0.10 0.01 40/64
TWN-125A-1-AS 13 1640/- 390 1.85 6.25 0.08/0.12 0.01 40/64
TWN-125A-1-IS 13 -/1790 390 1.85 6.25 0.12/0.08 0.01 40/64
TWN-125A-2 6 2590/2900   1.24 12.95 0.10/0.10 0.01 40/64
TWN-125A-2-AS 6 3390/- 800 1.85 12.95 0.08/0.12 0.01 40/64
TWN-125A-2-IS 6 -/3700 800 1.85 12.95 0.12/0.08 0.01 40/64
TWN-160A-1 16 1710/1820   2.6 8.55 0.15/0.15 0.01 40/64
TWN-160A-1-AS 16 2280/- 570 3.6 8.55 0.12/0.25 0.01 40/64
TWN-160A-1-IS 16 -/2390 570 3.6 8.55 0.25/0.12 0.01 40/64
TWN-160A-2 8 3550/3780   2.6 17.75 0.15/0.15 0.01 40/64
TWN-160A-2-AS 8 4770/- 1220 3.6 17.75 0.12/0.25 0.01 40/64
TWN-160A-2-IS 8 -/5000 1220 3.6 17.75 0.25/0.12 0.01 40/64
TWN-200A-1 25 2810/2980   5 14 0.35/0.35 0.02 40/64
TWN-200A-1-AS 25 3720/- 910 7.5 14 0.30/0.60 0.02 40/64
TWN-200A-1-IS 25 -/3890 910 7.5 14 0.60/0.30 0.02 40/64
TWN-200A-2 14 5700/6000   5 28.5 0.35/0.35 0.02 40/64
TWN-200A-2-AS 14 7300/- 1600 7.5 28.5 0.30/0.60 0.02 40/64
TWN-200A-2-IS 14 -/7700 1600 7.5 28.5 0.60/0.30 0.02 40/64
TWN-220A-1 16 3700/4000   3.9 18.5 0.16/0.16 0.02 40/64
TWN-240A-1 30 4500/4750   7.7 22.5 0.45/0.45 0.04 40/64
TWN-240A-1-AS 30 5600/- 1100 11.8 22.5 0.35/0.65 0.04 40/64
TWN-240A-1-IS 30 -/5850 1100 11.8 22.5 0.65/0.35 0.04 40/64
TWN-240A-2 17 6970/7360   7.7 34.8 0.45/0.45 0.04 40/64
TWN-240A-2-AS 17 8810/- 1840 11.8 34.8 0.35/0.65 0.04 40/64
TWN-240A-2-IS 17 -/9200 1840 11.8 34.8 0.65/0.35 0.04 40/64
TWN-300A-1 35 6040/6330   13.5 30.2 0.50/0.50 0.05 40/64
TWN-300A-1-AS 35 7440/- 1400 17.2 30.2 0.40/0.70 0.05 40/64
TWN-300A-1-IS 35 -/7730 1400 17.2 30.2 0.70/0.40 0.05 40/64
TWN-300A-2 20 10400/10900   13.5 52 0.50/0.50 0.05 40/64
TWN-300A-2-AS 20 12600/- 2200 17.2 52 0.40/0.70 0.05 40/64
TWN-300A-2-IS 20 -/13100 2200 17.2 52 0.70/0.40 0.05 40/64
TWN-380A-1 45 10100/10450   25.5 50.5 0.60/0.60 0.05 40/64
TWN-380A-1-AS 45 13400/- 3300 36 50.5 0.50/0.80 0.05 40/64
TWN-380A-1-IS 45 -/13750 3300 36 50.5 0.80/0.50 0.05 40/64
TWN-380A-2 26 17300/18000   25.5 86.5 0.60/0.60 0.05 40/64
TWN-380A-2-AS 26 23000/- 5700 37 86.5 0.50/0.80 0.05 40/64
TWN-380A-2-IS 26 -/23700 5700 37 86.5 0.80/0.50 0.05 40/64



Recommended accessories

Precision Parallel Jaw Gripper Multiple Sensor 2 Finger Parallel Gripper 3
