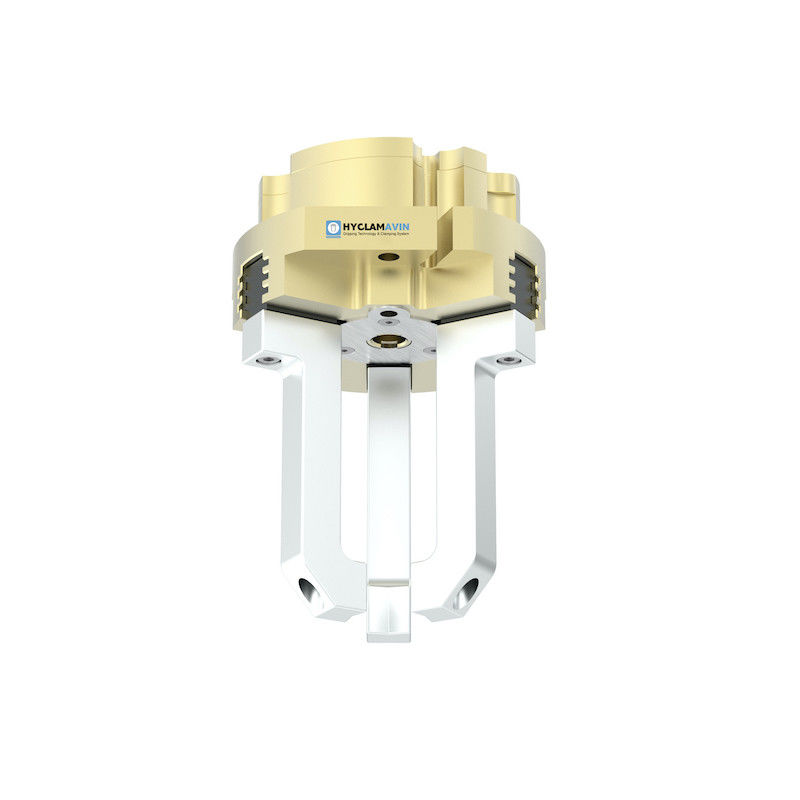

3 Jaw Heavy Duty Pneumatic Gripper THB Robot Arm Pneumatic Gripper

3 Jaw Heavy Duty Pneumatic Gripper THB Robot Arm Pneumatic Gripper
3 Jaw Heavy Duty Pneumatic Gripper THB Robot Arm Pneumatic Gripper

Large Image :  3 Jaw Heavy Duty Pneumatic Gripper THB Robot Arm Pneumatic Gripper

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: THB
Payment & Shipping Terms:
Minimum Order Quantity: 1 pce
Price: USD, 700-4700, PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Gripping Range: Adjustable Mounting Type: Flanged Joint
Actuation: Pneumatic Material: Aluminium + Steel
Gripping Force: High Number Of Jaws: 3
Operating Pressure: 2.5-8 Bar Manufacturer: Hyclamavin
Operating Temperature: 5-90°C Weight: 0.13-52 Kg
Stroke Per Jaw: 2.5 Mm-20 Mm Jaw Type: Parallel
Protection Class: IP40 Repeat Accuracy: 0.01mm
Recommended Workpiece Weight: 1.85-110 Kg
Highlight:

thb robot arm pneumatic gripper

,

heavy duty pneumatic gripper thb

,

3 jaw heavy duty pneumatic gripper

3-Jaw Pneumatic Parallel Hollow Through THB
Product Introduction

3 Jaw Heavy Duty Pneumatic Gripper THB Robot Arm Pneumatic Gripper 0



Excellent performance

  • The THB grippers adopt high precision, permanent lubrication, multi-tooth and straight groove guidance ;
  • The THB grippers have hollow through structure.
  1. Compact structure can be used for short stroke and heavy load
  2. The load is distributed to more surfaces to reduce the contact stress
  3. Grease can be distributed more quickly and evenly
  4. It can ensure enough motion rigidity and accuracy for a long time
  5. The oil storage structure in the multi tooth guide extends the service life
  6. The central hole can be used for tubular or rod- shaped parts to pass through
  7. The center hole is equipped with internal thread to facilitate the installation of accessories



  • The THB grippers have a variety of sensor interfaces and pneumatic interfaces.

3 Jaw Heavy Duty Pneumatic Gripper THB Robot Arm Pneumatic Gripper 1

Gripping force maintenance-AS/IS

  • The THB grippers can be equipped with gripping force maintenance, expanded to THB-AS/IS

(AS: closing maintenance, IS: opening maintenance)

  • The spring is used as the holding accumulator, gripping force maintenance ensure a minimum clamping force in the event of a pressure drop.

3 Jaw Heavy Duty Pneumatic Gripper THB Robot Arm Pneumatic Gripper 2



Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protection class IP
THB-50A-1 2.5 370/400   0.26 1.85 0.03/0.03 0.01 40
THB-50A-1-AS 2.5 490/- 120 0.36 1.85 0.02/0.04 0.01 40
THB-50A-1-IS 2.5 -/540 140 0.36 1.85 0.04/0.02 0.01 40/64
THB-64A-1 4 550/650   0.5 2.75 0.03/0.03 0.01 40
THB-64A-1-AS 4 680/- 130 0.62 2.75 0.02/0.04 0.01 40
THB-64A-1-IS 4 -/820 170 0.62 2.75 0.04/0.02 0.01 40
THB-64A-2 2 910/930   0.5 4.55 0.03/0.03 0.01 40
THB-64A-2-AS 2 1190/- 280 0.62 4.55 0.02/0.04 0.01 40
THB-64A-2-IS 2 -/1210 280 0.62 4.55 0.04/0.02 0.01 40/64
THB-80A-1 6 900/1000   0.8 4.5 0.05/0.05 0.01 40
THB-80A-1-AS 6 1120/- 220 1.1 4.5 0.04/0.06 0.01 40
THB-80A-1-IS 6 -/1200 200 1.1 4.5 0.06/0.04 0.01 40
THB-80A-2 3 1370/1520   0.8 6.8 0.05/0.05 0.01 40
THB-80A-2-AS 3 1730/- 360 1.1 6.8 0.04/0.06 0.01 40
THB-80A-2-IS 3 -/1920 400 1.1 6.8 0.06/0.04 0.01 40/64
THB-100A-1 8 1700/1920   1.45 8.5 0.10/0.10 0.01 40
THB-100A-1-AS 8 2200/- 500 2.2 8.5 0.10/0.20 0.01 40
THB-100A-1-IS 8 -/2600 680 2.2 8.5 0.20/0.10 0.01 40
THB-100A-2 4 3400/3630   1.45 17 0.10/0.10 0.01 40
THB-100A-2-AS 4 4300/- 900 2.2 17 0.10/0.20 0.01 40
THB-100A-2-IS 4 -/5130 1500 2.2 17 0.20/0.10 0.01 40
THB-125A-1 10 3100/3500   2.4 15.5 0.20/0.20 0.01 40
THB-125A-1-AS 10 3750/- 650 3.9 15.5 0.17/0.35 0.01 40
THB-125A-1-IS 10 -/4250 750 3.9 15.5 0.35/0.17 0.01 40
THB-125A-2 5 5400/6100   2.4 27 0.20/0.20 0.01 40
THB-160A-1 13 4600/6000   4.7 23 0.50/0.50 0.02 40
THB-160A-1-AS 13 5400/- 900 7.2 23 0.40/0.80 0.02 40
THB-160A-1-IS 13 -/7500 1500 7.2 23 0.80/0.40 0.02 40
THB-300A-1 35 13000/13800   37 65 1.30/1.30 0.05 40
THB-300A-1-AS 35 17400/- 4400 52 65 1.20/2.50 0.05 40
THB-300A-1-IS 35 -/17400 3600 52 65 2.50/1.20 0.05 40
THB-300A-2 20 22000/23500   37 110 1.30/1.30 0.05 40
THB-300A-2-AS 20 29700/- 7700 52 110 1.20/2.50 0.05 40
THB-300A-2-IS 20 -/29800 6300 52 110 2.50/1.20 0.05 40
