Product Details:
Payment & Shipping Terms:
|
| Gripper Weight: | 0.45-8.3 Kgs | Recommended Workpiece Weight: | 0.8-18.5kgs |
|---|---|---|---|
| Stroke Per Jaw: | 6 Mm-40 Mm | Actuation: | Pneumatic |
| Material: | High Strength Aluminum Alloy | Gripping Force: | High |
| Number Of Jaws: | 2 | Operating Pressure: | 2.5-8 Bar |
| Operating Temperature: | 5-90°C | Jaw Type: | Parallel |
| Protection Class: | IP40 | Repeat Accuracy: | 0.05mm |
| Highlight: | 2 Jaw Long Stroke Gripper,Long Stroke Gripper Pneumatic Parallel,THP heavy duty pneumatic gripper |
||

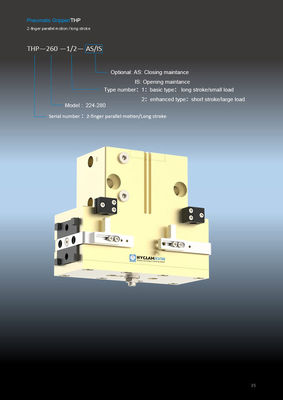

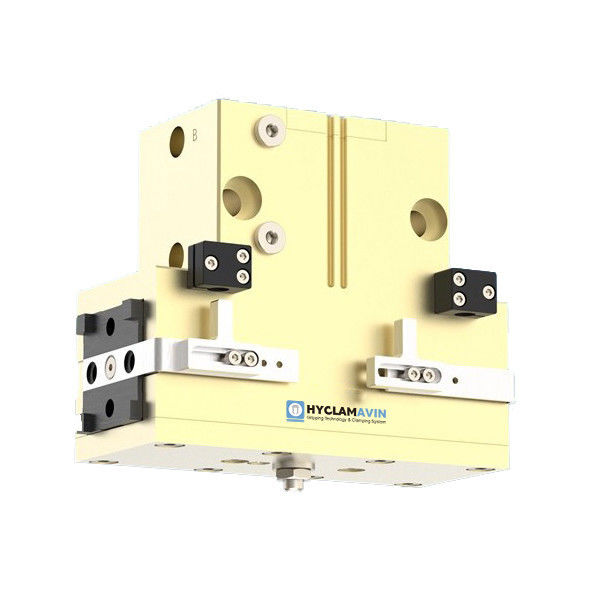

2-Jaw Pneumatic Parallel Long Stroke Gripper THP
Product Information

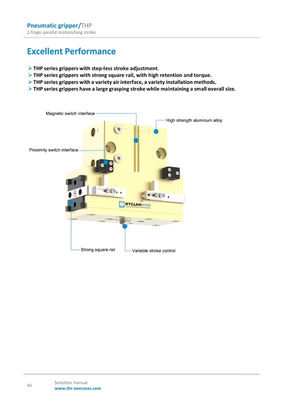

Excellent performance
1. THP series gripper with stepless stroke adjustment.
2. THP series gripper, with strong square rail, with high retention and torque.
3. THP series gripper, with a variety of air interface, a variety of installation methods.
4. THP series gripper, have a large grasping stroke while maintaining a small overall size.
Model and Technical Parameters
| Type |
Stroke per jaw [mm] |
Closing/ opening force[N] |
Min. spring force[N] |
Weight [kg] |
Recommended workpiece weight[kg] |
Closing/ opening time[s] |
Repeat accuracy [mm] |
Protection class IP |
| THP-224-1 | 12 | 160/165 | 0.45 | 0.8 | 0.04/0.04 | 0.05 | 40 | |
| THP-224-1-AS | 12 | 170/- | 10 | 0.52 | 0.8 | 0.04/0.06 | 0.05 | 40 |
| THP-224-2 | 6 | 340/350 | 0.45 | 1.7 | 0.04/0.04 | 0.05 | 40 | |
| THP-224-2-AS | 6 | 370/- | 30 | 0.52 | 1.7 | 0.04/0.06 | 0.05 | 40 |
| THP-240-1 | 20 | 440/450 | 1.2 | 2.2 | 0.08/0.08 | 0.05 | 40 | |
| THP-240-1-AS | 20 | 515/- | 75 | 1.3 | 2.2 | 0.08/0.10 | 0.05 | 40 |
| THP-240-2 | 8 | 1110/1130 | 1.2 | 5.5 | 0.08/0.08 | 0.05 | 40 | |
| THP-240-2-AS | 8 | 1300/- | 190 | 1.3 | 5.5 | 0.08/0.10 | 0.05 | 40 |
| THP-260-1 | 30 | 675/700 | 2.9 | 3.3 | 0.10/0.10 | 0.05 | 40 | |
| THP-260-1-AS | 30 | 810/- | 135 | 3.0 | 3.3 | 0.10/0.15 | 0.05 | 40 |
| THP-260-2 | 10 | 2140/2200 | 2.9 | 10.7 | 0.10/0.10 | 0.05 | 40 | |
| THP-260-2-AS | 10 | 2500/- | 360 | 3.0 | 10.7 | 0.10/0.15 | 0.05 | 40 |
| THP-280-1 | 40 | 1400/1450 | 8.1 | 7 | 0.20/0.20 | 0.05 | 40 | |
| THP-280-1-AS | 40 | 1700/- | 300 | 8.3 | 7 | 0.20/0.25 | 0.05 | 40 |
| THP-280-2 | 15 | 3700/3800 | 8.1 | 18.5 | 0.20/0.20 | 0.05 | 40 | |
| THP-280-2-AS | 15 | 4500/- | 800 | 8.3 | 18.5 | 0.20/0.25 | 0.05 | 40 |
2 finger pneumatic gripper, long stroke THP, China, suppliers, manufacturers, factory, custom, price, design, long stroke pneumatic gripper, two jaw parallel pneumatic gripper, heavy duty pneumatic gripper, 2 Finger robot Gripper, 2 Jaw gripper, 2 jaw air grippers
