Product Details:
Payment & Shipping Terms:
|
| Gripper Weight: | 12.6-22.3 Kgs | Stroke Per Jaw: | 75 Mm-175 Mm |
|---|---|---|---|
| Actuation: | Pneumatic | Material: | Steel |
| Closing/opening Force[N: | 9 | Number Of Jaws: | 2 |
| Operating Pressure: | 2.5-8 Bar | Manufacturer: | THR |
| Operating Temperature: | 5-90°C | Jaw Type: | Parallel |
| Protection Class: | IP67 | Repeat Accuracy: | 0.05mm |
| Highlight: | Pneumatic Parallel Long Stroke Gripper,Parallel Long Stroke Gripper IP67,IP67 Pneumatic Grippers For Industrial Automation |
||

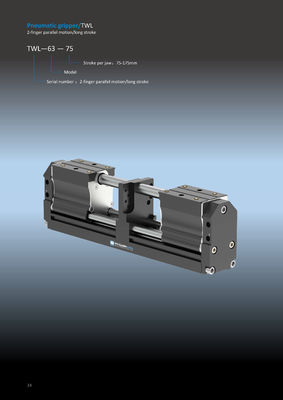

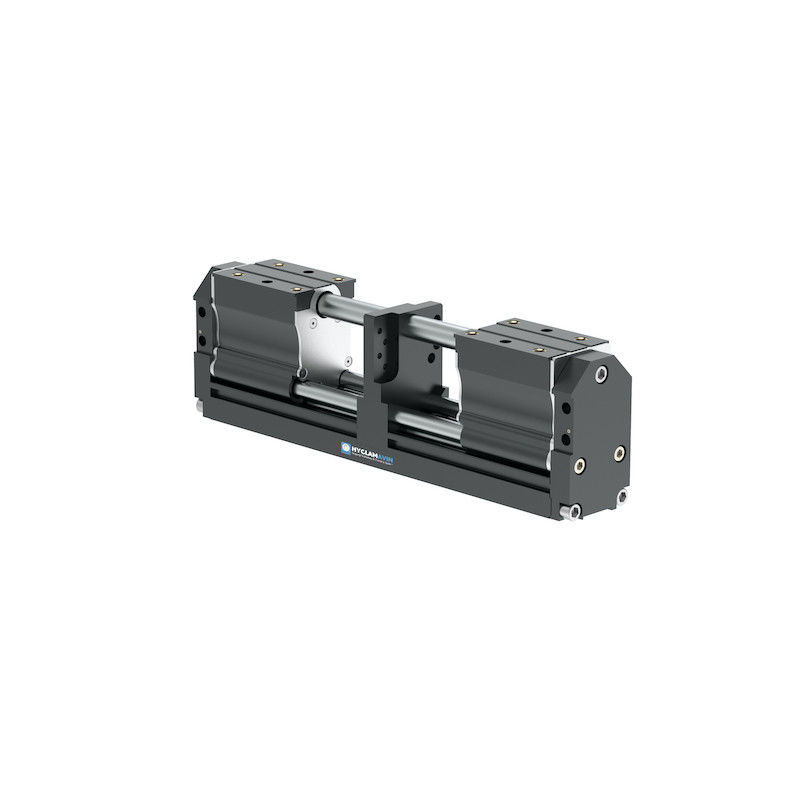

2-Jaw Pneumatic Parallel Long Stroke Gripper IP67 TWL
Product Information

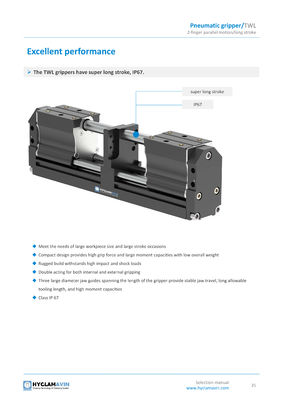

Excellent performance
1. The TWL grippers have super long stroke, IP67.
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Closing/ opening time[s] | Allowable moments Mx[Nm] | Allowable moments My/Mz[Nm] | Allowable forces Fa[N] | Repeat accuracy [mm] | Protection class IP |
| TWL-63-75 | 75 | 3100/2790 | 12.6 | 0.28/0.28 | 880 | 720 | 15500 | 0.05 | 64 |
| TWL-63-100 | 100 | 3100/2790 | 15 | 0.36/0.36 | 980 | 820 | 15500 | 0.05 | 64 |
| TWL-63-125 | 125 | 3100/2790 | 17.7 | 0.42/0.42 | 980 | 820 | 15500 | 0.05 | 64 |
| TWL-63-175 | 175 | 3100/2790 | 22.3 | 0.57/0.57 | 980 | 820 | 15500 | 0.05 | 64 |
2 finger pneumatic parallel gripper, long stroke twl, China, suppliers, manufacturers, factory, custom, price, design, 2 Jaw Pneumatic Gripper, Universal 2 finger parallel gripper, Two Finger Pneumatic Gripper, 2 Jaw Parallel Grippers, Parallel jaw gripper, 2 Jaw Parallel Gripper
