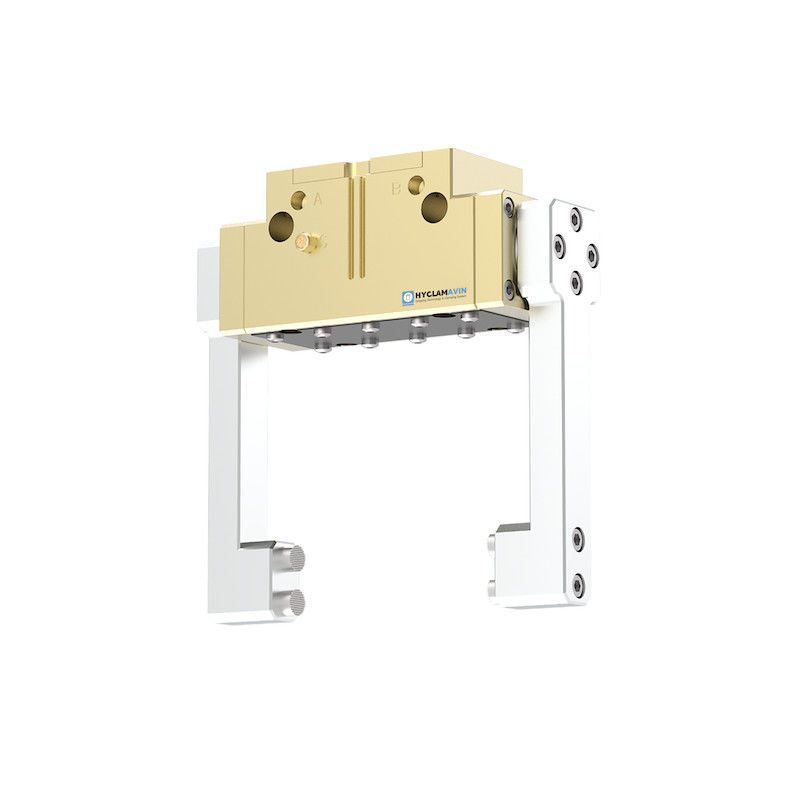

IP67 Two Jaw Parallel Pneumatic Gripper TPG Parallel Motion Two Jaw Gripper

IP67 Two Jaw Parallel Pneumatic Gripper TPG Parallel Motion Two Jaw Gripper
IP67 Two Jaw Parallel Pneumatic Gripper TPG Parallel Motion Two Jaw Gripper IP67 Two Jaw Parallel Pneumatic Gripper TPG Parallel Motion Two Jaw Gripper IP67 Two Jaw Parallel Pneumatic Gripper TPG Parallel Motion Two Jaw Gripper IP67 Two Jaw Parallel Pneumatic Gripper TPG Parallel Motion Two Jaw Gripper

Large Image :  IP67 Two Jaw Parallel Pneumatic Gripper TPG Parallel Motion Two Jaw Gripper

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: TPG
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD10.00-50.00/PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Gripper Weight: 0.12-52 Kgs Recommended Workpiece Weight: 0.65-49 Kgs
Stroke Per Jaw: 2.5 Mm-45 Mm Actuation: Pneumatic
Material: Steel Gripping Force: High
Number Of Jaws: 2 Operating Pressure: 2.5-8 Bar
Operating Temperature: 5-90°C Jaw Type: Parallel
Protection Class: IP67 Repeat Accuracy: 0.01mm
Highlight:

IP67 Two Jaw Parallel Pneumatic Gripper

,

Two Jaw Parallel Pneumatic Gripper TPG

,

IP67 Parallel Motion Two Jaw Gripper

2-Jaw Pneumatic Parallel High IP Class Gripper IP67 Multi-tooth Guidance TPG

2-Jaw Pneumatic Parallel Multi-Tooth Gripper/IP67 TPG



Product Information

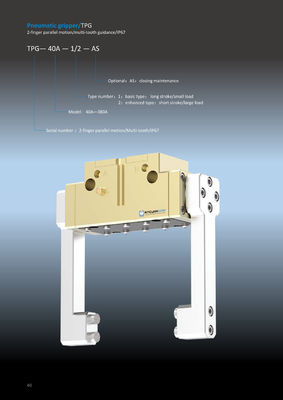

IP67 Two Jaw Parallel Pneumatic Gripper TPG Parallel Motion Two Jaw Gripper 0

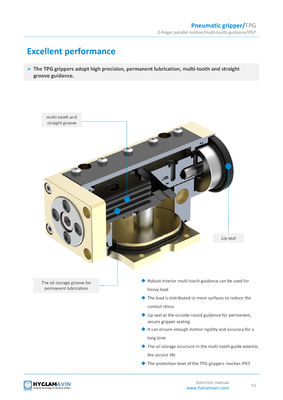

Excellent performance



1. The TPG grippers adopt high precision, permanent lubrication, multi-tooth and straight groove guidance.

IP67 Two Jaw Parallel Pneumatic Gripper TPG Parallel Motion Two Jaw Gripper 1

  • Robust interior multi-tooth guidance can be used for heavy load
  • The load is distributed to more surfaces to reduce the contact stress
  • Lip seal at the outside round guidance for permanent, secure gripper sealing
  • It can ensure enough motion rigidity and accuracy for a long time
  • The oil storage structure in the multi tooth guide extends the service life
  • The protection level of the TPG grippers reaches IP67

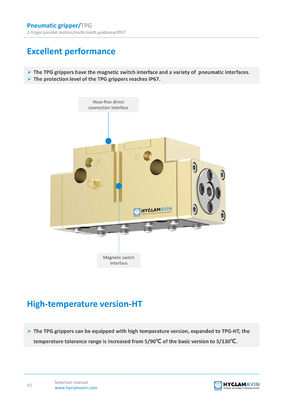

2. The TPG grippers have the magnetic switch interface and a variety of pneumatic interfaces.

3. The protection level of the TPG grippers reaches IP67.

IP67 Two Jaw Parallel Pneumatic Gripper TPG Parallel Motion Two Jaw Gripper 2





High-temperature version-HT

1. The TPG grippers can be equipped with high temperature version, expanded to TPG-HT, the temperature tolerance range is increased from 5/90℃ of the basic version to 5/130℃.





Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protecti on class IP
TPG-40A-1 2.5 130/140   0.12 0.65 0.03/0.03 0.01 67
TPG-40A-1-AS 2.5 173/- 43 0.14 0.65 0.03/0.05 0.01 67
TPG-40A-1-IS 2.5 -/193 53 0.14 0.65 0.05/0.03 0.01 67
TPG-50A-1 4 150/160   0.25 0.75 0.03/0.03 0.01 67
TPG-50A-1-AS 4 198/- 48 0.3 0.75 0.03/0.05 0.01 67
TPG-50A-1-IS 4 -/208 48 0.3 0.75 0.05/0.03 0.01 67
TPG-50A-2 2 308/330   0.25 1.54 0.03/0.03 0.01 67
TPG-50A-2-AS 2 408/- 100 0.3 1.54 0.03/0.05 0.01 67
TPG-50A-2-IS 2 -/430 100 0.3 1.54 0.05/0.03 0.01 67
TPG-64A-1 6 262/285   0.39 1.31 0.04/0.04 0.01 67
TPG-64A-1-AS 6 360/- 98 0.46 1.31 0.03/0.06 0.01 67
TPG-64A-1-IS 6 -/383 98 0.46 1.31 0.06/0.03 0.01 67
TPG-64A-2 3 540/590   0.39 2.7 0.04/0.04 0.01 67
TPG-64A-2-AS 3 740/- 200 0.46 2.7 0.03/0.06 0.01 67
TPG-64A-2-IS 3 -/790 200 0.46 2.7 0.06/0.03 0.01 67
TPG-80A-1 8 438/488   0.68 2.19 0.05/0.05 0.01 67
TPG-80A-1-AS 8 594/- 156 0.8 2.19 0.04/0.07 0.01 67
TPG-80A-1-IS 8 -/644 156 0.8 2.19 0.07/0.04 0.01 67
TPG-80A-2 4 900/1010   0.68 4.5 0.05/0.05 0.01 67
TPG-80A-2-AS 4 1230/- 330 0.8 4.5 0.04/0.07 0.01 67
TPG-80A-2-IS 4 -/1340 330 0.8 4.5 0.07/0.04 0.01 67
TPG-100A-1 10 732/805   1.1 3.66 0.09/0.09 0.01 67
TPG-100A-1-AS 10 997/- 265 1.35 3.66 0.07/0.12 0.01 67
TPG-100A-1-IS 10 -/1070 265 1.35 3.66 0.12/0.07 0.01 67
TPG-100A-2 5 1520/1670   1.1 7.6 0.09/0.09 0.01 67
TPG-100A-2-AS 5 2065/- 545 1.35 7.6 0.07/0.12 0.01 67
TPG-100A-2-IS 5 -/2215 450 1.35 7.6 0.12/0.07 0.01 67
TPG-125A-1 13 1200/1300   1.9 6 0.13/0.13 0.01 67
TPG-125A-1-AS 13 1640/- 440 2.35 6 0.11/0.16 0.01 67
TWN-125A-1-IS 13 -/1740 440 2.35 6 0.16/0.11 0.01 67
TPG-125A-2 6 2480/2685   1.9 12.4 0.13/0.13 0.01 67
TPG-125A-2-AS 6 3380/- 900 2.35 12.4 0.11/0.16 0.01 67
TPG-125A-2-IS 6 -/3585 900 2.35 12.4 0.16/0.11 0.01 67
TPG-160A-1 16 1810/1960   3.65 9.05 0.19/0.19 0.01 67
TPG-160A-1-AS 16 2410/- 600 4.65 9.05 0.16/0.33 0.01 67
TPG-160A-1-IS 16 -/2560 600 4.65 9.05 0.33/0.16 0.01 67
TPG-160A-2 8 3515/3810   3.65 17.57 0.19/0.19 0.01 67
TPG-160A-2-AS 8 4990/- 1475 4.65 17.57 0.16/0.33 0.01 67
TPG-160A-2-IS 8 -/5285 1475 4.65 17.57 0.33/0.16 0.01 67
TPG-200A-1 25 2900/3100   7.3 14.5 0.45/0.45 0.02 67
TPG-200A-1-AS 25 3890/- 990 9.5 14.5 0.40/0.80 0.02 67
TPG-200A-1-IS 25 -/4290 1190 9.5 14.5 0.80/0.40 0.02 67
TPG-200A-2 14 5000/5620   7.3 25 0.45/0.45 0.02 67
TPG-200A-2-AS 14 6710/- 1710 9.5 25 0.40/0.80 0.02 67
TPG-200A-2-IS 14 -/7680 2060 9.5 25 0.80/0.40 0.02 67
TPG-240A-1 30 3930/4150   11.5 19.65 0.60/0.60 0.04 67
TPG-240A-1-AS 30 4920/- 990 14.6 19.65 0.50/1.00 0.04 67
TPG-240A-1-IS 30 -/5140 990 14.6 19.65 1.00/0.50 0.04 67
TPG-240A-2 17 6120/6460   11.5 30.6 0.60/0.60 0.04 67
TPG-240A-2-AS 17 7780/- 1660 14.6 30.6 0.50/1.00 0.04 67
TPG-240A-2-IS 17 -/8120 1660 14.6 30.6 1.00/0.50 0.04 67
TPG-300A-1 35 5640/5870   19.6 28.2 0.70/0.70 0.05 67
TPG-300A-1-AS 35 6940/- 1300 23.6 28.2 0.60/1.00 0.05 67
TPG-300A-1-IS 35 -/7170 1300 23.6 28.2 1.00/0.60 0.05 67
TPG-300A-2 20 9800/10300   19.6 49 0.70/0.70 0.05 67
TPG-300A-2-AS 20 12000/- 2200 23.6 49 0.60/1.00 0.05 67
TPG-300A-2-IS 20 -/12500 2200 23.6 49 1.00/0.60 0.05 67
TPG-380A-1 45 8430/8740   42 42.15 1.10/1.10 0.05 67
TPG-380A-1-AS 45 11630/- 3200 52 42.15 0.95/1.10 0.05 67
TPG-380A-1-IS 45 -/11940 3200 52 42.15 1.10/0.95 0.05 67
