Product Details:
Payment & Shipping Terms:
|
| Gripper Weight: | 0.05-0.52 Kgs | Recommended Workpiece Weight: | 0.08-1.85 Kgs |
|---|---|---|---|
| Stroke Per Jaw: | 2.5 Mm-15 Mm | Actuation: | Pneumatic |
| Material: | Steel | Gripping Force: | High |
| Number Of Jaws: | 2 | Operating Pressure: | 2.5-8 Bar |
| Operating Temperature: | 5-90°C | Jaw Type: | Parallel |
| Protection Class: | IP30 | Repeat Accuracy: | 0.02mm |
| Highlight: | 2 Jaw Parallel Pneumatic Gripper,Parallel Pneumatic Gripper TSC,TSC Heavy Duty Pneumatic Gripper |
||

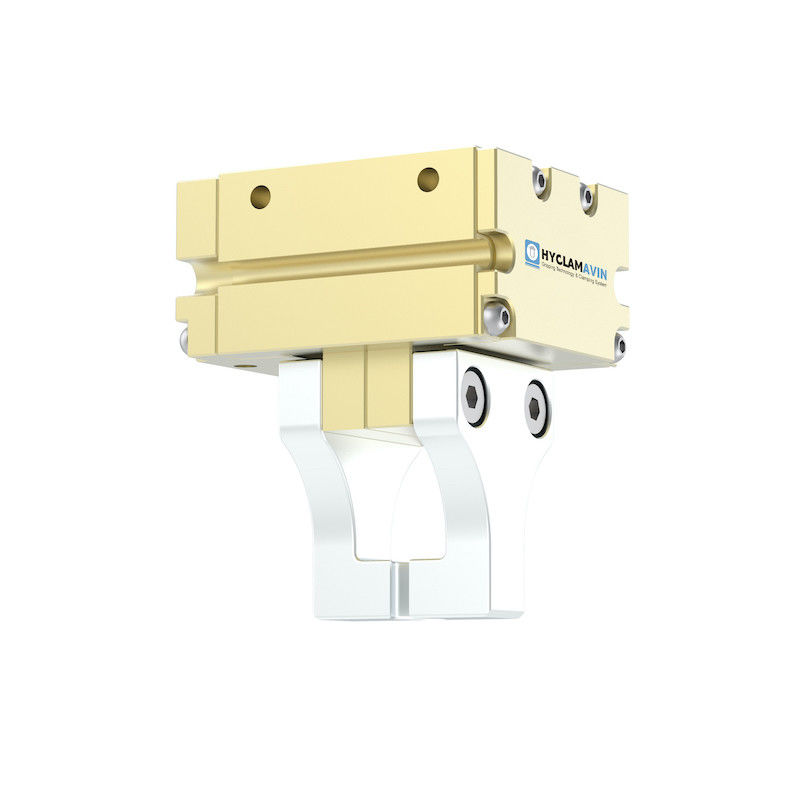

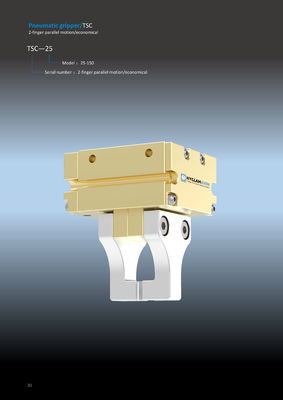

2-Jaw Pneumatic Parallel Economical Gripper TSC
Product Information

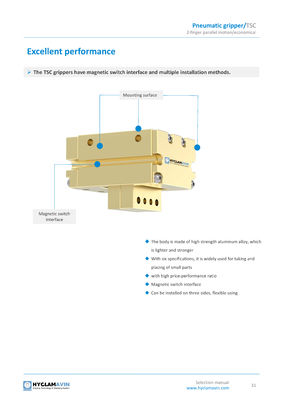

Excellent performance
1. The TSC grippers have magnetic switch interface and multiple installation methods.
The body is made of high strength aluminum alloy, which is lighter and stronger
With six specifications, it is widely used for taking and placing of small parts
With high price-performance ratio
Magnetic switch interface
Can be installed on three sides, flexible using
Model and Technical Parameters
| Model | Stroke per jaw [mm] | Closing/ opening force[N] | Weight [kg] | Recommended workpiece weight[kg] | Closing/ opening time[s] | Repeat accuracy [mm] | Protecti on class IP |
| TSC-25 | 2.5 | 16/16 | 0.05 | 0.08 | 0.03/0.03 | 0.02 | 30 |
| TSC-40 | 4 | 50/50 | 0.14 | 0.25 | 0.05/0.05 | 0.02 | 30 |
| TSC-75 | 7.5 | 110/110 | 0.20 | 0.55 | 0.06/0.06 | 0.02 | 30 |
| TSC-100 | 10 | 170/170 | 0.33 | 0.85 | 0.09/0.09 | 0.02 | 30 |
| TSC-120 | 12 | 240/240 | 0.53 | 1.2 | 0.10/0.10 | 0.02 | 30 |
| TSC-150 | 15 | 370/370 | 0.92 | 1.85 | 0.11/0.11 | 0.02 | 30 |
