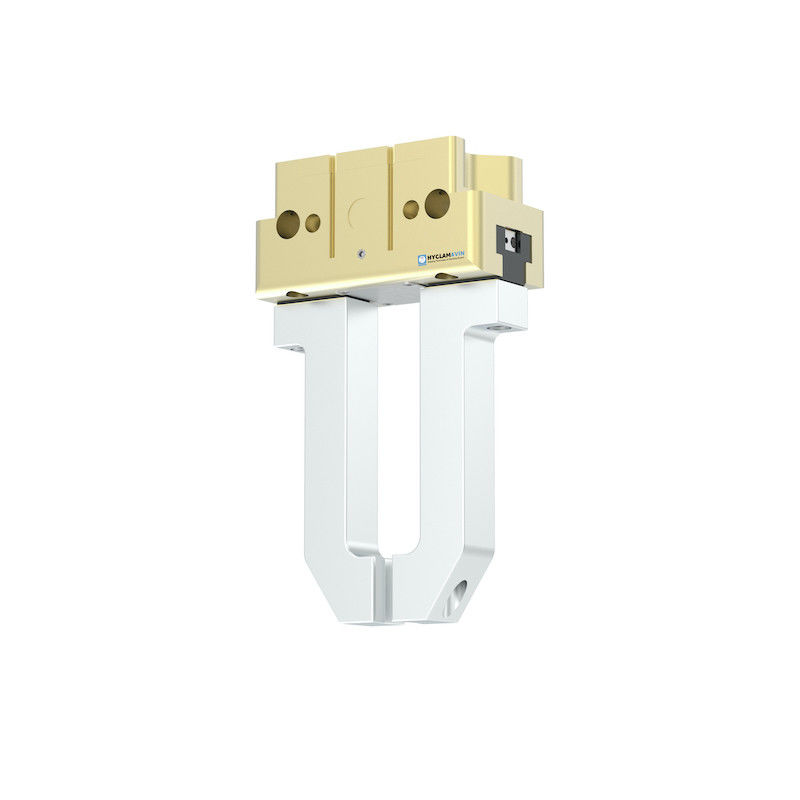

TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable

TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable
TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable

Large Image :  TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: TWT
Payment & Shipping Terms:
Minimum Order Quantity: 1 pce
Price: USD30.00-1360.00/PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Gripper Weight: 0.1-17.2 Kgs Recommended Workpiece Weight: 0.65-30.2 Kgs
Stroke Per Jaw: 2.5 Mm-35 Mm Actuation: Pneumatic
Material: Steel Gripping Force: High
Number Of Jaws: 2 Operating Pressure: 2.5-8 Bar
Operating Temperature: 5-90°C Jaw Type: Parallel
Protection Class: IP40 Repeat Accuracy: 0.01mm
Guidance: T-Slot Replace: SCHUNK JGP
Highlight:

TWT Two Jaw Parallel Pneumatic Gripper

,

Pneumatic Parallel Jaw Gripper Customizable

,

TWT Pneumatic Parallel Jaw Gripper

2-Jaw Pneumatic Parallel T-Slot Gripper TWT



Product Information

TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable 0

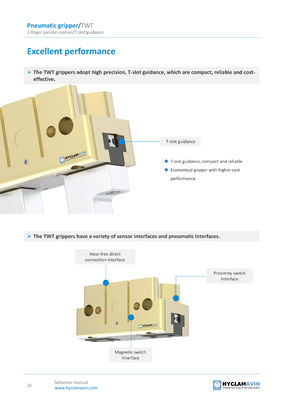

Excellent performance



1. The TWT grippers adopt high precision, T-slot guidance, which are compact, reliable and cost- effective.

TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable 1

  • T-slot guidance, compact and reliable

  • Economical gripper with higher cost performance

2. The TWT grippers have a variety of sensor interfaces and pneumatic interfaces.

TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable 2



Gripping force maintenance-AS/IS

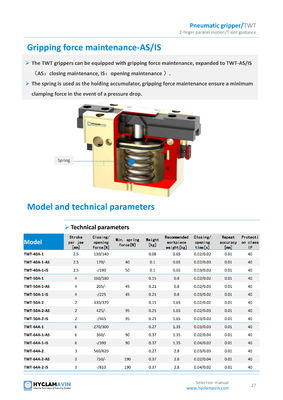

TWT Two Jaw Parallel Pneumatic Gripper Pneumatic Parallel Jaw Gripper Customizable 3

  • The TWT grippers can be equipped with gripping force maintenance, expanded to TWT-AS/IS(AS:closing maintenance, IS:opening maintenance ).
  • The spring is used as the holding accumulator, gripping force maintenance ensure a minimum clamping force in the event of a pressure drop.



Model and Technical Parameters

Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protecti on class IP
TWT-40A-1 2.5 130/140   0.08 0.65 0.02/0.02 0.01 40
TWT-40A-1-AS 2.5 170/- 40 0.1 0.65 0.02/0.03 0.01 40
TWT-40A-1-IS 2.5 -/190 50 0.1 0.65 0.03/0.02 0.01 40
TWT-50A-1 4 160/180   0.15 0.8 0.02/0.02 0.01 40
TWT-50A-1-AS 4 205/- 45 0.21 0.8 0.02/0.03 0.01 40
TWT-50A-1-IS 4 -/225 45 0.21 0.8 0.03/0.02 0.01 40
TWT-50A-2 2 330/370   0.15 1.65 0.02/0.02 0.01 40
TWT-50A-2-AS 2 425/- 95 0.21 1.65 0.02/0.03 0.01 40
TWT-50A-2-IS 2 -/465 95 0.21 1.65 0.03/0.02 0.01 40
TWT-64A-1 6 270/300   0.27 1.35 0.03/0.03 0.01 40
TWT-64A-1-AS 6 360/- 90 0.37 1.35 0.02/0.04 0.01 40
TWT-64A-1-IS 6 -/390 90 0.37 1.35 0.04/0.02 0.01 40
TWT-64A-2 3 560/620   0.27 2.8 0.03/0.03 0.01 40
TWT-64A-2-AS 3 750/- 190 0.37 2.8 0.02/0.04 0.01 40
TWT-64A-2-IS 3 -/810 190 0.37 2.8 0.04/0.02 0.01 40
TWT-80A-1 8 360/430   0.5 1.8 0.04/0.04 0.01 40
TWT-80A-1-AS 8 515/- 155 0.6 1.8 0.03/0.05 0.01 40
TWT-80A-1-IS 8 -/585 155 0.6 1.8 0.05/0.03 0.01 40
TWT-80A-2 4 745/890   0.5 3.72 0.04/0.04 0.01 40
TWT-80A-2-AS 4 1065/- 320 0.6 3.72 0.03/0.05 0.01 40
TWT-80A-2-IS 4 -/1210 320 0.6 3.72 0.05/0.03 0.01 40
TWT-100A-1 10 690/750   0.81 3.45 0.07/0.07 0.01 40
TWT-100A-1-AS 10 930/- 240 1 3.45 0.05/0.09 0.01 40
TWT-100A-1-IS 10 -/990 240 1 3.45 0.09/0.05 0.01 40
TWT-100A-2 5 1430/1550   0.81 7.15 0.07/0.07 0.01 40
TWT-100A-2-AS 5 1930/- 500 1 7.15 0.05/0.09 0.01 40
TWT-100A-2-IS 5 -/2050 500 1 7.15 0.09/0.05 0.01 40
TWT-110A-1 20 1050/1150   2 5.25 0.15/0.15 0.01 40
TWT-125A-1 13 1250/1400   1.24 6.25 0.10/0.10 0.01 40
TWT-125A-1-AS 13 1640/- 390 1.85 6.25 0.08/0.12 0.01 40
TWT-125A-1-IS 13 -/1790 390 1.85 6.25 0.12/0.08 0.01 40
TWT-125A-2 6 2590/2900   1.24 12.95 0.10/0.10 0.01 40
TWT-125A-2-AS 6 3390/- 800 1.85 12.95 0.08/0.12 0.01 40
TWT-125A-2-IS 6 -/3700 800 1.85 12.95 0.12/0.08 0.01 40
TWT-160A-1 16 1710/1820   2.6 8.55 0.15/0.15 0.01 40
TWT-160A-1-AS 16 2280/- 570 3.6 8.55 0.12/0.25 0.01 40
TWT-160A-1-IS 16 -/2390 570 3.6 8.55 0.25/0.12 0.01 40
TWT-160A-2 8 3550/3780   2.6 17.75 0.15/0.15 0.01 40
TWT-160A-2-AS 8 4770/- 1220 3.6 17.75 0.12/0.25 0.01 40
TWT-160A-2-IS 8 -/5000 1220 3.6 17.75 0.25/0.12 0.01 40
TWT-200A-1 25 2810/2980   5 14 0.35/0.35 0.02 40
TWT-200A-1-AS 25 3720/- 910 7.5 14 0.30/0.60 0.02 40
TWT-200A-1-IS 25 -/3890 910 7.5 14 0.60/0.30 0.02 40
TWT-220A-1 16 3700/4000   3.9 18.5 0.16/0.16 0.02 40
TWT-240A-1 30 4500/4750   7.7 22.5 0.45/0.45 0.04 40
TWT-240A-1-AS 30 5600/- 1100 11.8 22.5 0.35/0.65 0.04 40
TWT-240A-1-IS 30 -/5850 1100 11.8 22.5 0.65/0.35 0.04 40
TWT-300A-1 35 6040/6330   13.5 30.2 0.50/0.50 0.05 40
TWT-300A-1-AS 35 7440/- 1400 17.2 30.2 0.40/0.70 0.05 40
TWT-300A-1-IS 35 -/7730 1400 17.2 30.2 0.70/0.40 0.05 40
