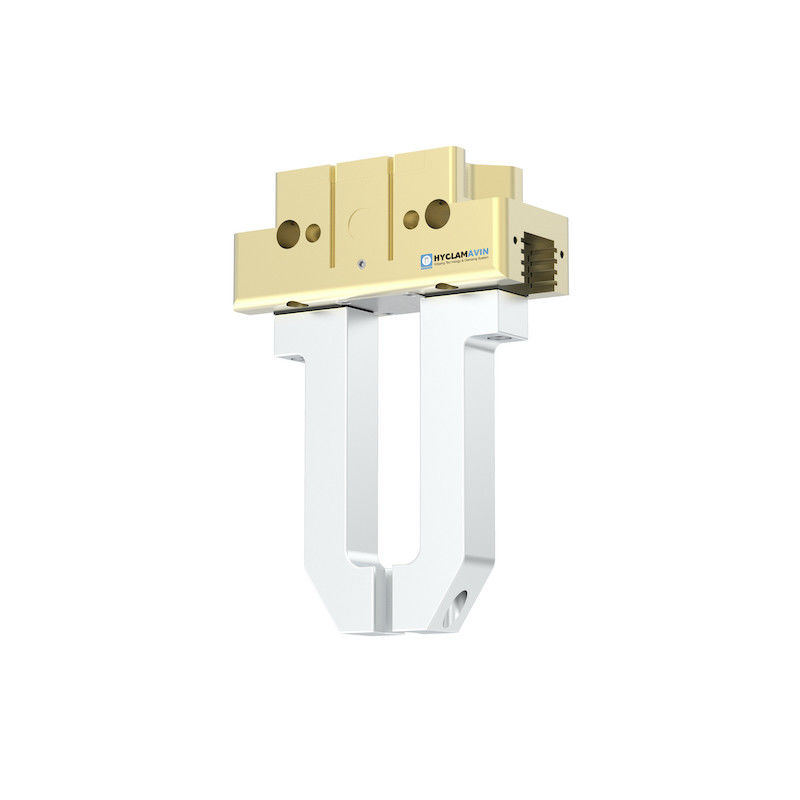

Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic

Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic
Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic

Large Image :  Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic

Product Details:
Place of Origin: China
Brand Name: Hyclamavin
Certification: ISO9001
Model Number: TWN
Payment & Shipping Terms:
Minimum Order Quantity: 1 pce
Price: USD, 450-2850, PC
Packaging Details: Carton Case
Delivery Time: 4-6 weeks
Payment Terms: L/C, T/T
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Gripping Range: Adjustable Mounting Type: Flanged Joint
Actuation: Pneumatic Material: Steel
Gripping Force: High Number Of Jaws: 2
Operating Pressure: 2.5-8 Bar Operating Temperature: 5-90°C
Weight: 0.1-37 Kg Stroke Per Jaw: 2.5 Mm-45 Mm
Jaw Type: Parallel Protection Class: IP40/IP64
Repeat Accuracy: 0.01mm
Highlight:

2 Jaw Parallel Gripper

,

Multi Tooth Parallel Gripper

,

Robot Eoat Gripper Pneumatic

2-Jaw Parallel Grippers, Multi-Tooth Guidance TWN



Product Information

Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic 0



Excellent performance

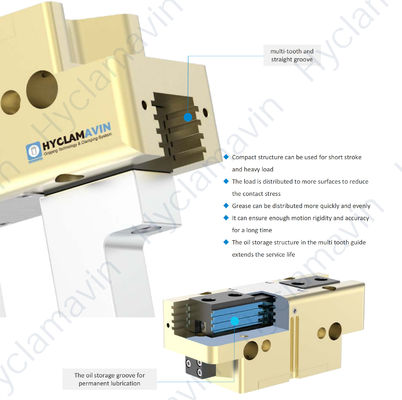

1. The TWN grippers adopt high precision, permanent lubrication, multi-tooth and straight groove guidance.

Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic 1

  • The TWN grippers adopt high precision, permanent lubrication, multi-tooth and straight groove guidance.
  • Compact structure can be used for short stroke and heavy load.
  • The load is distributed to more surfaces to reduce the contact stress.
  • Grease can be distributed more quickly and evenly.
  • It can ensure enough motion rigidity and accuracy for a long time.
  • The oil storage structure in the multi-tooth guide extends the service life.
  • The TWN grippers have a variety of sensor interfaces and pneumatic interfaces.

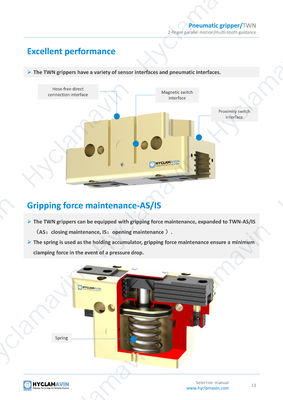

2. The TWN grippers have a variety of sensor interfaces and pneumatic interfaces.

Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic 2



Gripping force maintenance-AS/IS

Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic 3

  • The TWN grippers can be equipped with gripping force maintenance, expanded to TWN-AS/IS (AS: closing maintenance, IS: opening maintenance).
  • The spring is used as the holding accumulator, gripping force maintenance ensure a minimum clamping force in the event of a pressure drop.

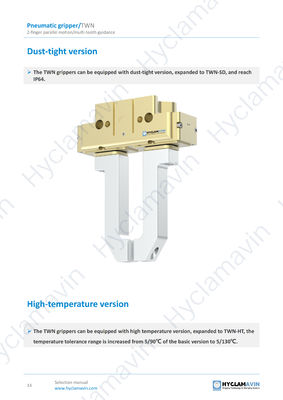

Dust-tight version



  • The TWN grippers can be equipped with dust-proof version, expanded to TWN-SD, and reach IP64.

Multi Tooth 2 Jaw Parallel Gripper TWN Robot Eoat Gripper Pneumatic 4

High-temperature version



  • The TWN grippers can be equipped with high temperature version, expanded to TWN-HT, the temperature tolerance range is increased from 5/90℃ of the basic version to 5/130℃.

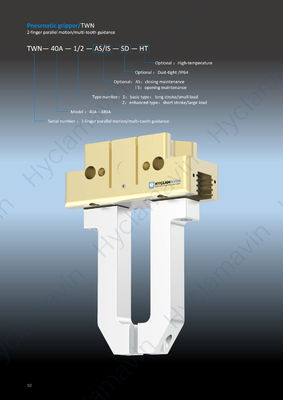

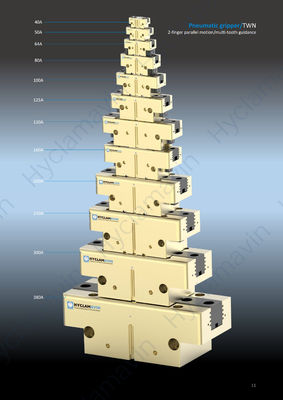

Model and Technical Parameters



Model Stroke per jaw [mm] Closing/ opening force[N] Min. spring force[N] Weight [kg] Recommended workpiece weight[kg] Closing/ opening time[s] Repeat accuracy [mm] Protecti on class IP
TWN-40A-1 2.5 130/140   0.08 0.65 0.02/0.02 0.01 40/64
TWN-40A-1-AS 2.5 170/- 40 0.1 0.65 0.02/0.03 0.01 40/64
TWN-40A-1-IS 2.5 -/190 50 0.1 0.65 0.03/0.02 0.01 40/64
TWN-50A-1 4 160/180   0.15 0.8 0.02/0.02 0.01 40/64
TWN-50A-1-AS 4 205/- 45 0.21 0.8 0.02/0.03 0.01 40/64
TWN-50A-1-IS 4 -/225 45 0.21 0.8 0.03/0.02 0.01 40/64
TWN-50A-2 2 330/370   0.15 1.65 0.02/0.02 0.01 40/64
TWN-50A-2-AS 2 425/- 95 0.21 1.65 0.02/0.03 0.01 40/64
TWN-50A-2-IS 2 -/465 95 0.21 1.65 0.03/0.02 0.01 40/64
TWN-64A-1 6 270/300   0.27 1.35 0.03/0.03 0.01 40/64
TWN-64A-1-AS 6 360/- 90 0.37 1.35 0.02/0.04 0.01 40/64
TWN-64A-1-IS 6 -/390 90 0.37 1.35 0.04/0.02 0.01 40/64
TWN-64A-2 3 560/620   0.27 2.8 0.03/0.03 0.01 40/64
TWN-64A-2-AS 3 750/- 190 0.37 2.8 0.02/0.04 0.01 40/64
TWN-64A-2-IS 3 -/810 190 0.37 2.8 0.04/0.02 0.01 40/64
TWN-80A-1 8 360/430   0.5 1.8 0.04/0.04 0.01 40/64
TWN-80A-1-AS 8 515/- 155 0.6 1.8 0.03/0.05 0.01 40/64
TWN-80A-1-IS 8 -/585 155 0.6 1.8 0.05/0.03 0.01 40/64
TWN-80A-2 4 745/890   0.5 3.72 0.04/0.04 0.01 40/64
TWN-80A-2-AS 4 1065/- 320 0.6 3.72 0.03/0.05 0.01 40/64
TWN-80A-2-IS 4 -/1210 320 0.6 3.72 0.05/0.03 0.01 40/64
TWN-100A-1 10 690/750   0.81 3.45 0.07/0.07 0.01 40/64
TWN-100A-1-AS 10 930/- 240 1 3.45 0.05/0.09 0.01 40/64
TWN-100A-1-IS 10 -/990 240 1 3.45 0.09/0.05 0.01 40/64
TWN-100A-2 5 1430/1550   0.81 7.15 0.07/0.07 0.01 40/64
TWN-100A-2-AS 5 1930/- 500 1 7.15 0.05/0.09 0.01 40/64
TWN-100A-2-IS 5 -/2050 500 1 7.15 0.09/0.05 0.01 40/64
TWN-110A-1 20 1050/1150   2 5.25 0.15/0.15 0.01 40/64
TWN-125A-1 13 1250/1400   1.24 6.25 0.10/0.10 0.01 40/64
TWN-125A-1-AS 13 1640/- 390 1.85 6.25 0.08/0.12 0.01 40/64
TWN-125A-1-IS 13 -/1790 390 1.85 6.25 0.12/0.08 0.01 40/64
TWN-125A-2 6 2590/2900   1.24 12.95 0.10/0.10 0.01 40/64
TWN-125A-2-AS 6 3390/- 800 1.85 12.95 0.08/0.12 0.01 40/64
TWN-125A-2-IS 6 -/3700 800 1.85 12.95 0.12/0.08 0.01 40/64
TWN-160A-1 16 1710/1820   2.6 8.55 0.15/0.15 0.01 40/64
TWN-160A-1-AS 16 2280/- 570 3.6 8.55 0.12/0.25 0.01 40/64
TWN-160A-1-IS 16 -/2390 570 3.6 8.55 0.25/0.12 0.01 40/64
TWN-160A-2 8 3550/3780   2.6 17.75 0.15/0.15 0.01 40/64
TWN-160A-2-AS 8 4770/- 1220 3.6 17.75 0.12/0.25 0.01 40/64
TWN-160A-2-IS 8 -/5000 1220 3.6 17.75 0.25/0.12 0.01 40/64
TWN-200A-1 25 2810/2980   5 14 0.35/0.35 0.02 40/64
TWN-200A-1-AS 25 3720/- 910 7.5 14 0.30/0.60 0.02 40/64
TWN-200A-1-IS 25 -/3890 910 7.5 14 0.60/0.30 0.02 40/64
TWN-200A-2 14 5700/6000   5 28.5 0.35/0.35 0.02 40/64
TWN-200A-2-AS 14 7300/- 1600 7.5 28.5 0.30/0.60 0.02 40/64
TWN-200A-2-IS 14 -/7700 1600 7.5 28.5 0.60/0.30 0.02 40/64
TWN-220A-1 16 3700/4000   3.9 18.5 0.16/0.16 0.02 40/64
TWN-240A-1 30 4500/4750   7.7 22.5 0.45/0.45 0.04 40/64
TWN-240A-1-AS 30 5600/- 1100 11.8 22.5 0.35/0.65 0.04 40/64
TWN-240A-1-IS 30 -/5850 1100 11.8 22.5 0.65/0.35 0.04 40/64
TWN-240A-2 17 6970/7360   7.7 34.8 0.45/0.45 0.04 40/64
TWN-240A-2-AS 17 8810/- 1840 11.8 34.8 0.35/0.65 0.04 40/64
TWN-240A-2-IS 17 -/9200 1840 11.8 34.8 0.65/0.35 0.04 40/64
TWN-300A-1 35 6040/6330   13.5 30.2 0.50/0.50 0.05 40/64
TWN-300A-1-AS 35 7440/- 1400 17.2 30.2 0.40/0.70 0.05 40/64
TWN-300A-1-IS 35 -/7730 1400 17.2 30.2 0.70/0.40 0.05 40/64
TWN-300A-2 20 10400/10900   13.5 52 0.50/0.50 0.05 40/64
TWN-300A-2-AS 20 12600/- 2200 17.2 52 0.40/0.70 0.05 40/64
TWN-300A-2-IS 20 -/13100 2200 17.2 52 0.70/0.40 0.05 40/64
TWN-380A-1 45 10100/10450   25.5 50.5 0.60/0.60 0.05 40/64
TWN-380A-1-AS 45 13400/- 3300 36 50.5 0.50/0.80 0.05 40/64
TWN-380A-1-IS 45 -/13750 3300 36 50.5 0.80/0.50 0.05 40/64
TWN-380A-2 26 17300/18000   25.5 86.5 0.60/0.60 0.05 40/64
TWN-380A-2-AS 26 23000/- 5700 37 86.5 0.50/0.80 0.05 40/64
TWN-380A-2-IS 26 -/23700 5700 37 86.5 0.80/0.50 0.05 40/64
