Product Details:
Payment & Shipping Terms:
|
| Model: | SQC-21A | Mounting Type: | Screw-on |
|---|---|---|---|
| Number Of Tool Holders: | 6 | Operating Pressure: | 6 Bar |
| Safety Features: | Locking Mechanism | Warranty: | 1 Year |
| Product Type: | Mechanical Tool Changer | Clamping Range: | 3-30 Mm |
| Locking Mode: | Steel Ball Locking | Material: | Metal |
| Clamping Force: | 10 KN | Maximum Load Capacity: | 10 Kg |
| Color: | Silver | Tool Size Compatibility: | Up To 50 Mm In Diameter |

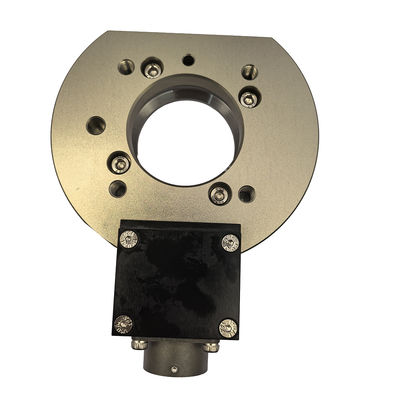

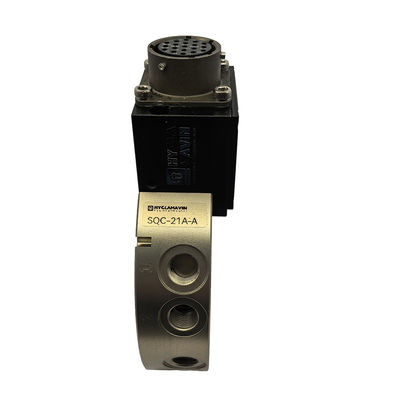

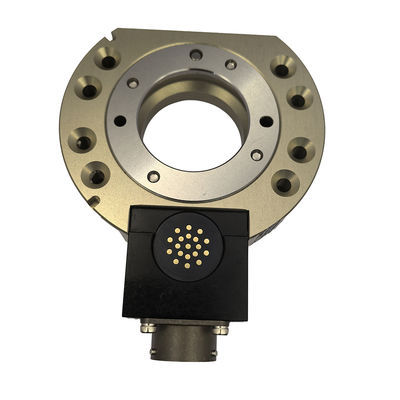

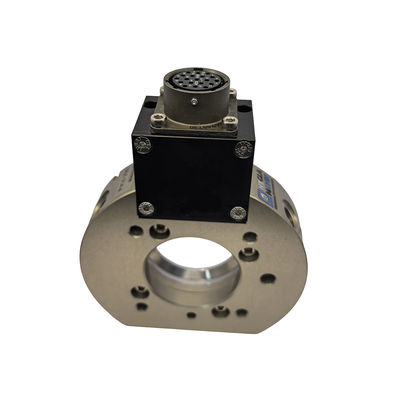

SQC-A Quick Tool Changer for Quick and Safe Tool Replacement in Industrial Settings
Excellent performance
1.SQC-A automatic tool changers simplify tool replacement while using a fail-safe mechanism to prevent tool plate detachment during pneumatic failure.
● Fail-safe system exerts minimal piston pressure and keeps the tool plate secure even when air is cut
● External clamp and larger piston diameter boost the allowable moment
● All key parts made with hardened stainless steel for long-term reliability
● Manual emergency unlocking functions without any spring tension
● Reduces downtime by enabling fast tool swapping
● Increases safety through non-contact, automated changing
Optional spring
An optional internal spring ensures extra protection during air supply interruption.
● Strengthens lock during operation
● Prevents falling of the tool plate when air is lost, doubling the protection with the locking mechanism

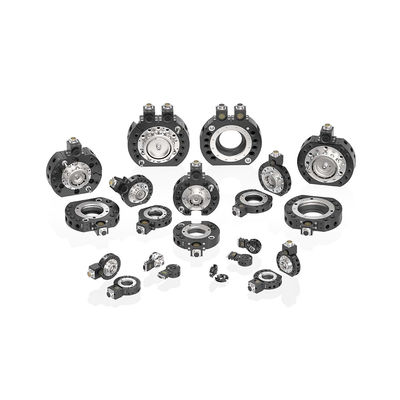

Model and Technical Parameters
| Model | Recommended handling weight[Kg] | Locking force (5.5bar)[N] | Repeat accuracy [mm] | Master plate weight [kg] | Tool plate weight [kg] | Max. moment My/Mx[Nm] | Max. moment Mz[Nm] | Air connection thread Pneumatic feed- through |
| SQC-1A | 1.4 | 170 | 0.01 | 0.04 | 0.03 | 2.75 | 3.43 | 4-M5 |
| SQC-5A | 8 | 690 | 0.02 | 0.29 | 0.15 | 37 | 50 | 6-M5 |
| SQC-11A | 16 | 1100 | 0.02 | 0.14 | 0.09 | 76 | 105 | 6-M5 |
| SQC-20A | 25 | 2300 | 0.02 | 0.51 | 0.33 | 170 | 218 | 12-M5 |
| SQC-21A | 25 | 2300 | 0.02 | 0.51 | 0.33 | 170 | 229 | 8-G1/8″ |
| SQC-40A | 50 | 4500 | 0.02 | 1.12 | 0.61 | 673 | 673 | 8-G1/8″ |
| SQC-41A | 50 | 4500 | 0.02 | 1.4 | 0.7 | 473 | 649 |
6-G3/8″ 4-G1/8″ |
| SQC-60A | 75 | 7400 | 0.02 | 1.3 | 0.7 | 586 | 315 | 8-G1/8″ |
| SQC-71A | 79 | 8100 | 0.02 | 1.86 | 1.34 | 1188 | 840 | 8-G1/4″ |
| SQC-76A | 100 | 12000 | 0.02 | 2.3 | 1.4 | 1625 | 2100 | 5-G3/8″ |
| SQC-110A | 150 | 12000 | 0.02 | 4 | 2.1 | 2350 | 2350 | 8-G3/8″ |
| SQC-150A | 200 | 16000 | 0.02 | 4.85 | 2.75 | 4075 | 1840 | 10-G3/8″ |
| SQC-160A | 300 | 31000 | 0.02 | 6.45 | 2.9 | 7165 | 3810 |
5-G3/8″ 4-G1/2″ |
| SQC-300A | 450 | 35000 | 0.02 | 11.86 | 7.34 | 9870 | 8450 | 10-G3/8″ |
