Product Details:
Payment & Shipping Terms:
|
| Model: | SQC-21A | Color: | Black |
|---|---|---|---|
| Tool Change Method: | Manual | Operating Temperature: | 0-80°C |
| Mounting Position: | Horizontal | Maximum Load Capacity: | 50kg |
| Compatible Tool Holders: | ISO 40, ISO 50 | Warranty: | 1 Year |
| Mounting Method: | Screw Mount | Operating Pressure: | 6-8 Bar |
| Lock Type: | Pneumatic Lock | Clamping Range: | 10-50mm |
| Weight: | 2.5kg | Material: | Aluminum Alloy |
| Tool Plate Weight: | 0.03kg-7.34kg | Number Of Tool Positions: | 6 |
Excellent performance

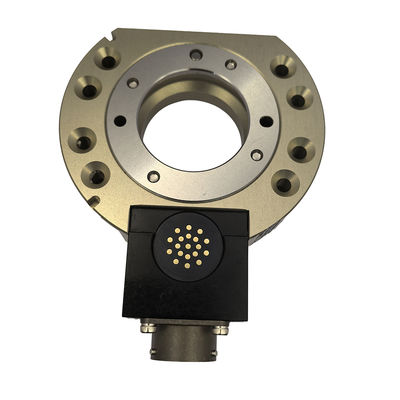

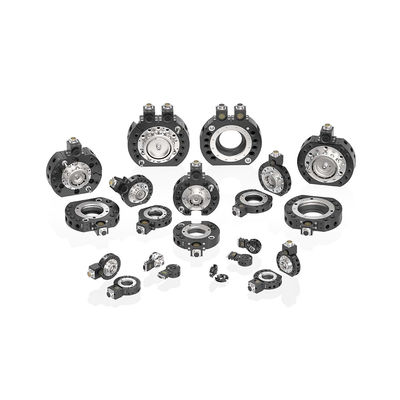

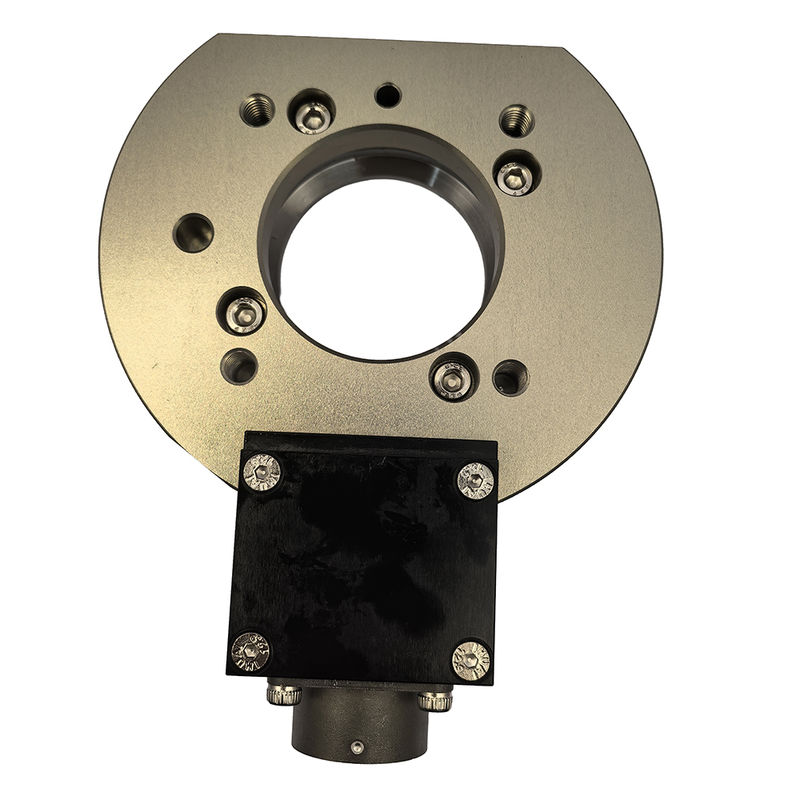

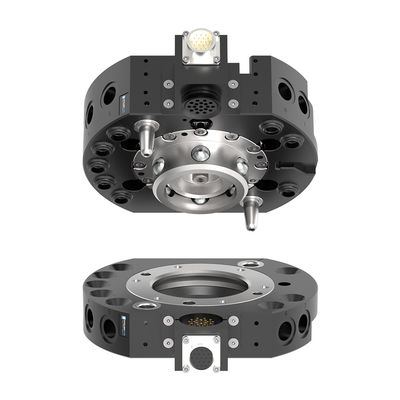

1.SQC-A quick-change tool changers enable automatic tool swapping and incorporate a safety system to prevent disengagement during air failure.
● Fail-safe locking ensures the piston remains under low stress, preventing detachment when air is cut
● A wide piston and external locking structure increase moment support
● Components are manufactured from hardened stainless steel for longevity
● Manual unlocking is possible without spring-related counterforce
● Enables fast tool replacement to optimize repair schedules
● Enhances safety through automatic tool handling
Optional spring
A spring option is available to further reinforce safety in the event of air failure.
● Boosts overall locking force
● Prevents unintentional tool drop, working in tandem with the fail-safe mechanism
Model and Technical Parameters
| Model | Recommended handling weight[Kg] | Locking force (5.5bar)[N] | Repeat accuracy [mm] | Master plate weight [kg] | Tool plate weight [kg] | Max. moment My/Mx[Nm] | Max. moment Mz[Nm] | Air connection thread Pneumatic feed- through |
| SQC-1A | 1.4 | 170 | 0.01 | 0.04 | 0.03 | 2.75 | 3.43 | 4-M5 |
| SQC-5A | 8 | 690 | 0.02 | 0.29 | 0.15 | 37 | 50 | 6-M5 |
| SQC-11A | 16 | 1100 | 0.02 | 0.14 | 0.09 | 76 | 105 | 6-M5 |
| SQC-20A | 25 | 2300 | 0.02 | 0.51 | 0.33 | 170 | 218 | 12-M5 |
| SQC-21A | 25 | 2300 | 0.02 | 0.51 | 0.33 | 170 | 229 | 8-G1/8″ |
| SQC-40A | 50 | 4500 | 0.02 | 1.12 | 0.61 | 673 | 673 | 8-G1/8″ |
| SQC-41A | 50 | 4500 | 0.02 | 1.4 | 0.7 | 473 | 649 |
6-G3/8″ 4-G1/8″ |
| SQC-60A | 75 | 7400 | 0.02 | 1.3 | 0.7 | 586 | 315 | 8-G1/8″ |
| SQC-71A | 79 | 8100 | 0.02 | 1.86 | 1.34 | 1188 | 840 | 8-G1/4″ |
| SQC-76A | 100 | 12000 | 0.02 | 2.3 | 1.4 | 1625 | 2100 | 5-G3/8″ |
| SQC-110A | 150 | 12000 | 0.02 | 4 | 2.1 | 2350 | 2350 | 8-G3/8″ |
| SQC-150A | 200 | 16000 | 0.02 | 4.85 | 2.75 | 4075 | 1840 | 10-G3/8″ |
| SQC-160A | 300 | 31000 | 0.02 | 6.45 | 2.9 | 7165 | 3810 |
5-G3/8″ 4-G1/2″ |
| SQC-300A | 450 | 35000 | 0.02 | 11.86 | 7.34 | 9870 | 8450 | 10-G3/8″ |
