Product Details:
Payment & Shipping Terms:
|
| Model: | SEM-K19-K | Warranty: | 1 Year |
|---|---|---|---|
| Number Of Pin Contacts: | 19 | Compatibility: | Universal |
| Color: | Black | Application: | Industrial Robots |
| Protection Class: | IP67 | Max.power Supply[A]: | 3 |
| Max.voltage[V]: | 50 | ||
| Highlight: | Electrical Modules Quick Change,Robotic End Effector Quick Change,Robotic End Effector |
||

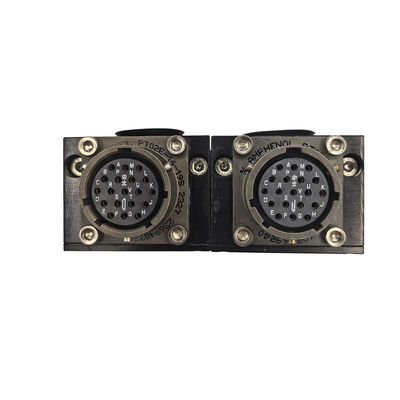

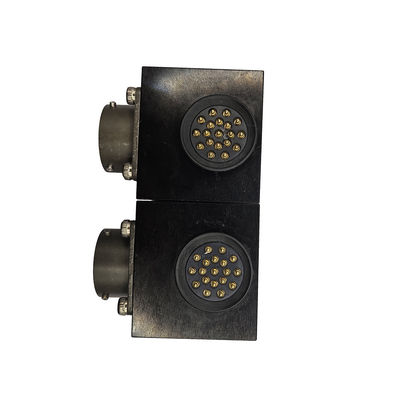

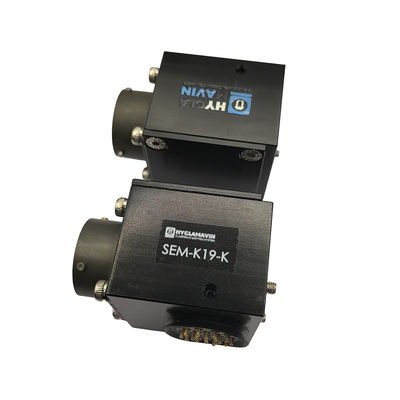

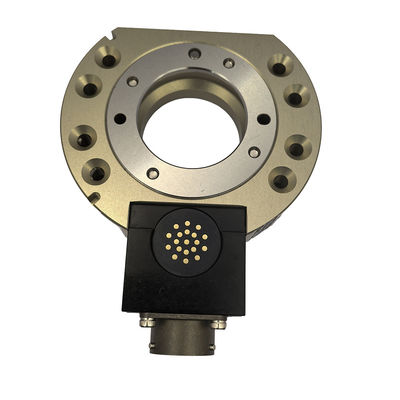

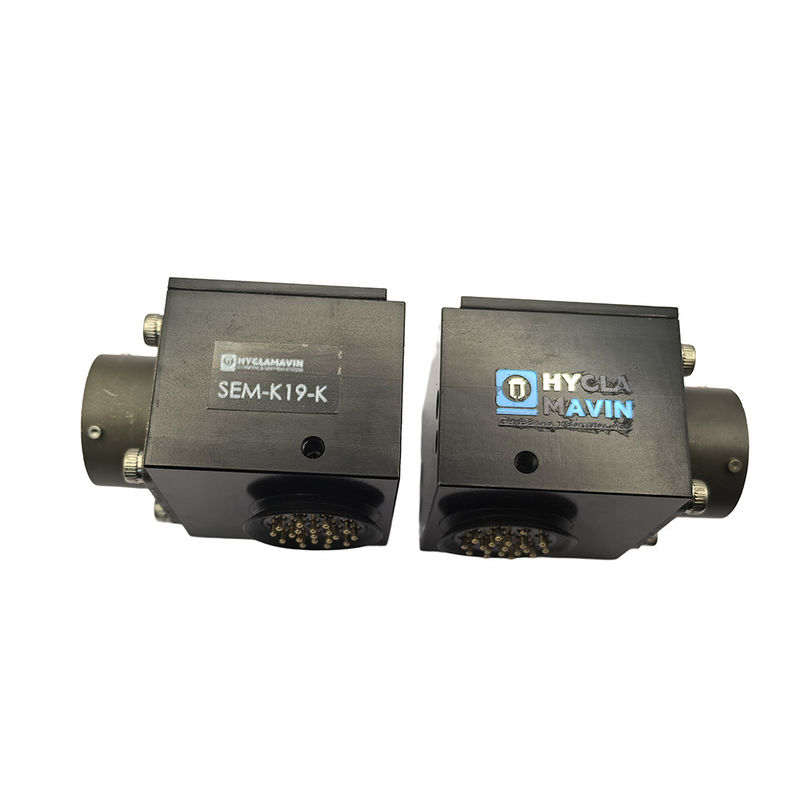

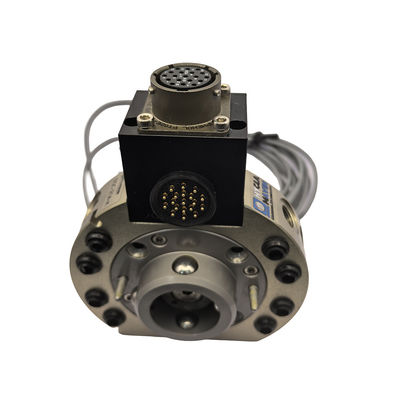

Designed for use with robotic quick-change systems, the SEM electrical module series provides high-performance electrical interfaces with 9, 19, or 26-core configurations.
Model and Technical Parameters
| Model | Number of pin contacts | max.power supply[A] | max.voltage[V] |
| SEM-K9-K | 9 | 2 | 24 |
| SEM-K9-A | 9 | 2 | 24 |
| SEM-K19-K | 19 | 3 | 50 |
| SEM-K19-A | 19 | 3 | 50 |
| SEM-R19-K | 19 | 3 | 50 |
| SEM-R19-A | 19 | 3 | 50 |
| SEM-R26-K | 26 | 3 | 50 |
| SEM-R26-A | 26 | 3 | 50 |
