Product Details:
Payment & Shipping Terms:
|
| Warranty: | 1 Year | Number Of Pin Contacts: | 9, 19, 26 |
|---|---|---|---|
| Highlight: | Robotic Electrical Modules,SEM Series Electrical Modules |
||

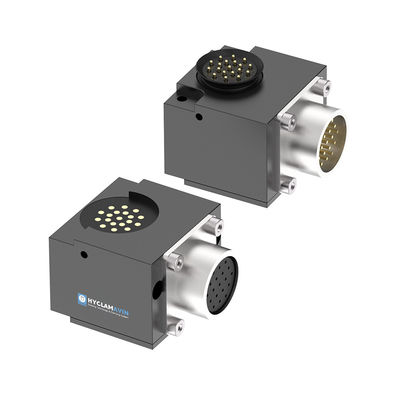

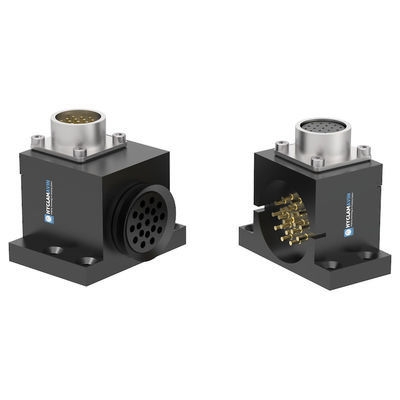

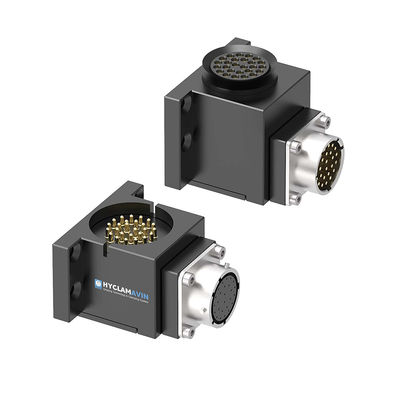

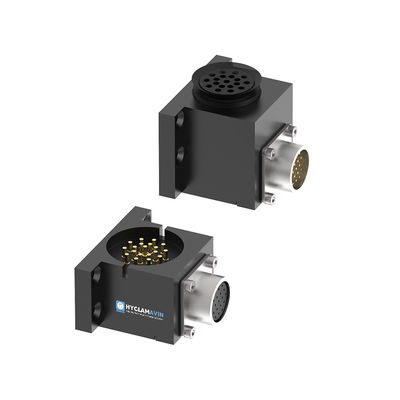

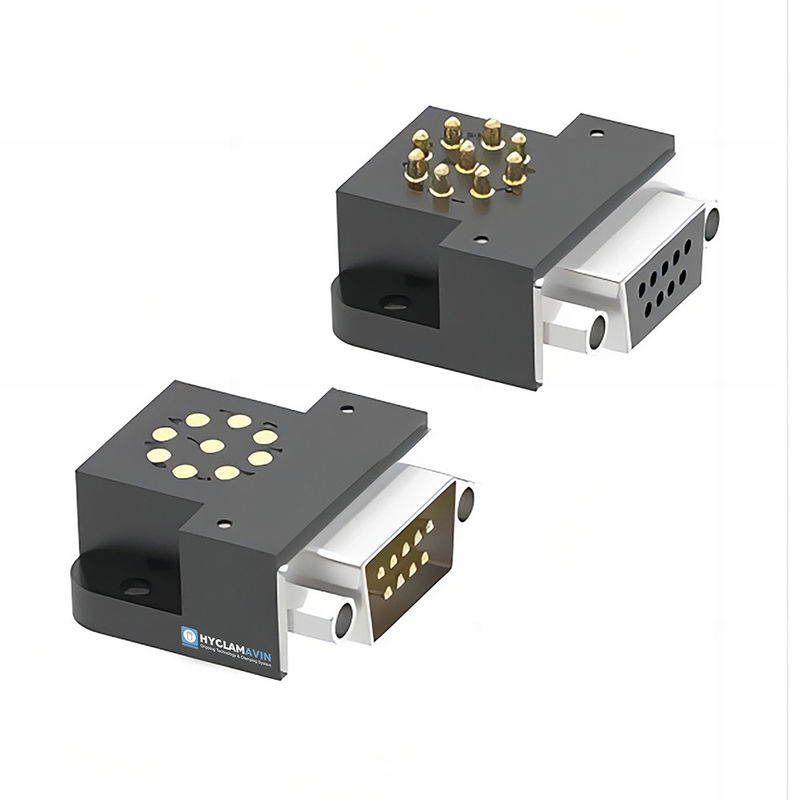

The SEM electrical modules, compatible with quick-change tool changers, deliver flexible electrical connectivity through 9, 19, and 26-pin options—ideal for automated industrial systems.
Model and Technical Parameters
| Model | Number of pin contacts | max.power supply[A] | max.voltage[V] |
| SEM-K9-K | 9 | 2 | 24 |
| SEM-K9-A | 9 | 2 | 24 |
| SEM-K19-K | 19 | 3 | 50 |
| SEM-K19-A | 19 | 3 | 50 |
| SEM-R19-K | 19 | 3 | 50 |
| SEM-R19-A | 19 | 3 | 50 |
| SEM-R26-K | 26 | 3 | 50 |
| SEM-R26-A | 26 | 3 | 50 |
