| Warranty: | 1 Year | Number Of Pin Contacts: | 9, 19, 26 |
|---|

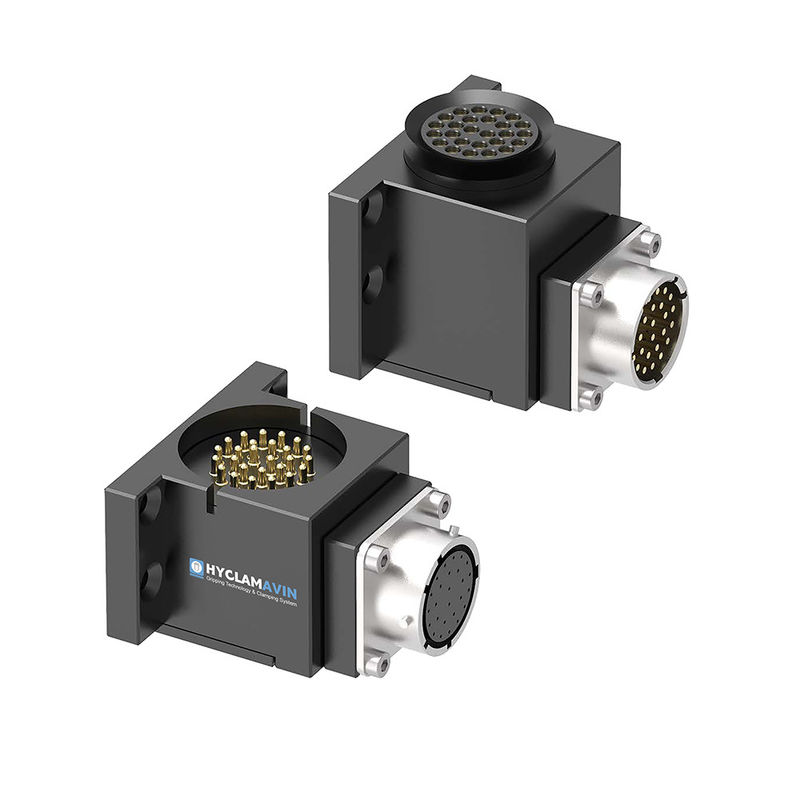

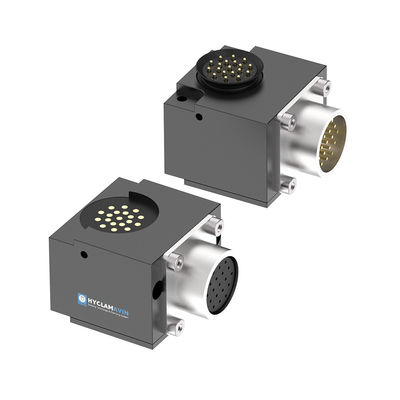

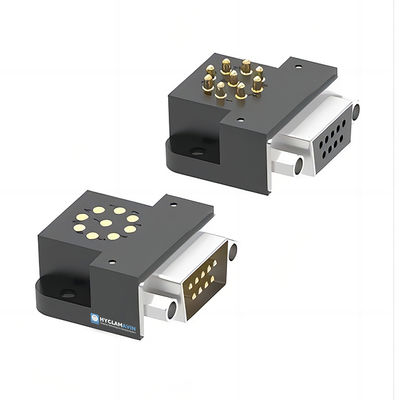

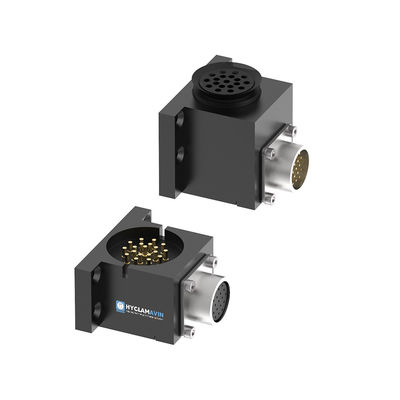

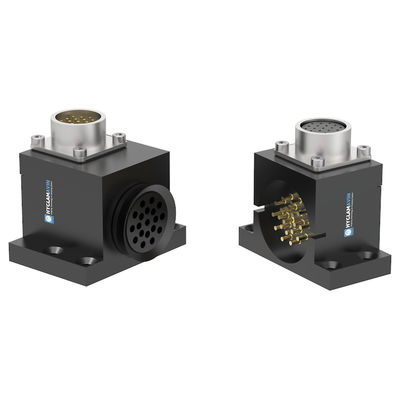

The SEM series electrical modules are designed for robotic quick-change tool changers, offering multiple core configurations including 9, 19, and 26 pins for efficient and reliable electrical transmission.
Model and Technical Parameters
| Model | Number of pin contacts | max.power supply[A] | max.voltage[V] |
| SEM-K9-K | 9 | 2 | 24 |
| SEM-K9-A | 9 | 2 | 24 |
| SEM-K19-K | 19 | 3 | 50 |
| SEM-K19-A | 19 | 3 | 50 |
| SEM-R19-K | 19 | 3 | 50 |
| SEM-R19-A | 19 | 3 | 50 |
| SEM-R26-K | 26 | 3 | 50 |
| SEM-R26-A | 26 | 3 | 50 |
