| Operating Pressure: | 6 Bar | Mounting Method: | Screw Mount |
|---|---|---|---|
| Material: | Aluminum Alloy | Weight: | 2.5kg |
| Lock Type: | Spring Lock | Tool Size Compatibility: | Up To 50 Mm In Diameter |
| Tool Change Method: | Manual | Compatible Tool Holders: | ISO 40, ISO 50 |
| Tool Change Time: | Less Than 5 Seconds | Clamping Force: | 10kN |
| Safety Features: | Locking Mechanism | Product Type: | Mechanical Component |
| Tool Plate Weight: | 0.6kg-1.6kg | Warranty: | 1 Year |
| Mounting Type: | Flange Mount |
Excellent performance

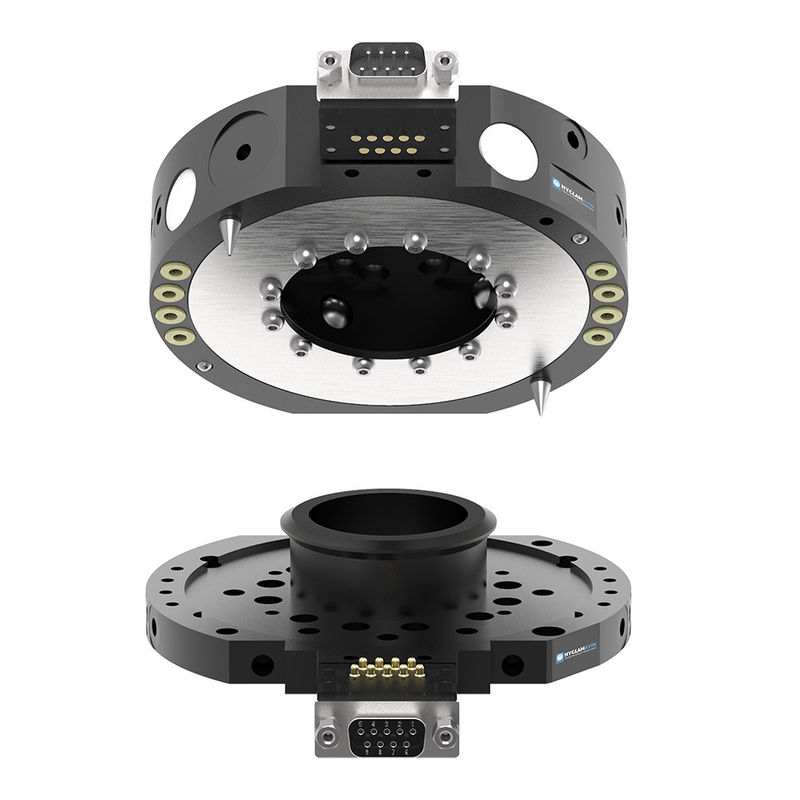

1.The SQC-B quick-change tool changers automatically change tools. These tool changers use spring locking and do not require an air supply once locked.
● The working state (locking state) is achieved in a gas cut-off mode, eliminating the need for gas supply. This makes it ideal for applications with low switching frequency, offering energy savings, safety, and no risk of tool drop due to gas interruption.
● The housing is made of lightweight aluminium alloy and undergoes a special hardening treatment for excellent wear and impact resistance.

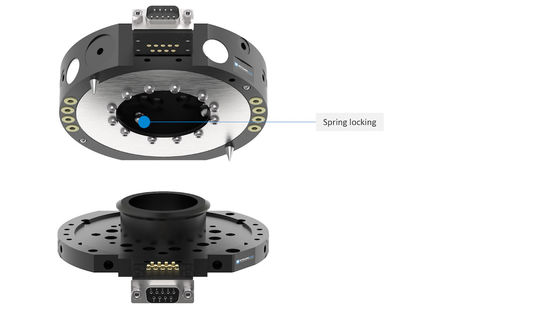

● The unique ejection spring locking mechanism does not require continuous air supply after the tool is locked, preventing the tool plate from falling off due to accidental gas interruption.
● All locking components are made of high-strength, high-hardness steel.
● The tool change process takes only seconds, allowing for quick maintenance and repair, thus reducing tool change time.
● Operator safety is enhanced by automatic tool changing.
Model and Technical Parameters
| Model | Recommended handling weight [Kg] | Locking force (5.5bar)[N] | Repeat accuracy [mm] | Master plate weight [kg] | Tool plate weight [kg] | Max. moment My/Mx[Nm] | Max. moment Mz[Nm] | Air connection thread Pneumatic feed- through |
| SQC-15B | 20 | 1768 | 0.02 | 0.9 | 0.6 | 51 | 72 | 8-M5 |
| SQC-35B | 50 | 3730 | 0.02 | 3.2 | 1.6 | 155 | 216 | 8-G1/8″ |
