Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum Alloy+High Strength And Hardness SS | Lock Type: | Spring Lock |
|---|---|---|---|
| Compatibility: | Universal | Recommended Handling Weight: | 20kg - 50kg |
| Repeat Accuracy[mm: | 0 | Master Plate Weight[Kg: | 0 |
| Tool Plate Weight: | 0.6kg-1.6kg | Locking Mode: | Steel Ball Locking |
| Min./max. Ambient Temperature[℃: | 0 | ||
| Highlight: | Robot Quick Changer Spring Lock,Quick Changer Spring Lock,High Strength Robot Quick Changer |
||
Excellent performance

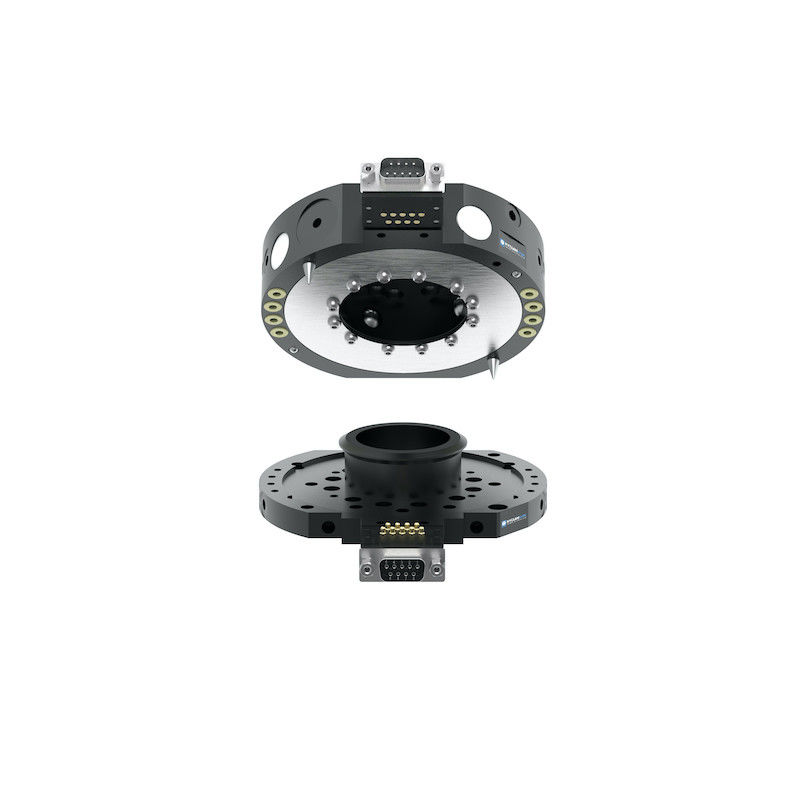

1. SQC-B quick-change tool changers change tools automatically, which are spring locking and do not need air supply after locking.
● The working state (locking state) is in the gas cut-off state, and no need for gas supply, so it is very suitable for the occasions with low switching frequency, energy saving, safety, and no gas cut-off drop risk
● The housing material is aluminium alloy, and it has lighter weight; The surface is treated with special hardening treatment, which has excellent wear resistance and impact resistance
● The special ejection spring locking structure does not need continuous air supply after locking, so as to avoid tool plate falling off because of accidental gas breaking
● All locking parts are made of high strength and high hardness steel
● Tools changed in seconds for maintenance and repair, can reduce tool changing time
● Operator safety increased by changing tools automatically
Model and Technical Parameters
| Model | Recommended handling weight [Kg] | Locking force (5.5bar)[N] | Repeat accuracy [mm] | Master plate weight [kg] | Tool plate weight [kg] | Max. moment My/Mx[Nm] | Max. moment Mz[Nm] | Air connection thread Pneumatic feed- through |
| SQC-15B | 20 | 1768 | 0.02 | 0.9 | 0.6 | 51 | 72 | 8-M5 |
| SQC-35B | 50 | 3730 | 0.02 | 3.2 | 1.6 | 155 | 216 | 8-G1/8″ |
