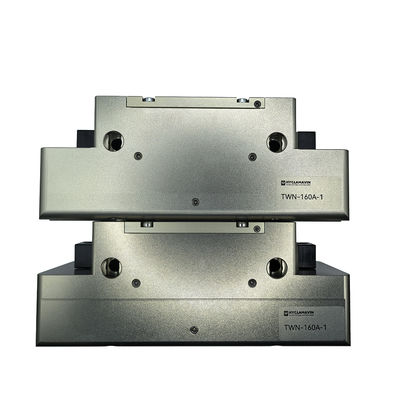

Long Stroke Electric Gripper Actuator Long Stroke Pneumatic Gripper Ideal for Precise Industrial Automation Applications

Product Description:

The Long Stroke Pneumatic Gripper is a highly precise and reliable gripping solution designed to meet the demanding needs of modern automation and robotic applications. Engineered with a repeatability of ±0.01 mm, this gripper ensures exceptional accuracy and consistent performance, making it ideal for tasks requiring meticulous handling and positioning. Its parallel jaw type design provides a stable and secure grip on various workpieces, enhancing operational efficiency and minimizing the risk of slippage or damage during handling.

One of the standout features of this Long Stroke Pneumatic Gripper is its jaw height of 30 mm, which offers a versatile gripping range suitable for a wide array of components and materials. The parallel jaw mechanism allows the jaws to move symmetrically in and out, ensuring that the gripping force is evenly distributed across the workpiece. This results in a firm hold that is both gentle and effective, accommodating delicate objects as well as more robust items without compromising safety or precision.

The gripper operates within an optimal pressure range of 0.4 to 0.7 MPa, providing a balance between power and control. This operating pressure range allows for smooth and responsive jaw movement, enabling quick and efficient gripping cycles. The pneumatic actuation system offers advantages such as low maintenance, high reliability, and cost-effectiveness, which are essential for long-term industrial use. Furthermore, the pneumatic design ensures that the gripper can be integrated seamlessly into existing automation systems that utilize compressed air, facilitating straightforward installation and operation.

As part of the evolving landscape of robotic tooling, the Long Stroke Pneumatic Gripper serves as an excellent complement to both traditional and advanced automation setups. It is especially effective when used alongside flexible robot grippers and electric gripper actuators, providing enhanced adaptability and control. While electric gripper actuators offer precise electronic control and programmability, the pneumatic gripper’s simplicity and robustness make it a preferred choice for applications where durability and ease of maintenance are priorities.

The integration of this Long Stroke Pneumatic Gripper into robotic systems significantly expands the capabilities of flexible robot grippers. By combining the mechanical advantages of pneumatic actuation with the precision of parallel jaw movement, this gripper delivers superior performance in pick-and-place operations, assembly lines, packaging, and material handling. Its design supports a range of industries including automotive, electronics, pharmaceuticals, and food processing, where consistent grip and repeatability are crucial for quality assurance and operational efficiency.

Moreover, the gripper’s parallel jaw design ensures compatibility with various end-effector configurations, allowing users to customize gripping solutions tailored to specific tasks. This flexibility is vital for modern manufacturing environments that demand quick changeovers and adaptability to different product types. The 30 mm jaw height further enhances this versatility, enabling the handling of diverse parts without the need for multiple gripper models.

In summary, the Long Stroke Pneumatic Gripper is a robust, precise, and versatile gripping tool that delivers exceptional repeatability of ±0.01 mm, a parallel jaw type for secure gripping, and an operating pressure range of 0.4 to 0.7 MPa for optimal performance. Its 30 mm jaw height and compatibility with flexible robot grippers and electric gripper actuators make it a valuable addition to any automated system. Whether deployed in high-speed production lines or delicate assembly processes, this pneumatic gripper offers unmatched reliability and flexibility, ensuring enhanced productivity and consistent quality across various industrial applications.

Features:

• Product Name: Long Stroke Pneumatic Gripper
• Stroke: Long
• Stroke Per Jaw: 75 Mm - 175 Mm
• Max Pressure: 8 Bar
• Repeatability: ±0.01 Mm
• Ideal for use as an Electric Gripper Actuator
• Designed as a Flexible Robot Gripper for versatile applications
• Reliable Electric Gripper Actuator performance for precise handling

Technical Parameters:

Applications:

The Long Stroke Pneumatic Gripper, equipped with 2 parallel jaws, is an essential component in modern automation systems. Its precise repeatability of ±0.01 mm ensures exceptional accuracy, making it ideal for applications where consistent performance is critical. With a jaw height of 30mm and a maximum operating pressure of 8 bar, this gripper is designed to handle a wide range of workpieces, providing a secure and stable grip.

One of the primary application occasions for this Flexible Robot Gripper is in assembly lines where delicate and precise handling of parts is necessary. The parallel jaw type allows for uniform gripping force distribution, which minimizes the risk of damaging sensitive components. This feature is particularly beneficial in electronics manufacturing, where components are often small and require gentle but firm handling.

In addition, the Long Stroke Pneumatic Gripper excels in pick-and-place operations within packaging industries. Its ability to open and close with high repeatability enables rapid and reliable handling of products, improving overall line efficiency. The gripper’s compatibility with a maximum pressure of 8 bar also allows it to adapt to various product sizes and weights, enhancing its versatility in different packaging scenarios.

The gripper is also frequently used in conjunction with Electric Gripper Actuators, combining pneumatic power with electric control for enhanced precision and flexibility. This integration allows for more complex motion control and better adaptability in dynamic production environments. As a Flexible Robot Gripper, it supports a wide range of robotic arms, making it a versatile choice for automated systems that require quick reconfiguration and multi-task capabilities.

Furthermore, in material handling and machine tending applications, this Long Stroke Pneumatic Gripper provides reliable performance by maintaining consistent gripping force under varying operational conditions. Its robust design and precise jaw movement make it suitable for repetitive tasks, reducing downtime and maintenance costs.

Overall, the Long Stroke Pneumatic Gripper is a highly adaptable and reliable solution for industries seeking efficient and accurate gripping mechanisms. Whether integrated with electric gripper actuators or used as a standalone Flexible Robot Gripper, it meets the demands of modern automation by delivering precision, durability, and flexibility across a variety of application scenarios.

FAQ:

Q1: What is the maximum stroke length of the Long Stroke Pneumatic Gripper?

A1: The Long Stroke Pneumatic Gripper offers a maximum stroke length of up to 50mm, allowing it to handle a wide range of workpiece sizes efficiently.

Q2: What type of materials can the gripper handle?

A2: This gripper is designed to handle various materials including metals, plastics, and composites, making it versatile for different industrial applications.

Q3: What operating pressure range does the gripper require?

A3: The recommended operating pressure for the Long Stroke Pneumatic Gripper is between 0.4 and 0.7 MPa (approximately 58 to 101 psi) for optimal performance.

Q4: How is the gripping force adjusted on this pneumatic gripper?

A4: The gripping force can be adjusted by regulating the input air pressure, allowing for precise control to suit delicate or heavy-duty applications.

Q5: Is the Long Stroke Pneumatic Gripper compatible with standard pneumatic systems?

A5: Yes, the gripper is designed to be compatible with most standard pneumatic systems, featuring common port sizes and mounting options for easy integration.
